LTEC-Series Automatic Electronic Tablet Counting Filling Machine With CE Certification
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2012
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Type High Productivity Automatic Capsule Filling Machine Empty Hard Gelatin Pill Capsule FillerNegotiableMOQ: 1 -
DPP-140A Blister Packing MachineNegotiableMOQ: 1
-
DPP-140 BOPP Machine Blister Packaging MachineNegotiableMOQ: 1
-
LTEC-Series Automatic Electronic Capsule Tablet Counting MachineNegotiableMOQ: 1
-
Nice Price Tablet Blister Packaging MachineNegotiableMOQ: 1
Attention:
1.All prices and parameters shown above are automatically generated by the system, if you want to know the exact
information, please click "Contact Supplier" to send mail to us.
information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
LTEC-Series Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, Cod liver oil,etc. This machine adopts 16 sets imported counting sensor for counting with 16 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation control for convenient running.
Feature:
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pill count to bottling;
2.Vibratory cutting drugs do not damage;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
Technical Parameters
Model Name | LTEC-8 | LTEC-16 | LTEC-24 | LTEC-32 | |||
Application | 1. Hard capsules(00-5#)2. Soft Gelatin capsules3. Tablets4. Chewing gums 5. Other solid object under machine range | 1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range | 1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range | 1. Hard capsules(00-5#) 2. Soft Gelatin capsules 3. Tablets 4. Chewing gums 5. Other solid object under machine range | |||
Hopper Volume | 20L | 40L | 45L | 80L | |||
Capacity | 10-20bottles/min | 40-60bottles/min | 40-60bottles/min | 40-120bottles/min | |||
Filling Quantity | 1-9999pcs/bottle (adjustable) | 1-9999pcs/bottle (adjustable) | 1-9999pcs/bottle (adjustable) | 1-9999pcs/bottle (adjustable) | |||
Bottle Size | Diameter: 30-90mm Height:40-250mm | Diameter: 30-75mm Height:40-250mm | Diameter: 30-90mm Height:40-250mm | ||||
Counting Size | Thickness: 3-10mm Diameter: 3-15mm Length: 3-30mm | Thickness: 3-10mm Diameter: 3-15mm Length: 3-25mm | Thickness: 3.5-10mm Diameter: 3.5-15mm Length: 3.5-30mm | ||||
Compressed air | 0.5Mpa | 0.5Mpa | |||||
Conveyor Belt Length | 2400mm | 2400mm | 3000mm | ||||
Machine Weight | 120kg | 650kg | 750kg | 1000kg | |||
Machine Size L × W × H (mm) | 660*1280*780 | 600*2400*1670 | 2000*1600*1680 | 2200*1400*1680 | |||

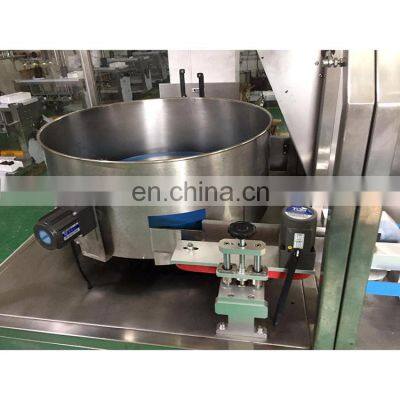

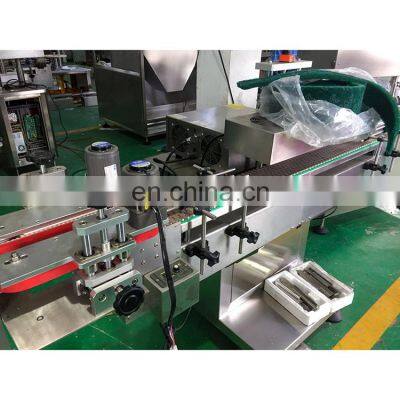

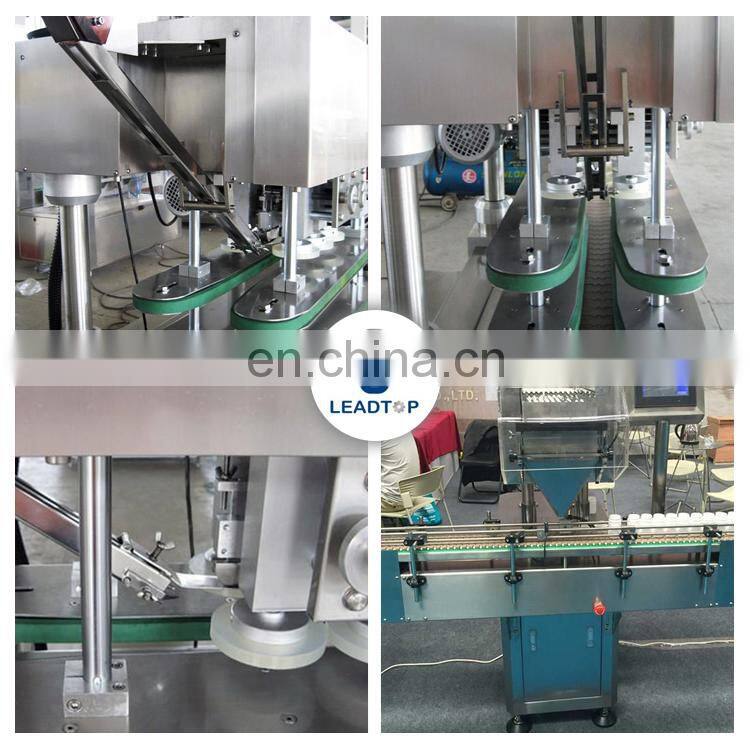

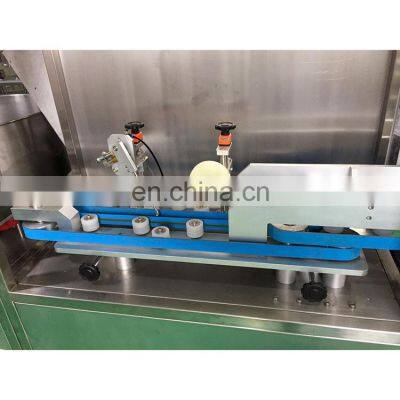

Detailed Images
Final Product
Related Products
Why Choose Us
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange
everything for you!
Any other doubts about our machine, please feel easy to contact with us.
