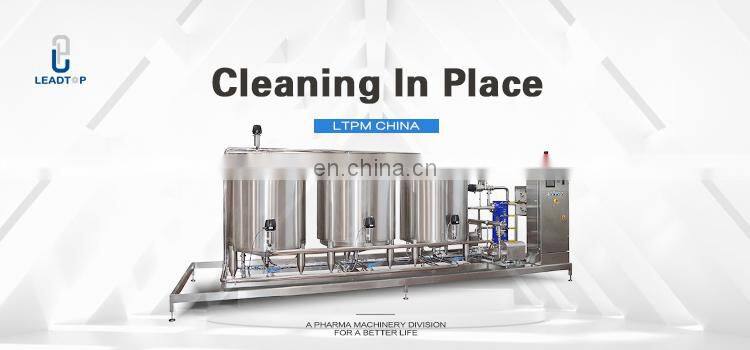

Factory Supply Cip Station Cip System Machine for Medicine Beer Brewing Tanks

Description:

CIP Station is used for closed system in-place cleaning of pipes and vessels,it can also apply to the brewery, beverage plants, pharmaceutical and general food production materials of pipes and equipment cleaning. Normally it contains three tanks, acid liquid tank, alkali liquid tank, water tank separately. It is up to our customer’s requirement.

 A centrifugal pump is used in CIP to convey cleaning liquid into material pipe and equipment, circulate to equipment circularly. Therefore, the equipment utilization can be improved without the disintegration of the equipment and the pipeline, and reduce labor intensity of workers. Therefore, this product is an advanced of cleaning process equipment.

 Using this equipment need a closer cooperation with the workshop, piping arrangement, cleaning head and so on.

This equipment is mainly composed of Acid and alkaline liquid tank, clear water tanks, racks, three - way plug valve, globe valve, and comprised of centrifugal pump.

Unlike semi-automatic CIP system, it uses pneumatic diaphragm pump to automatically control the valves, inside all have digital control connection to all the pipes and whole line machinery, cleaning process controlled by program.

Features:
1. The design layout is reasonable, the equipment is made of imported 2B stainless steel material, the internal surface polishing is ≤ 0.4μm, the external surface is ≤ 0.8μm, and the overall appearance of the equipment is generous;
2. Recycle alkaline water and steam, save energy, meet the cleaning process requirements of various sections, and increase efficiency;
3. The operator only needs to configure the concentrated alkali solution and convert the CIP feed distribution plate for each shift; other tasks can be automatically controlled, manual monitoring is performed, and a touch monitor is provided to display all the system parameters of the intuitive CIP cleaning station and can be Cleaning process to facilitate the modification of parameters;
4. Automatically monitor the concentration of the washing liquid in the tank and automatically add the concentrated washing liquid;
5. Automatic monitoring of tank washing level, automatic water supplement;
6. automatic detection of reflux concentration, automatic selection of reflux or emissions;
7. Automatic control of the temperature of the liquid in the outlet, and the automatic control of the liquid material in the outlet.

Technical Parameters

The above-mentioned data is the standard, for reference only. It can customize according to customer’s requirements.CIP cleaning system selection should provide technology parameter:acid, alkali, tank volume, degree of automation, heating mode, special requirements, etc

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: Will you help with installation and stuff training?

A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?

A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
