Gst-Ii Cooling Patch Coating and Cutting Machine
- 1000 per Month
- T/T Credit Card
Product Description

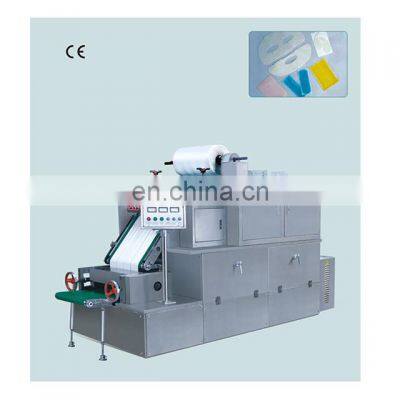

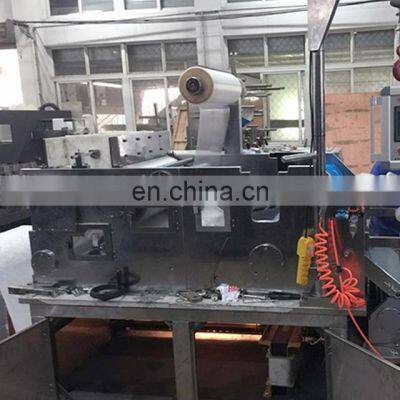

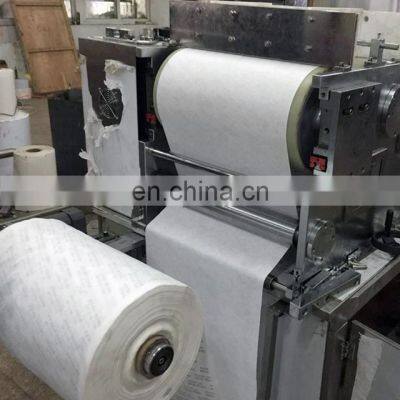

Gst-Ii Cooling Patch Coating and Cutting Machine
Summay:
This Machine Applicable to all non-woven coating, can produce paste and paste paste products, (also can be used for beauty mask paste, rheumatoid paste, eye bags affixed, insect repellent stickers, motion sickness paste, percutaneous drug products Of the coating)
Features:
♣Use of variable frequency stepless speed regulation, counting automatic connection cut off.
♣Slicing size in the effective range can be adjusted.

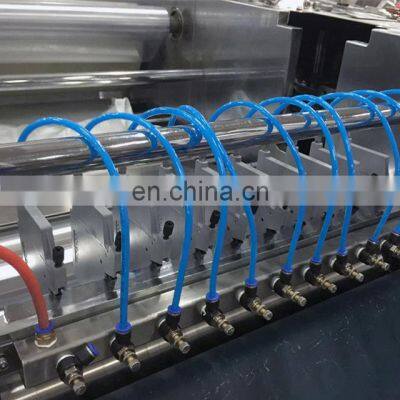

♣Air knife from the separation, one out of two, cutter clearance adjustable easily.
♣Cutter high parking, easy debugging and troubleshooting.
♣Can do 10mm * 10mm following small applicator.

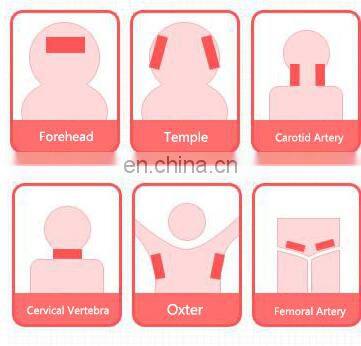

Usage of Gst-Ii Cooling Gel Patches Coating And Cutting Machine

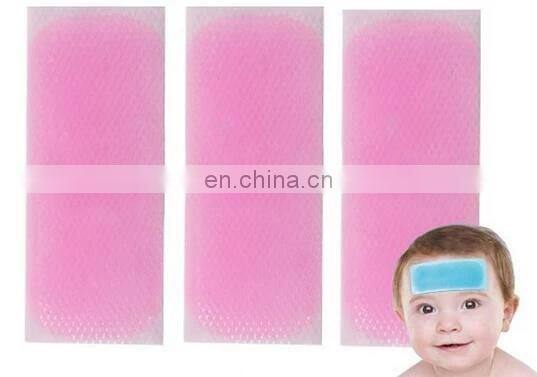

Finish product:
Technical Parameters:
Model | Gst-Ii |
Voltage | 380V |
Total Power | 5.8Kw |
Size | 2580x1200x1800mm(without conveyor) |
Weight | 1580Kg |
Production speed | 0-360pcs/min(based on 50x120mm) |
Coating thickness | 0.5-4mm(adjustable online) |
Advantage:
♣ Electro-optical tracking and positioning, automatic transmission materials.
♣ the substrate release a roller coating a gas knife longitudinal cutting a cross-cutting a pneumatic cross-cutting;
♣Cooling paste and paste the size of paste by the demand side from the set;
♣Cartridge can be loaded 25KG hydrogel;
♣Housing stainless steel, in line with the medical industry health requirements.
For more informations, please contact us by mail or telephone. We offer 24hours service, Your free Capsule Production Consultant!
LTPM CHINA, Your Best Pharmaceutical Production Solution!
1. How do we know the model is suitable for our target capability?
A: Pls tell us how many blister do you want to pack in one hour, what are you going to pack, how many capsule or tablets do you want to pack in one blister, then we will design and choose the most cost-effective packing machine for you.
2. Can I pack two kinds or more of different blister types by one machine?
A: Yes, pls tell us your requests of the blister design, we will design different mould for you to change.
3. What kind of capsule can you pack?
A: we can pack all kinds of capsule, from #000 to #5, no matter what size you want to pack, we can design the machine for you.
4. Is the production speed adjustable?
A: Yes, it is, the machine is equiped with stepless transducer, which can shift the speed by operation on PC panel.
Any other questions, pls feel free to contact us, we will answer your questions 24 hours on line service!
