Home > Products > Thin section bearing JU Series > JU100 XP0 Inch Size Thin Section Sealed Bearings JU Series Type -X 6 Axis Robotic Arm Sealed Bearing Optional : JU100CP0
JU100 XP0 Inch Size Thin Section Sealed Bearings JU Series Type -X 6 Axis Robotic Arm Sealed Bearing Optional : JU100CP0
- Luoyang
- T/T
- 7 days
You May Like
-
JU075XP0 Type-X Sealed Bearing Four Point Contact Inch Standard Bearing JU Series Size 190.5x209.55x12.7mm
-
Thin Section Bearing KC045AR0 Angular Contact Ball Ring 4.5*5.25*0.375 in 114.3*133.35*9.525 mm for Robot Joint
-
KC042AR0 Thin Section Bearing Angular Contact Ball Ring 4.25*5*0.375 in 107.9*127*9.525 mm Constant section thin bearings
-
KC040AR0 Thin Section Bearing Angular Contact Ball Ring 4*4.75*0.375in 101.6*120.65*9.525mm For UAV
-
KA055CP0 Thin Section Bearing Equal Section Thin Bearing Thin Walled Bearing KA055CP0 Robotic Arm Bearing SA055CP0
-
KA042XP0 Ball-Bearings Thin-Section-Bearings-Open-Bearings KA-Series-Type-X-Thin-Section-Bearings KA042XP0
Product Details
| Brand Name | NERT | Model Number | NJU100 XP0 | |
| Outside Diameter | 273.05, | Bore Size | 254, |
Product Description
JU100XP0 Thin section four point contact sealed ball bearing belongs to JU SERIES of thin section sealed ball bearings, the JUSERIES include JUCP0 and JUXP0,which represented : Type-C : Deep Groove bearing and Type-X: Four Point Contact bearing the rolling body of these bearings is a ball, which can be nylon ball or steel ball as requested. The Cross Section is constant, that is 1/2 inch. The ID of JU100XP0 is 10 Inch ( 254 mm).
Parameters:
Bearing Type | Ball | |
For Load Direction | Four Point | |
Construction | Single Row | |
Seal Type | Sealed | |

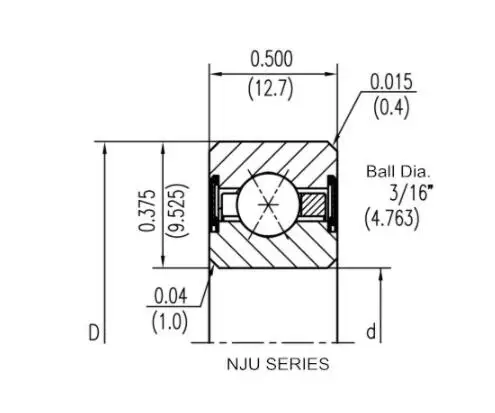

Cross Section | 1/2″ x 3/8″(12.7x12.7mm) | |
Part Number | JU100XP0(NJU100XPO) | |
Bore Dia (d) | 10.000"(254mm) | |
Bore Dia Tolerance | -0.0014"– 0" | |
Outer Dia (D) | 10.750"(273.05mm) | |
Outer Dia Tolerance | -0.0014"– 0" | |
Width (B) | 0.5" | |
Width Tolerance | +.000 –.005" | |
Ring Material | 52100 Chrome steel | |
Ball Material | 52100 Chrome steel | |
Cage Material | Brass | |
Dynamic (lbs) | Radial | 2,364 |
Thrust | 3,930 | |
Moment | 9,201 | |
Static (lbs) | Radial | 4,990 |
Thrust | 12,470 | |
Moment | 25,880 | |
Lubrication | Lubricated | |
Temperature Range | -20° to 180 ℃ | |
ABEC Rating | ABEC-1 | |
Radial Clearance | 0.0000 – 0.0005" | |
Weight (lbs) | 1.310 | |
