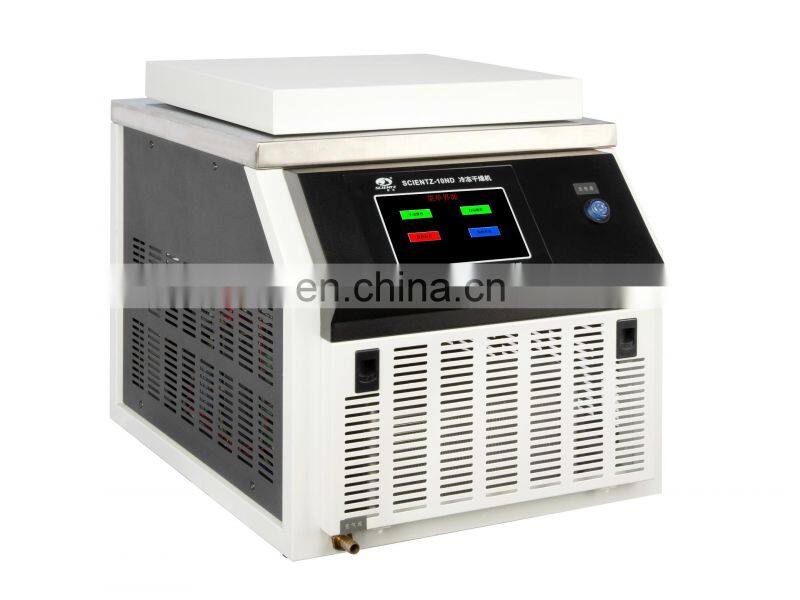

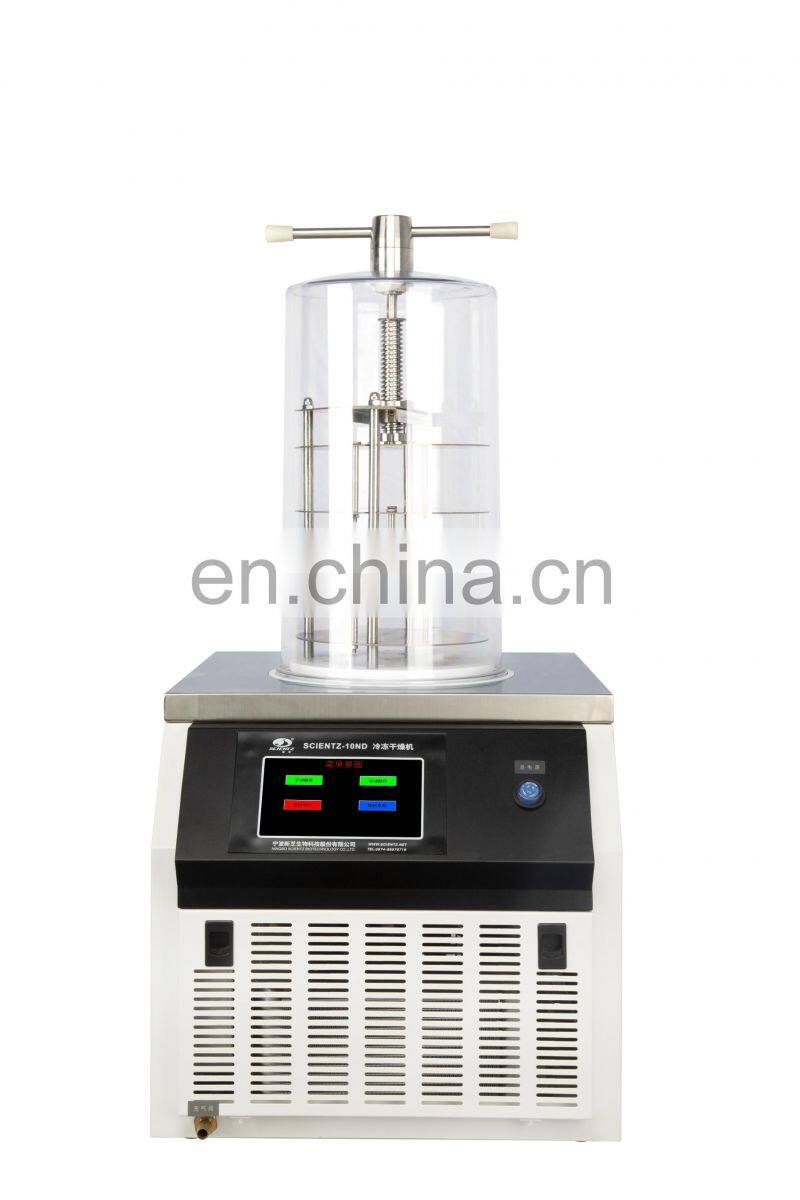

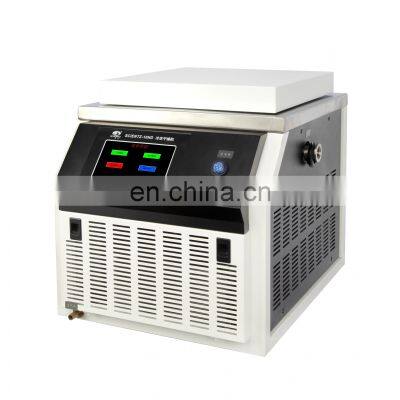

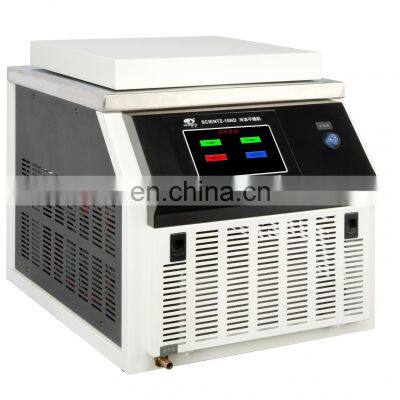

Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > Scientz-10ND Electric Heating Freeze Dryer Lyophilizer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1998
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scientz-30F Easy to Operate In-situ Integrated Lyophilizer Freeze DryerNegotiableMOQ: 1 -
Scientz-F Series Pilot Freeze Dryer Vacuum LyophilizerNegotiableMOQ: 1
-
Scientz-12N Freeze Dryer for LabNegotiableMOQ: 1
-
Vacuum Industrial Freeze Dryer for Lab Vacuum Drying Equipment Food Processing Automatic SCIENTZ CE ISO CN;ZHE 1000w 105KG 50NegotiableMOQ: 1
-
Scientz-N Series Multi-Manifold Freeze DryerNegotiableMOQ: 1
Product Description
Specification
Model | Scientz-10ND | |||||||||
Type | Ordinary | Top press | Multi manifold | Top press multi manifold | ||||||
Dry erea(m2) | 0.12 | 0.08 | 0.12 | 0.08 | ||||||
Ability to capture water(kg/batch) | 3 | |||||||||
Quantity of vials | Φ12mm | 920 | 560 | 920 | 560 | |||||
Φ16mm | 480 | 285 | 480 | 285 | ||||||
Φ22mm | 260 | 165 | 260 | 165 | ||||||
Number of eggplant bottles | / | / | 8 | 8 | ||||||
Plate load capacity(L) | 1.5 | 1 | 1.5 | 1 | ||||||
Plate size(mm) | Φ200 | Φ180 | Φ200 | Φ180 | ||||||
Plate distance(mm) | 70 | |||||||||
Plate quantity | 4 | 3 | 4 | 3 | ||||||
Cold trap size(mm) | Φ250×150 | |||||||||
Lowest temperature of cold trap (℃) | ≤-56(no load) | |||||||||
Limit vacuum degree (Pa) | ≤5(no load) | |||||||||
Power kW (220V50Hz) | 1.11 | 1.07 | 1.11 | 1.07 | ||||||
Ambient temperature (℃) | ≤25 | |||||||||
Dimensions(mm) | L590×W460×H400+440 | |||||||||
Note:The overall size and weight do not include external vacuum pump, and the overall height of B / D lyophilizer does not includemanual gland handle (the increased height is about 70mm) | ||||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1.Are you factory or trading company?
We are a factory
Q2.What is your principle for the samples?
We do not provide free sample.
Q3.Which payment can be acceptable?
We could accept the payment by T/T、Paypal etc
Q4.How about your delivery me?
Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
We could provide Online instruction;Real-time support by call or voice-chat
During warranty time,we can send product accessories when you need for free.
Technical guidance is free and ready forever
Q6.Training
Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(insta
llation、training、debugging、maintenance);
Products can be customized according to your requirements;OEM service available with customers' brand
