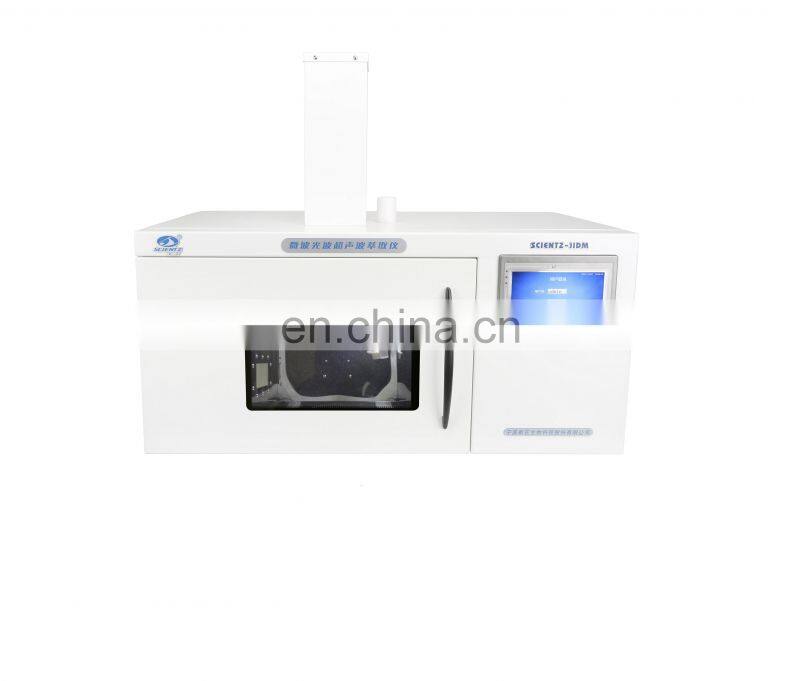

Microwave Light Wave Ultrasonic Extractor

Microwave Light Wave Ultrasonic Extractor thumbnail-1
Microwave Light Wave Ultrasonic Extractor photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1998
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Ningbo Scientz Biotechnology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Microwave light wave ultrasonic extractor is a comprehensive laboratory instrument, which can arbitrarily select multiple combination modes of microwave, ultrasonic, light wave, ultraviolet and magnetic stirring, so as to truly realize one machine with multiple functions. It is the best choice to study the methods and mechanisms of chemical reaction, chemical synthesis, material preparation and analytical chemical sample pretreatment. It is widely used in Colleges and universities and scientific research institutions.
Specification
Model
SCIENTZ-IIDM
Microwave power
1000W（1%-100%）
Microwave frequency
2450 MHz
Working hours
0-999S
Microwave action mode
Pulse continuous heating
Light wave power / wavelength
0-800w / infrared section
Working hours
0-999
UV power / wavelength
50W/365nm
Diameter of ultrasonic horn
Φ 8mm
Ultrasonic power / frequency
10-1000W/20-25 KHz
Ultrasonic action mode
The immersion ultrasonic transducer is in direct contact with the materials in the container, and the acoustic vibration (energy) efficiency is close to 100%
Magnetic stirring
50-300 rpm
Program control
200 groups of programs can be preset, and each program can preset time (0-999S), microwave, light wave, ultrasonic power, ultraviolet (on / off), stirring and other control working parameters, which can be stored by computer and can be directly set,modified and called
Temperature control
Non contact infrared temperature measurement. Temperature and temperature control range, room temperature ~ 300 ℃ (± 1 ℃)
Whole machine control
Full Chinese true color touch screen man-machine interface, industrial microcomputer PLC programmable controller
Password
Secondary password of user and administrator
Reflection monitor
Integrated screen with real-time video window to monitor sample reaction status
LED lighting power / color temperature
24W/6200K
Network interface
RJ45
Sample volume
Standard configuration 500, 1000ml (special specifications can be customized according to user requirements)
Protection
With multiple safety interlock protection devices such as magnetron temperature protection and door switch protection, it has high
reliability and safety
Material
The stainless steel inner shell is durable
Furnace cavity volume
25L
Power supply:
220V/110V, 50HZ/60HZ, 3000W
Microwave leakage complies with national standards
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Ningbo Scientz Biotechnology Co., Ltd. (stock code: 430685) was founded in 1989. The company is headquartered in the National High-tech Zone of Ningbo City. It is a world-renowned provider of biological sample processing equipment and a pioneer in the application of ultrasonic technology in China. Xinzhi Bio is a high-tech enterprise that provides related scientific instruments for scientific research, education, biomedicine, agriculture and forestry, environmental protection, petroleum, new materials and other fields.
FAQ
Q1.Are you factory or trading company?
We are a factory
Q2.What is your principle for the samples?
We do not provide free sample.
Q3.Which payment can be acceptable?
We could accept the payment by T/T、Paypal etc
Q4.How about your delivery me?
Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
We could provide Online instruction;Real-time support by call or voice-chat During warranty time,we can send product
accessories when you need for free. Technical guidance is free and ready forever
Q6.Training
Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(insta
llation、training、debugging、maintenance); Products can be customized according to your requirements;OEM service available with customers' brand
