Industry Used Vacuum Fryer

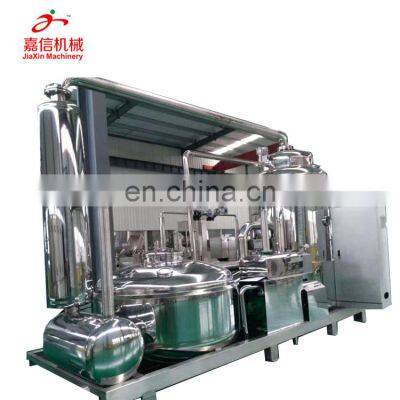

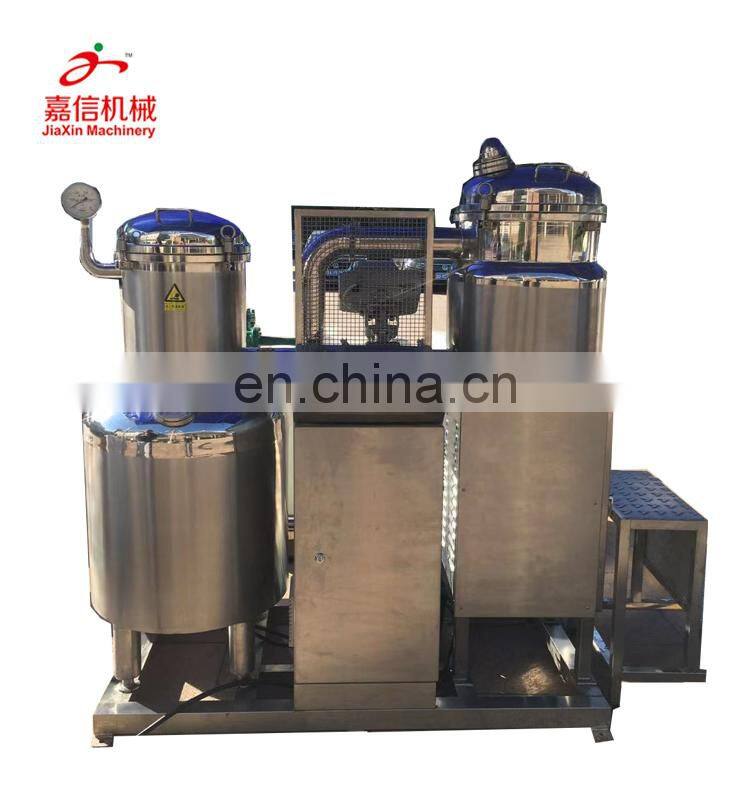

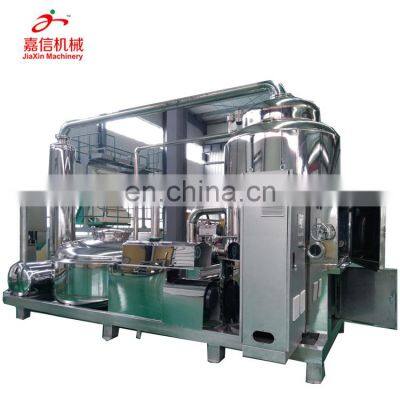

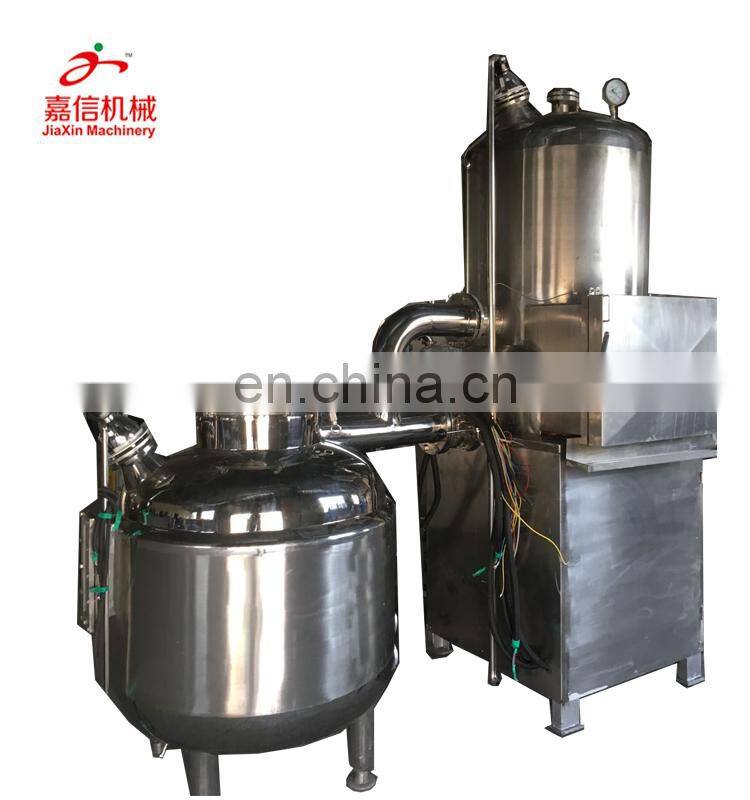

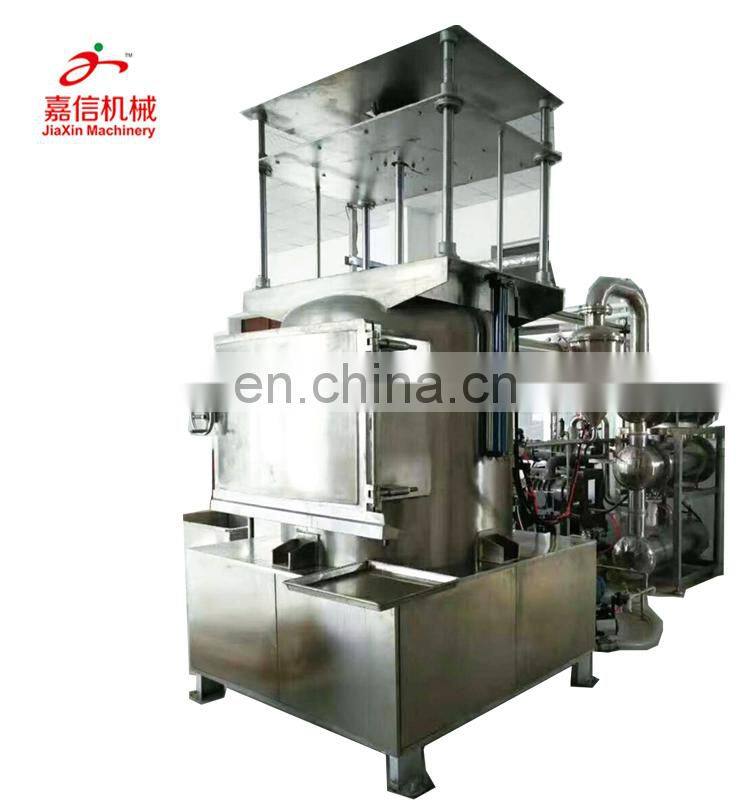

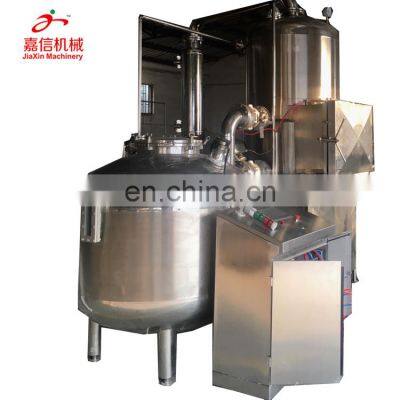

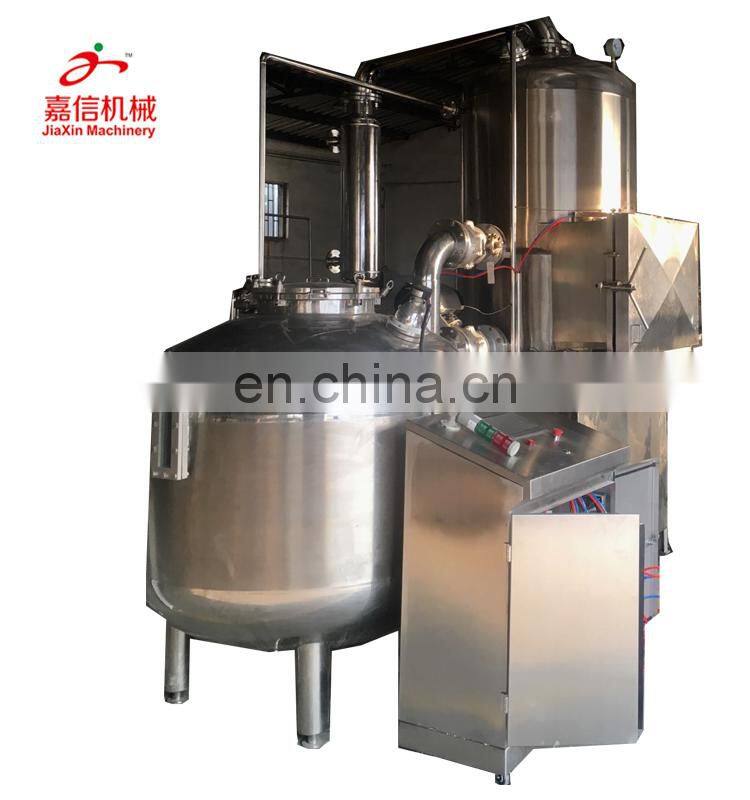

Vacuum fryer

 Equipment Introduction

Heating, frying, oil storage, deoiling, dehydration, oil filtration integrated design, continuous completion under vacuum, low oil content, product in a vacuum state, food processing under this condition of relative oxygen deficiency, can Reduce or even avoid the harm caused by oxidation (such as fatty acid rot, enzymatic browning and other oxidative deterioration). In the negative pressure state, with oil as the heat transfer medium, the moisture inside the food (free water and partially bound water) will evaporate rapidly and eject, making the structure loose and porous.

Characteristics of Vacuum flash food

1. Automatically control the temperature and pressure(Vacuum degree), Non overheat, over-pressure, make sure the product quality and safe productivity.

2. Using frequency control de-oil mode, suitable for both low and high oil content products.

3. Oil and water separate system can separate the oil and water which is evaporated, reduce the water recycle pollution, increase the water reuse rate, reduce the oil consumption.

4. Oil filter system: Up and down oil tank, double room heating system, individual control heating, filtering the oil when frying to maintain the oil cleanness and reduce oil waste.

5. This machine is made of 304 stainless steel with the characteristics of high efficiency, stable function, easy installation.

6. One key operation, press the START button, close frying tank---add oil----Vacuum----heat oil--- automatic temperature control frying(The material cage is in low speed rotation while frying process, the material is stirred in the cage and evenly frying)----De-oil(In vacuum state, frequency E-motor is rotating in high speed)---Open frying tank to take out the material(Finish one frying cycle)

7. Electricity system: Control system Brand is Mitsubishi, Japan which is stable. Control system contain frying, vacuumize, primary filter, in and out oil, de-oil, open cover etc. These functions are automatically controlled. And in Chinese/English language display. Stable function, easy operation, Touch screen can adjust the working time according to the material. Interface is visual and operation is easy.Control system contains: PLC main body, frequency changer, temperature module expand, Touch screen, switch, button, isolation transformer, air switch, contactor, heat relay, UK terminal, wire, middle relay, breaker. PLC and frequency controller are famous brand, low voltage electric components are using Schneider and CHINT brand.

Parameters

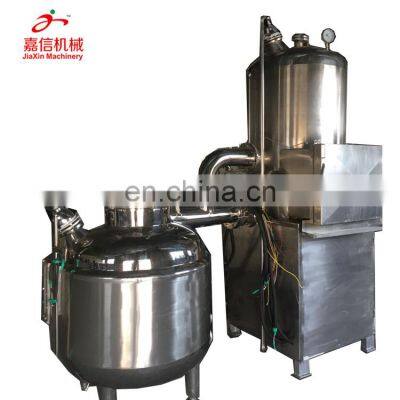

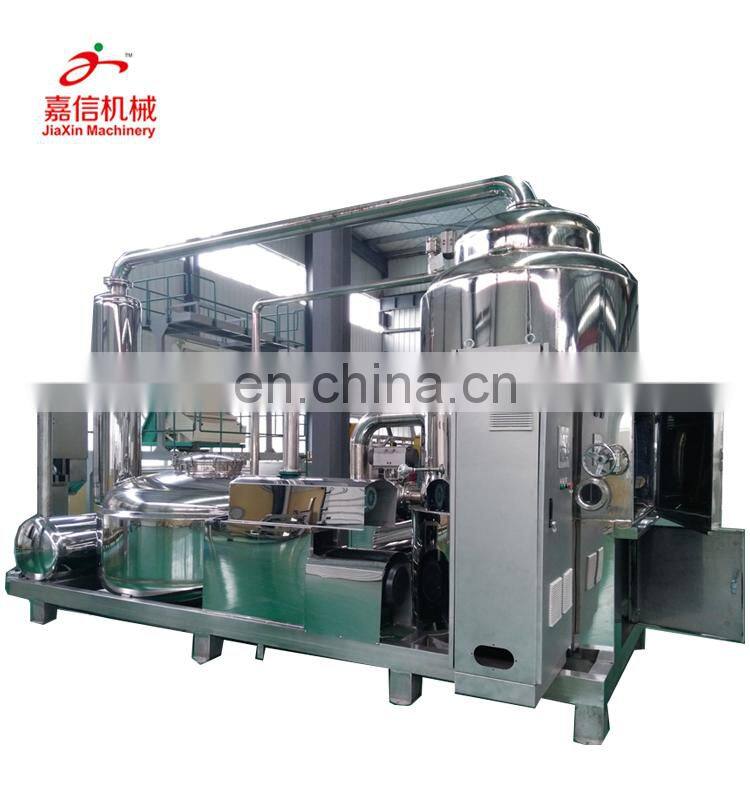

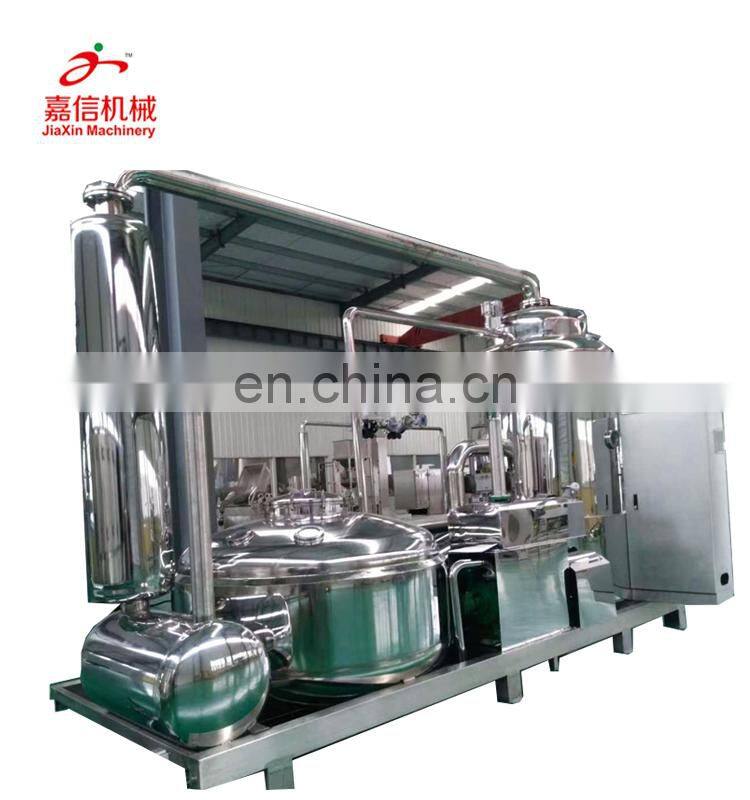

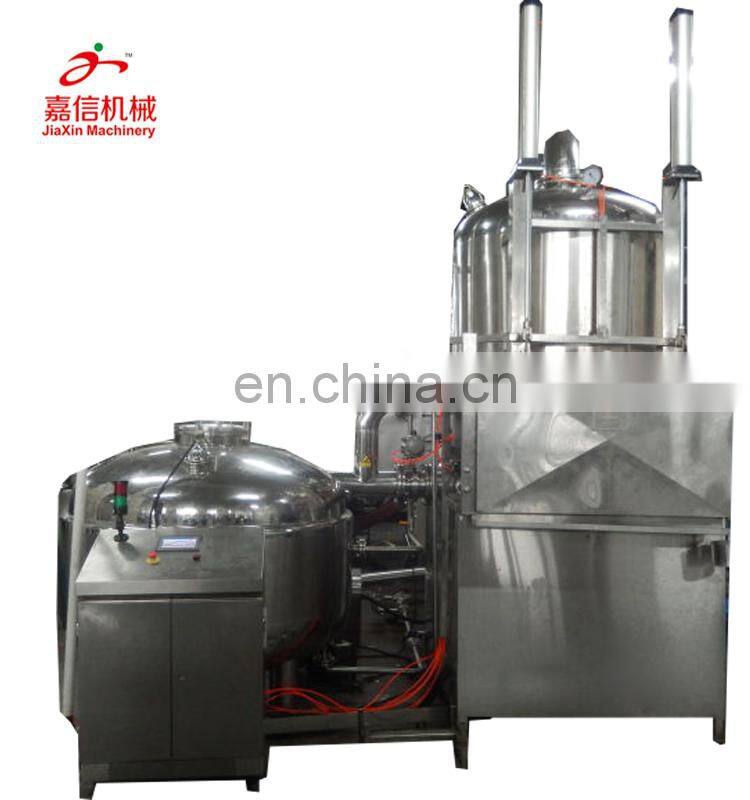

 Machine Details

We can try our best to provide you the good services as below:

1.Offer the most professional design or detail plan.
2.Expert engineers install for you overseas.
3.Free to amend and change the parts in two years.
4.Free technical guidance from our professional technical team.
5.Provide kinds of certificates.
6.Provide refrigeration system if necessary.

Company Profile

Shandong Jiaxin Industrial Equipment Co., Ltd. is located in Zhucheng City, Shandong Province, mainly producing food machinery. Specialized in research&development Flexible packing bags pasteurization cooling  stoving line, Tunnel type sterilizing&drying line for bottled products, Multi functional vegetable cleaning machine, Central kitchen equipment, Imitation German horizontal vortex spiral washing machine, Strong air drying machine, Clean vegetable processing line, Canned fish deep processing line, Fruit and vegetable crisp deep processing lines, Mushroom paste processing lines, Brush washing machine, High pressure air bubble washing machine for various kinds of fruits, date, root vegetables, seafood, Multi-layer stoving machine, Air drying line, Defrost washing and pre-cooking line for instant frozen food, Halide products cleaning line, bottled products cleaning line, Flexible packing bags cleaning line, Vibrating sieve, Various kinds of turnover box washing machine and other stainless steel auxiliary equipment.

     Our products are well sold both in domestic and abroad market. By now we have various kinds of machinery producing equipment, can meet different customers’ requirements. We have passed ISO9001 and CE certification. We have  more than 30 patents and self-managerial import&export authority. We can also design, customize&install project on the spot. To adapt the development and market need, we establish a top-ranking modern production base and sales network covered global market. Our products are exported to The United States, Britain, Australia, Malaysia, Indonesia, Japan, South Korea, North Korea, Bangladesh, Russia, India, Africa, Europe, Southeast Asia and other countries.
