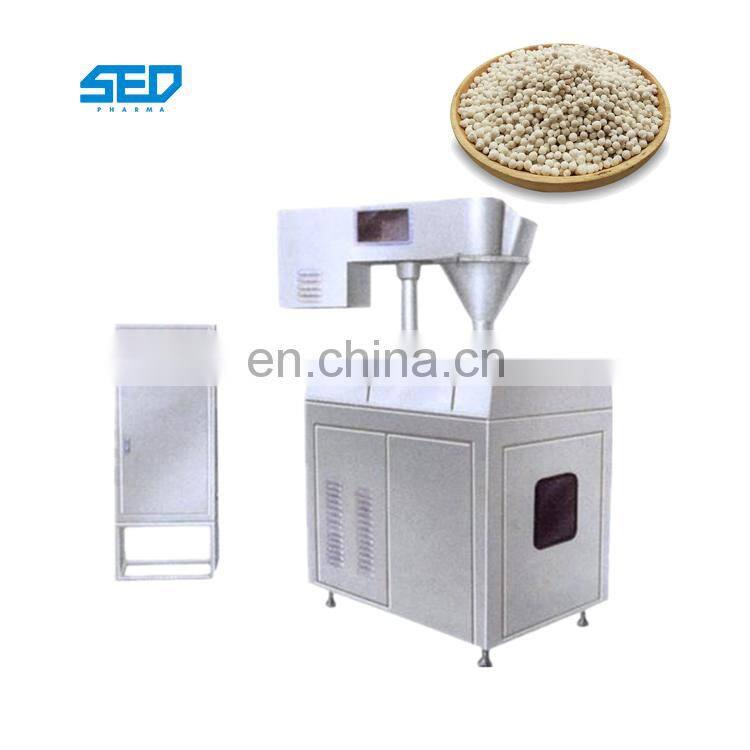

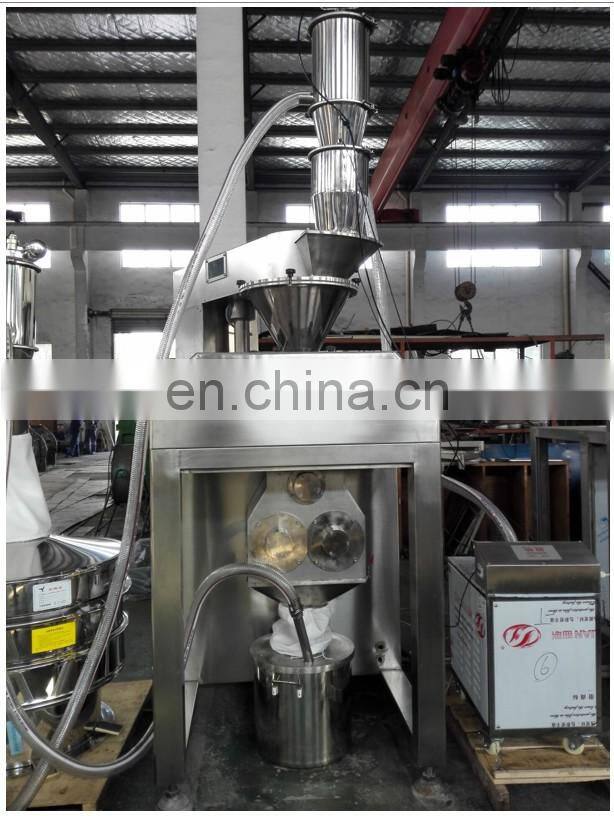

6-60 rpm Feeding Speed Dry Type Powder Roll Compactor Granulator Pelletizer Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Multi-functional PET Plastic Granules Organic Fertilizer Granules Making Machine
-
High Capacity 80-200 kg / h Dry Leaves Powder Roller Granulator Machine
-
2-20 Roll Speed Dry Type Pharmaceutical Powder Granulator Equipment
-
Multi-functional Wet Type Wax Fertilizer Animal Feed Granulator Making Machine
-
Automatic Wet Type Animal Feed Granule Making Organic Fertilizer Granulation Granulator Machine
-
Wide Range of Application Fertilizer Calcium Carbonate Granulator Compost Granule Making Machine
Product Description
Recommend Products
Products Description
This is a new equipment to make granules directly from the target material using the crystal water in the material. The finished granules can be made to troches or capsules. It adopts the electromagnetic timing and features the simple structure, stable capability, easy cleaning, convenient maintenance.
Model | SED-10GZ-H | SED-60GZ-H | SED-80GZ-H | SED-100GZ-H | SED-200GZ-H | ||||
Capacity（Kg/h） | 2-10 | 20-60 | 30-80 | 50-100 | 80-200 | ||||
Roll size(mm) | 200×25 | 200×80 | 200×100 | 200×120 | 250×200 | ||||
Roll Max Pressure（T） | 5×2 | 10×2 | 10×2 | 15×2 | 25×2 | ||||
Roll speed(rpm) | 2-20（adjustable） | 2-20（adjustable） | 2-20（adjustable） | 2-20（adjustable） | 2-20（adjustable） | ||||
Feeding speed(rpm) | 6-60（adjustable） | 6-60（adjustable） | 6-60（adjustable） | 6-60（adjustable） | 6-60（adjustable） | ||||
Roll Drive Motor（Kw） | 4 | 4 | 7.5 | 11 | 15 | ||||
Max working pressure of hydraulic (Mpa) | 10 | 20 | 25 | 30 | 50 | ||||
Roller And Feed Speed Regulation Type | Electromagnetic speed/variable frequency speed control | Electromagnetic speed/variable frequency speed control | Electromagnetic speed/variable frequency speed control | Electromagnetic speed/variable frequency speed control | Electromagnetic speed/variable frequency speed control | ||||
Weight(kg) | 300 | 1300 | 1300 | 1300 | 1500 | ||||
Size(mm) | 800*700*1200 | 1800*1200*2100 | 1800*1200*2100 | 1800*1200*2100 | 2500*2200*2700 | ||||

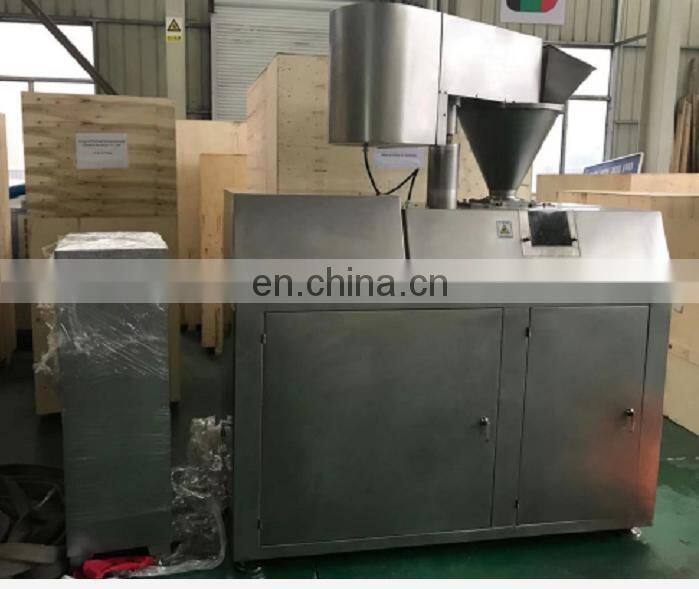

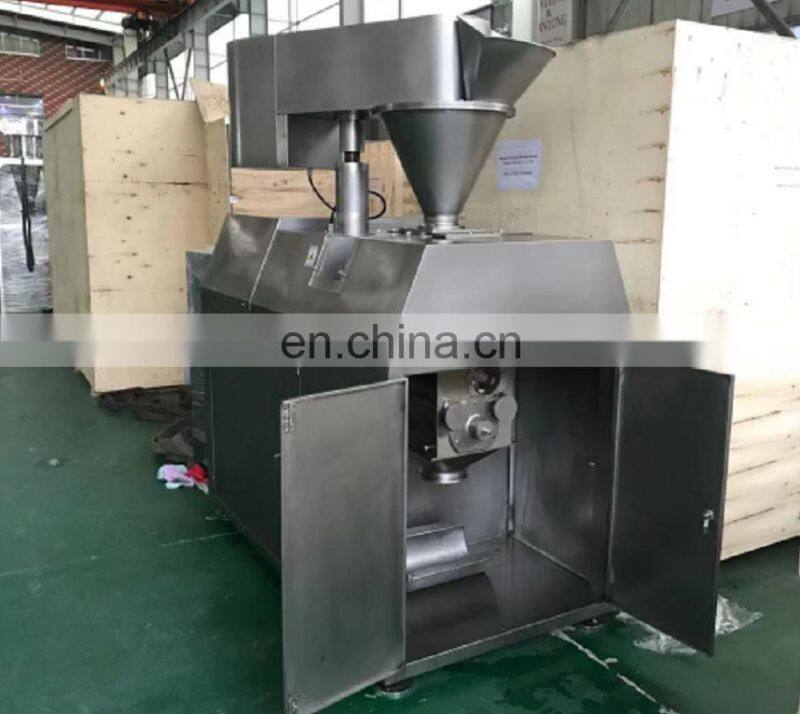

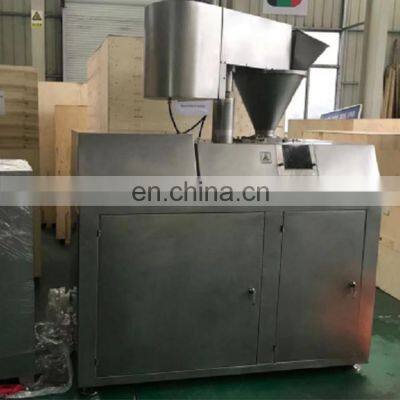

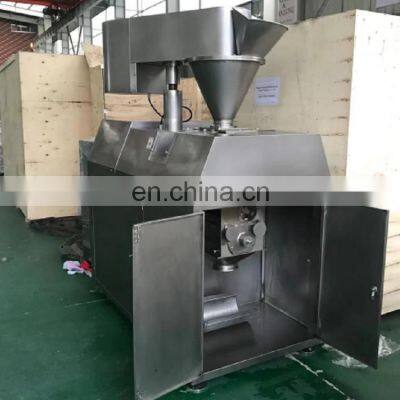

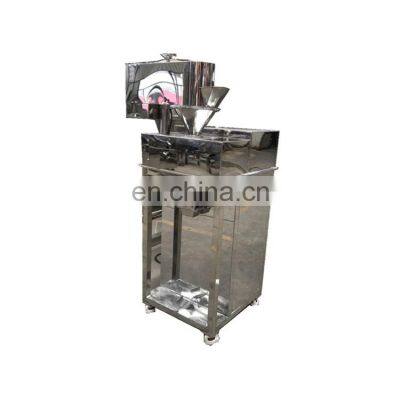

Product Details
Main Application
Medicine: pellet granule, capsule filling granule;
Food: food manufacturing particles, seasoning particles, etc.
Plastic: all kinds of plastic molding particles;
Chemical: catalyst, pigment, detergent and other particles.
The mechanism of the particles can be compressed agent, do granules, capsules, etc. The machine is mainly used in pharmaceutical, food, chemical and other industries. The method is especially suitable for granulating materials which can not be solved by wet process.
Food: food manufacturing particles, seasoning particles, etc.
Plastic: all kinds of plastic molding particles;
Chemical: catalyst, pigment, detergent and other particles.
The mechanism of the particles can be compressed agent, do granules, capsules, etc. The machine is mainly used in pharmaceutical, food, chemical and other industries. The method is especially suitable for granulating materials which can not be solved by wet process.
