100A 12V 24V 36V Power Contactor Single Pole
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- 100A 200A DC Power Contactor 48V 72V
- Hot Sales 100A 400A Dc Magnetic Contactor 24V 220V
- 12V 24V 36V 48V 72V 110V 220V 1 Normally Closed DC Types Of Contactor
- ZJQ636 36V 300A DC Power Contactor
- 12V 50A DC Power Contactor for Industrial Use
- General Magnetic Double Pole Normal Open 200A Dc Contactor 48V
Product Description
Product Description
Overview

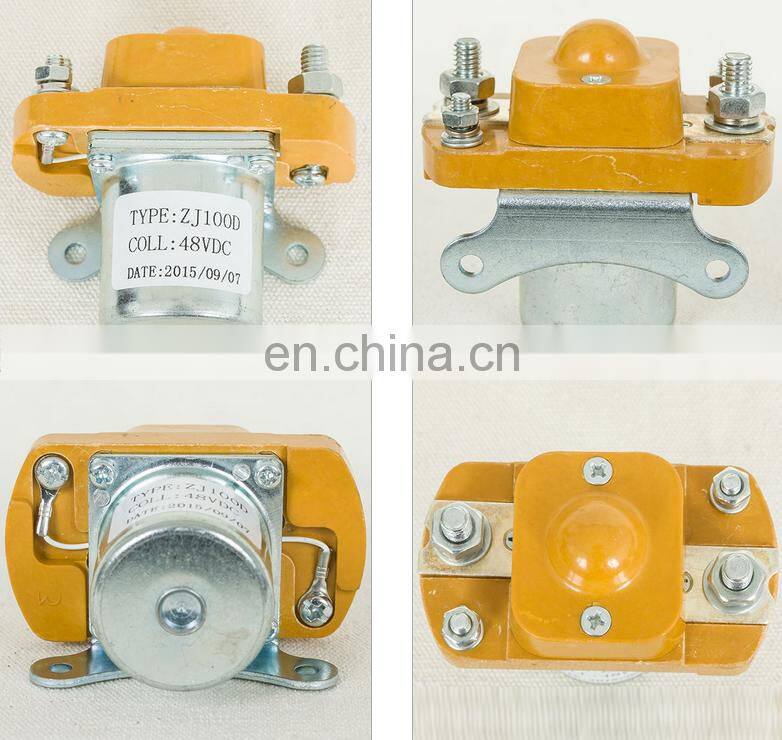

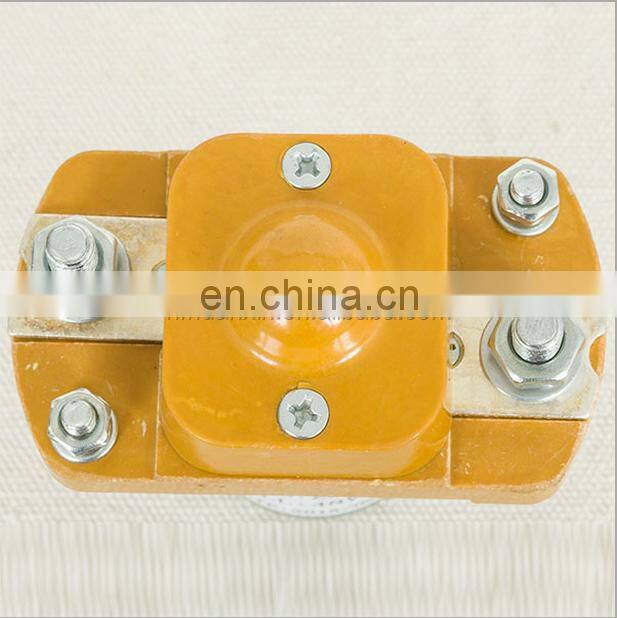

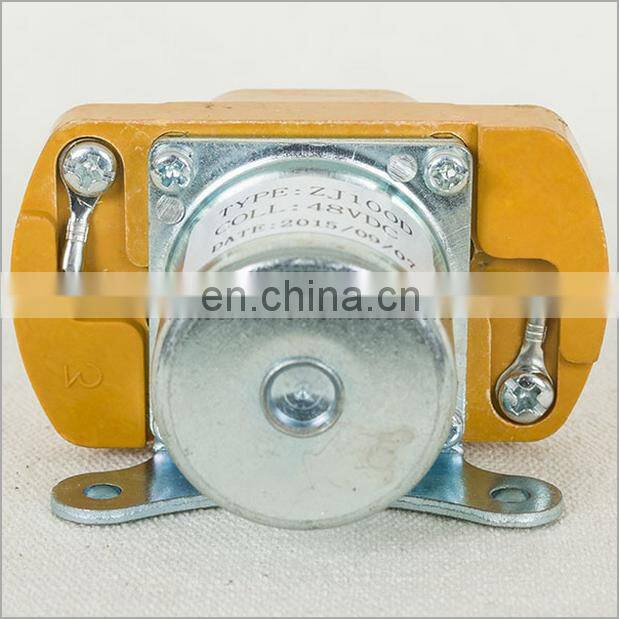

ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current
loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker,
golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing
and have excellent conductivity.
* Main rated load current of contact circuit (amps): 100A
* Dielectric (volt) strength: 50Hz 1000V AC 1min
* Current volt drop of main contact at 100A: Not above 80mV
* Dimensions (LxWxH ): 54x42.5x64 mm
* Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
* Continual working duration: 8h
* Mechanical life: 100,000 times
* Electric life: 2,000,000 times
Specifications:
* Model: ZJ100D
* Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
* Ambient temperature:-25~+40℃
* Altitude range:0~2000m
* Max.relative humidity: 90% at 25℃
* Installation method:vetically or horizontally
* Voltage fluctuating:0.7~1.1Ue
ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current
loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker,
golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing
and have excellent conductivity.
* Main rated load current of contact circuit (amps): 100A
* Dielectric (volt) strength: 50Hz 1000V AC 1min
* Current volt drop of main contact at 100A: Not above 80mV
* Dimensions (LxWxH ): 54x42.5x64 mm
* Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
* Continual working duration: 8h
* Mechanical life: 100,000 times
* Electric life: 2,000,000 times
Specifications:
* Model: ZJ100D
* Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
* Ambient temperature:-25~+40℃
* Altitude range:0~2000m
* Max.relative humidity: 90% at 25℃
* Installation method:vetically or horizontally
* Voltage fluctuating:0.7~1.1Ue
Related products
Our Company
Technical Parameter
Model Number | ZJ100D | Max.relative humidity | 90% at 25℃ |
Voltage Options (Volts) | 12V, 24V, 36V, 48V or 72V. | Installation method | vetically or horizontally |
Ambient temperature | -25~+40℃ | Voltage fluctuating | 0.7~1.1Ue |
Altitude range | 0~2000m | Qality | Excellent |
