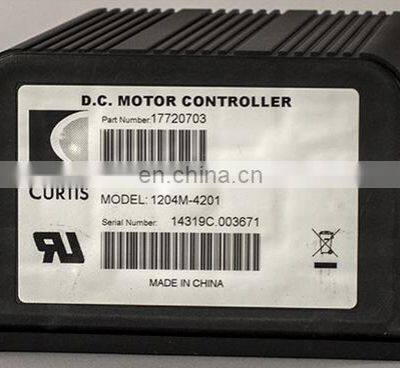

Curtis EV Conversion Kit With Curtis Controller 1204M-4201 for Golf Cart
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1232E-2121 Speed Curtis Programmable AC Motor Controller For Golf Carts
-
1238E-6521 CURTIS AC Motor Controller 550A Controller 48V 60V 72V
-
1204M-4201 24V / 36V - 275A for Electric Cart
-
CURTIS DC Series Motor Controller 1204M-5203 36V / 48V - 275A
-
72V CURTIS Controller 1238E-6521 Controller 450A
-
Curtis 1266 DC Motor Controller 48v Club Car TXT Golf Cart Parts
Product Description
Product Description
1204M-4201 is a controller with "24V Working Voltage" option in the "1204M/1205M Series" of CURTIS, ideal for replacing an old
CURTIS 1204 controller (1204-004, 1204-036 or other 1204 controllers). With the original controller model number provided by the
buyer, the seller could identify more detailed information like "voltage", "current" and "throttle type". Then the controller will
be programmed to the same setting as the original one of the buyer.
We supply also the 1204M-4201 controller assemblage with throttle (foot pedal).
Overview:
CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed
and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being
programmable—via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be
tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic
and test capability.
CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks,
personnel carriers, material handing vehicles, golf cars, etc.
CURTIS 1204 controller (1204-004, 1204-036 or other 1204 controllers). With the original controller model number provided by the
buyer, the seller could identify more detailed information like "voltage", "current" and "throttle type". Then the controller will
be programmed to the same setting as the original one of the buyer.
We supply also the 1204M-4201 controller assemblage with throttle (foot pedal).
Overview:
CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed
and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being
programmable—via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be
tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic
and test capability.
CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks,
personnel carriers, material handing vehicles, golf cars, etc.
Wiring Diagram:
By default, the J5 terminal of new 1204M controllers is not activated. The controller wiring is same to the old 1204M controllers
without J5 terminal.
By default, the J5 terminal of new 1204M controllers is not activated. The controller wiring is same to the old 1204M controllers
without J5 terminal.
Product Paramenters
Key Features
* CURTIS Model: 1204M-4201
* Norminal Battery Voltage (Volts): 36V (default setting) or 24V
* 2 Minute Current Rating (amps): 275
* 5 Minute Current Rating (amps): 200
* 1 Hour Current Rating (amps): 125
* Plug Braking (A2 Busbar): Yes
* PWM operating frequency: 15.6 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input current (no contactors engaged): * 70 mA without programmer
* 130 mA with programmer
* Logic input current: < 2 mA
* Status LED output current (max.): < 2 mA
* Ten throttle types can be used with these controllers: * Type 0: 2-wire potentiometer, 0–5kΩ
* Type 1: 2-wire potentiometer, 5kΩ–0
* Type 2: single-ended 0–5V input
* Type 3: 2-wire potentiometer, 4.6kΩ–0
* Type 4: 2-wire potentiometer, 5.5kΩ–0
* Type 5: 2-wire potentiometer, 1kΩ–0
* Type 6: ITS input
* Type 7: single-ended 6.3–10.6 V input
* Type 8: single-ended 6–12 V input
* Type 9: single-ended 3-wire potentiometer, 0–5kΩ
* Operating ambient temperature range: -40°C to 50°C
* Storage ambient temperature range: -40°C to 85°C
* Dimensions: L173xW146xH77 mm
* Net Weight: 2.3 kg
* Package environmental rating: ISTA 2A; electronics sealed to IP54
* Regulatory compliance: EN 12895 and EN 61000
Features include:
* High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
* Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
* Compatible with either a two-wire potentiometer or a voltage throttle.
* Throttle fault protection circuitry disables controller if throttle wires become open.
* High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
* Plug braking diode internal to controller.
* Thermal protection and compensation circuit provides constant current limit over operating range and during under/over
temperature cutback; no sudden loss of power under any thermal conditions.
* Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
* CURTIS Model: 1204M-4201
* Norminal Battery Voltage (Volts): 36V (default setting) or 24V
* 2 Minute Current Rating (amps): 275
* 5 Minute Current Rating (amps): 200
* 1 Hour Current Rating (amps): 125
* Plug Braking (A2 Busbar): Yes
* PWM operating frequency: 15.6 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input current (no contactors engaged): * 70 mA without programmer
* 130 mA with programmer
* Logic input current: < 2 mA
* Status LED output current (max.): < 2 mA
* Ten throttle types can be used with these controllers: * Type 0: 2-wire potentiometer, 0–5kΩ
* Type 1: 2-wire potentiometer, 5kΩ–0
* Type 2: single-ended 0–5V input
* Type 3: 2-wire potentiometer, 4.6kΩ–0
* Type 4: 2-wire potentiometer, 5.5kΩ–0
* Type 5: 2-wire potentiometer, 1kΩ–0
* Type 6: ITS input
* Type 7: single-ended 6.3–10.6 V input
* Type 8: single-ended 6–12 V input
* Type 9: single-ended 3-wire potentiometer, 0–5kΩ
* Operating ambient temperature range: -40°C to 50°C
* Storage ambient temperature range: -40°C to 85°C
* Dimensions: L173xW146xH77 mm
* Net Weight: 2.3 kg
* Package environmental rating: ISTA 2A; electronics sealed to IP54
* Regulatory compliance: EN 12895 and EN 61000
Features include:
* High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
* Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
* Compatible with either a two-wire potentiometer or a voltage throttle.
* Throttle fault protection circuitry disables controller if throttle wires become open.
* High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
* Plug braking diode internal to controller.
* Thermal protection and compensation circuit provides constant current limit over operating range and during under/over
temperature cutback; no sudden loss of power under any thermal conditions.
* Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
