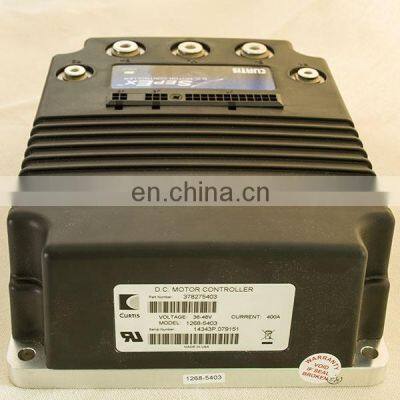

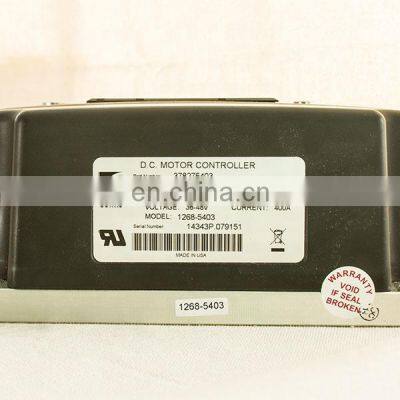

Curtis 1268-5403 Motor Controller 400A for Lvtong Golf Cart
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
36v 48v Electric Cart Conversion Kits Electric Vehicle Main Parts Curtis 1268-5403 Motor Controller
-
Programmable DC Series Motor Controller for Lvtong Buggy 36-48V 325A 124m-5305
-
PMC P125M-5603 DC DC Series Controller Compatible With Curtis 500A 36-48V 1205M-5603
-
Back Horn 12-80v
-
1510-5201 Curtis Controller for DS Club Car
-
Curtis Controller 1266R-5351 Bldc Motor Controller Club Car Controller
Product Description
Product Description
Overview:
CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These
programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts,
personnel transports, burden carriers, and other utility vehicles.
The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows
superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning.
A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor
reversing and regenerative braking power without additional relays or contactors.
CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These
programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts,
personnel transports, burden carriers, and other utility vehicles.
The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows
superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning.
A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor
reversing and regenerative braking power without additional relays or contactors.
Product Paramenters
Key Features:
* CURTIS Model: 1268-5403
* Norminal Battery Voltage (Volts): 48V (default setting) or 36V
* Amature 2 minute current rating (amps): 400
* Field 2 minute current rating (amps): 50
* Logic enable and logic power input voltage (minimum): 16.8 V
* Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
* Logic input voltage: 20.0 V High; 7.5 V Low
* Logic input current 10 mA
* Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
* Dimensions: L229xW178xH81 mm
* Net Weight: 3.9 kg
* Package environmental rating: IP64, IP67
Specifications:
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input voltage (minimum): 16.8 V
* KSI input current (typical): 160 mA without programmer; 200 mA with programmer
* Ambient operating temperature range: -40°C to 50°C
* Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
* Heatsink undertemperature cutback: 50% armature current at -25°C

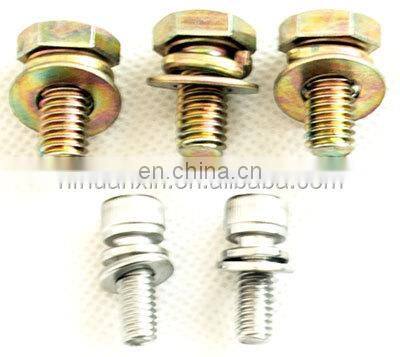

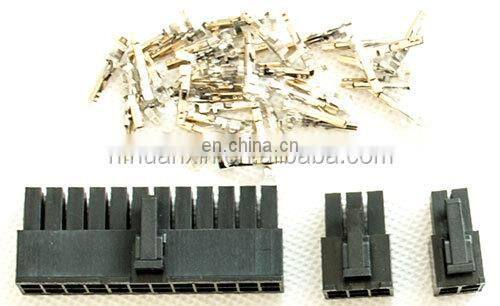

Terminal installation kit & mating connectors:
* CURTIS Model: 1268-5403
* Norminal Battery Voltage (Volts): 48V (default setting) or 36V
* Amature 2 minute current rating (amps): 400
* Field 2 minute current rating (amps): 50
* Logic enable and logic power input voltage (minimum): 16.8 V
* Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
* Logic input voltage: 20.0 V High; 7.5 V Low
* Logic input current 10 mA
* Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
* Dimensions: L229xW178xH81 mm
* Net Weight: 3.9 kg
* Package environmental rating: IP64, IP67
Specifications:
* PWM operating frequency: 16 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* KSI input voltage (minimum): 16.8 V
* KSI input current (typical): 160 mA without programmer; 200 mA with programmer
* Ambient operating temperature range: -40°C to 50°C
* Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
* Heatsink undertemperature cutback: 50% armature current at -25°C
Terminal installation kit & mating connectors:
