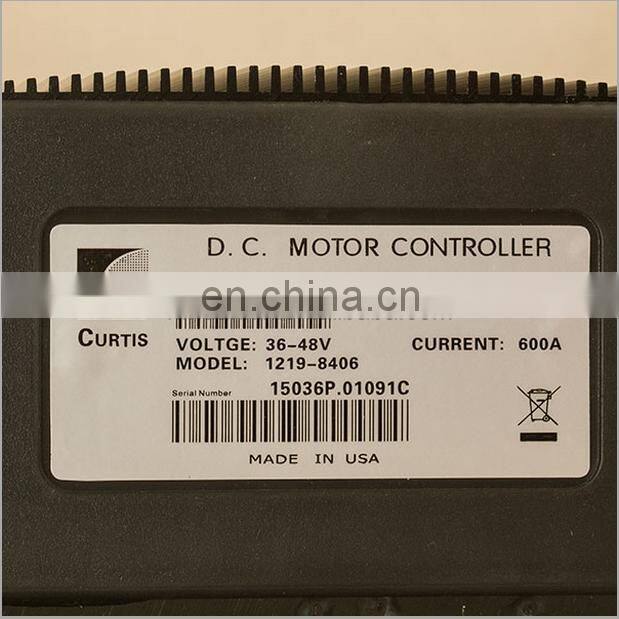

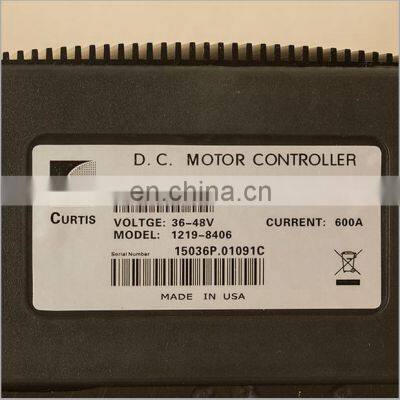

High Quality Forklift Parts Curtis DC Motor Controller 1219-8406

CURTIS 1219-8406 programmable motor speed controllers provide efficient, cost-effective, and simple-to-install control for a variety of large industrial vehicles. Typical applications include walkie/rider pallet trucks, fork lifts, stackers, reach trucks, and other industrial trucks. The 1207-based microprocessor logic section combined with a CURTIS MOSFET power section gives the 1219-8406 controller high power and advanced features in a rugged, compact package.
1219-8406 controllers are flexible in variable applications, with the added functionality of being programmable-via the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

Under Voltage Cutback (Volts): 21V
Contactor Voltage (Volts): battery voltage
Throttle Type: 0-5K Ω (throttle type "3", default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, 0–10V, inductive, Hall, etc.
Ambient Operating Temperature Range: -40°C to 50°C
Heatsink Overtemperature Cutback: 85°C
Heatsink Undertemperature Cutback: -25°C
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 16–45V
KSI input current (no contactors engaged):
80 mA without programmer
130 mA with programmer
Logic input current: < 2 mA
Status LED output current (max.): < 2 mA
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°

Power MOSFET design, providing
infinitely variable drive and plug brake control
silent high-frequency operation
high efficiency (for reduced motor and battery losses)
Overvoltage and undervoltage protection
Diagnostic and test information for the controller-and other system components-readily available through both an on-board LED and the optional handheld programmer
Meets or exceeds EEC fault detect requirements, with circuitry and software to detect faults in the throttle circuit, MOSFET drive circuits, MOSFET output, contactor drivers, and contactors
Programmable input sequencing options include several combinations of neutral start and static return to off (SRO)
Arcless contactor switching with microprocessor-controlled contactor sequencing
Smooth, controlled plug braking-with either variable (throttledependent) or fixed plug current limit
Neutral braking option provides automatic plug braking in neutral
MultiMode™ input selects between two different operating modes, thus allowing optimization of vehicle characteristics for different driving conditions
Emergency reverse (belly button switch) provides full function with a single input
Anti-rollback (ramp start) provides full power for starting on ramps
Simple contactor and switch wiring, with coil drivers monitored for shorts and open circuits-thus ensuring fail-safe operation
Flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, 0–10V, inductive, Hall, etc.
