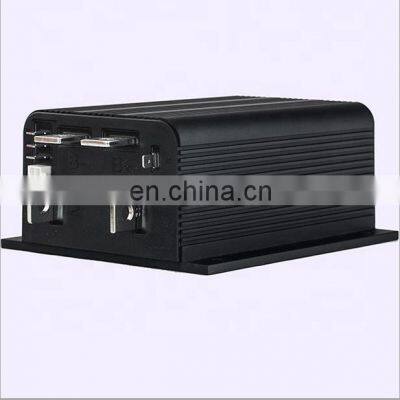

P124M-4201 Controlador, 24-36V 275A

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

CURTIS Model			1204M-4201
* Norminal Battery Voltage (Volts)			36V (default setting) or 24V
* 2 Minute Current Rating (amps)			275
* 5 Minute Current Rating (amps)			200
* 1 Hour Current Rating (amps)			125
* Plug Braking (A2 Busbar)			Yes

Model: 1204M-4201, 24-36V / 275A, With Mating Connectors
Specifications
* full controlling set for 24V or 36V DC Series Motor
* proposed motor power rate: 2.3 - 3.6 kW
* foot pedal accelerator (throttle), pre-wired for assemblage
* simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
* Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
* reinforced carton package, safe for international delivery

Mating Connectors & Installation Kit

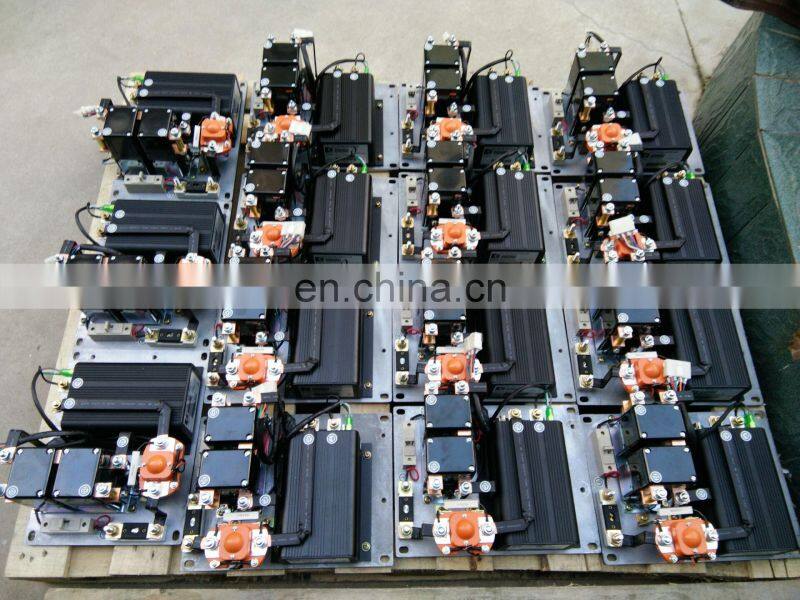

This 1204M-4201 controller assemblage is a completed electric vehicle DC Series Motor control system, with components mounted on a
heat-sink aluminium alloy installation plate. The assemblage includes:
* controller
* main contactor
* forward / reverse contactor
* fuses
* wiring
* heat-sink aluminium alloy installation plate
* foot pedal accelerator (throttle)
* plug-in connectors
* installation (bolts, washes and nuts) kit Included

Features include:
* High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
* Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
* Compatible with either a two-wire potentiometer or a voltage throttle.
* Throttle fault protection circuitry disables controller if throttle wires become open.
* High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
* Plug braking diode internal to controller.
* Thermal protection and compensation circuit provides constant current limit over operating range and during under/over
temperature cutback; no sudden loss of power under any thermal conditions.
* Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

Certifications

Company Profile

Hefei Huanxin Technology Development Co.,Ltd, established in 2004, is a professional manufacturer engaged in the research, development, production, sales and service of Motor Controller, DC-DC Converter, Drive Wheel Assembly, Instrument Cluster, Switch, Accelerator
and so on. Our company specialized in various kind of pallet trucks parts and forklift parts for both domestic and international markets.Also our company is the first-level agent of CURTIS BRAND and appointed of Britain Albright Contactor. In addition we have obtained ISO9001 and CE Certificates.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your souring requirement.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

Shipping

Package:Normally we use the standard exporting packaging. We also can according to clients request .
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer’s destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
4: Delivery date: 5-8days

Exhibition

FAQ

Q1. Can I have a sample order? A: yes, we welcome sample order to test and check quality. Q2. What about the lead time? A: Sample needs 3-5 days. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products? A: Yes, we offer 1 year warranty to our products. Q8: How to deal with the faulty? A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
