New Curtis Motor Speed Controller Programmable 36 Volt Controller 1204M-5305

CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque.

Key Features:

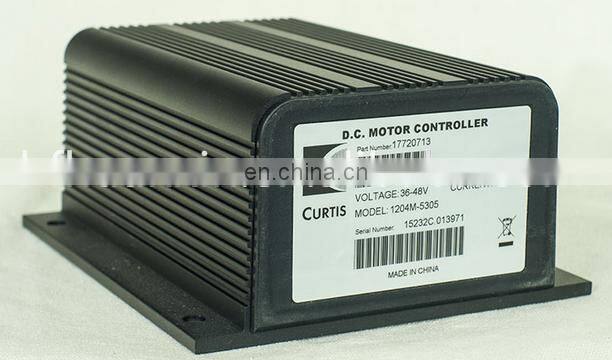

CURTIS Model: 1204M-5305
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
2 Minute Current Rating (amps): 325
5 Second Boost Current Rating (amps): 358
1 Hour Current Rating (amps): 140
Plug Braking (A2 Busbar): Yes
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input current (no contactors engaged):
70 mA without programmer
130 mA with programmer
Logic input current: < 2 mA
Status LED output current (max.): < 2 mA

Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: ISTA 2A; electronics sealed to IP65
Regulatory compliance: EN 12895 and EN 61000

Features Include:

High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.

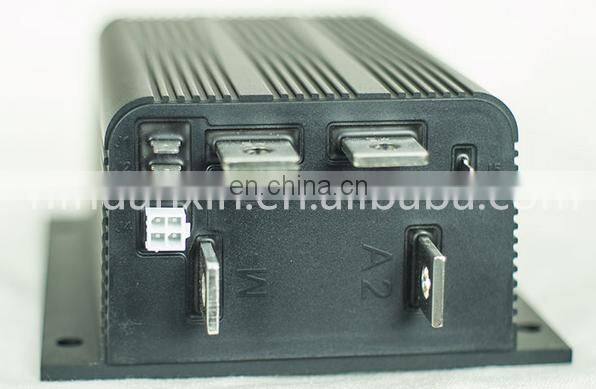

Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.

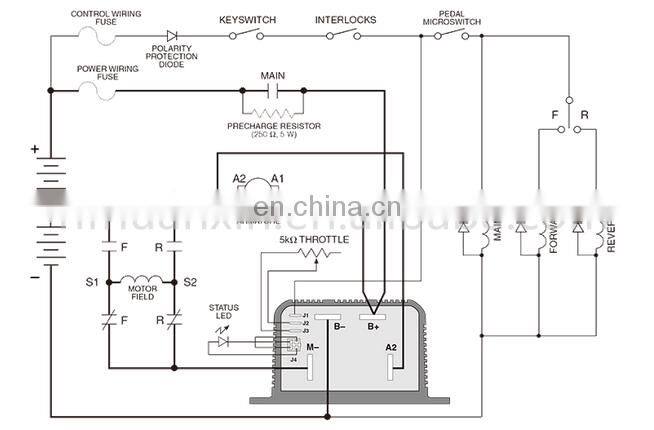

Compatible with either a two-wire potentiometer or a voltage throttle.
Throttle fault protection circuitry disables controller if throttle wires become open.
High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
Plug braking diode internal to controller.
Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.

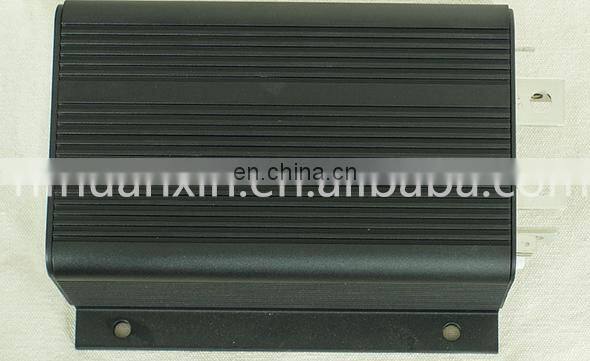

Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

* Training how to instal the machine.
* Quality Guarantee

* we offer 2 years warranty to our products.

Our Building

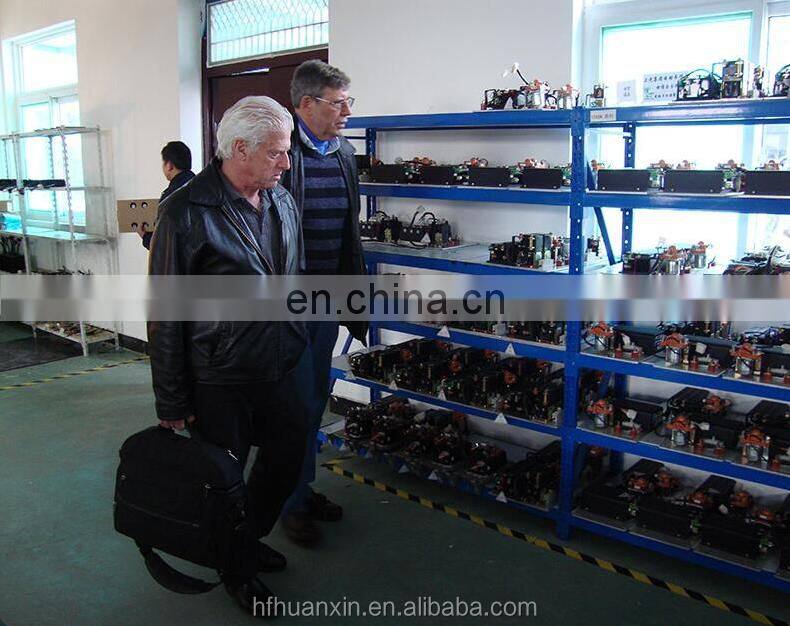

Our Warehouse

Our Workshop

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

A: We are factory.

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Yes, we offer 1 year warranty to our products.
