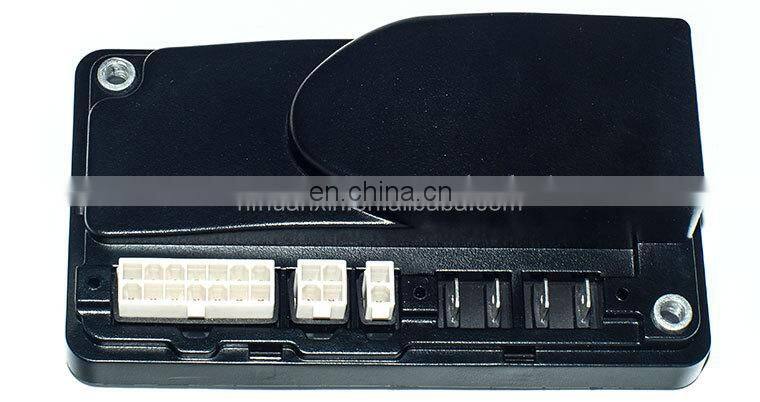

24v 70a Pwm dc Motor Controller for Electric Scooter/bicycle
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Curtis Model 1230 AC Motor Controller
-
Curtis 24v ac Motor Controller for Pallet Truck 1230-240
-
Curtis AC Motor Speed Controller 1230-2402 for Electric Vehicle
-
Original Curtis AC Motor Controller 1234-5371
-
Curtis Controller 1268-5403 Used For Electric Forklift
-
Curtis PMC 1204M-5305 DC Motor Speed Controller 325A 36V-48V for Club Cart
Product Description
Products Description

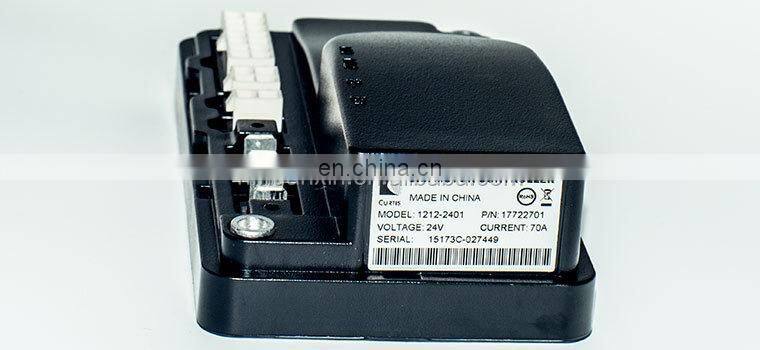

* CURTIS Model | 1212-2401 | ||||||
* Norminal Battery Voltage (Volts) | 24V | ||||||
* 20 Second Current Rating (amps) | 70A | ||||||
* 2 Minute Current Rating (amps) | 50A | ||||||
* 1 Hour Current Rating (amps) | 20A | ||||||
* Peak Boost Current (amps) | 80A | ||||||
* Max Boost Current Duration | 10 Second | ||||||
* Minimum motor resistance | 120 mΩ | ||||||
For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1212&1212P Controller Manual before making the purchase.
By default, we will deliver the controller with default throttle type setting "7" (7 = single-ended; neutral when wiper ≤ PotLow). If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to download the parameter list of default setting of controller 1212-2401, PDF format).
Overview:
The 1212-2401 is designed for use in low power DME applications such as micro-scooters, mini-scooters, foldable scooters, and low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its programmable options also allow it to be used on any low power permanent magnet motor application.
The 1212-2401 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
By default, we will deliver the controller with default throttle type setting "7" (7 = single-ended; neutral when wiper ≤ PotLow). If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to download the parameter list of default setting of controller 1212-2401, PDF format).
Overview:
The 1212-2401 is designed for use in low power DME applications such as micro-scooters, mini-scooters, foldable scooters, and low-end personal mobility vehicles. Although it is optimized for use on modern 3-wheel and 4-wheel mobility aid scooters, its programmable options also allow it to be used on any low power permanent magnet motor application.
The 1212-2401 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
Features Include:
* Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps
* Linear cutback of current ensures smooth control, with no sudden loss of power during undervoltage or overtemperature
* Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed
* Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
* The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all conditions
* Charger inhibit input prevents driving while charger is attached
* Key Off Decel function ensures a smooth “brake to stop” when the key is turned off while driving or when a fault occurs that requires the vehicle to stop
* Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps
* Internal main contactor provides secure power-off
* Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds,etc.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps
* Linear cutback of current ensures smooth control, with no sudden loss of power during undervoltage or overtemperature
* Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed
* Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
* The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all conditions
* Charger inhibit input prevents driving while charger is attached
* Key Off Decel function ensures a smooth “brake to stop” when the key is turned off while driving or when a fault occurs that requires the vehicle to stop
* Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps
* Internal main contactor provides secure power-off
* Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds,etc.
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
