Curtis DC Brush Series-Excited 80V Motor Speed Controller For Forklift 1253-8001

Overview:

The CURTIS 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.

The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.

Key Features :

CURTIS Model: 1253-8001
Norminal Battery Voltage (Volts): 80V
Amature Current Limit (amps): 600
Programmable Undervoltage Cutback (Volts): 54-70
Overvoltage Cutoff (Volts): 102
PWM operating frequency: 15.6 kHz
Electrical isolation to heatsink (min.): 500 VAC
KSI input voltage: 28–60V DC
KSI input current (no contactors engaged):
60 mA without programmer
130 mA with programmer
Logic input current: < 1 mA
Status LED output current (max.): < 2 mA
Heatsink overtemperature cutback: linear cutback starts at 80°C; complete cutoff at 120°C
Heatsink undertemperature cutback: 50% current below -25°C
Throttle Type: 0-5K Ω (default setting), 5K-0 Ω, 0-5V or single-ended 3-wire potentiometer (1kΩ to 10kΩ range)
Operating ambient temperature range: -40°C to 50°C
Storage ambient temperature range: -40°C to 85°C
Package environmental rating: IP54

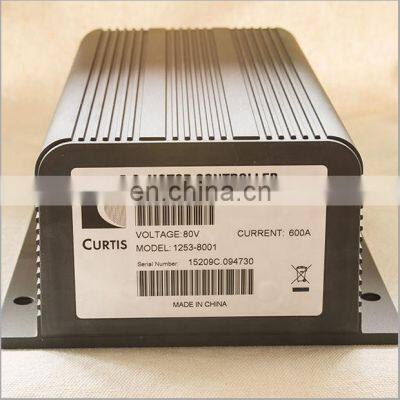

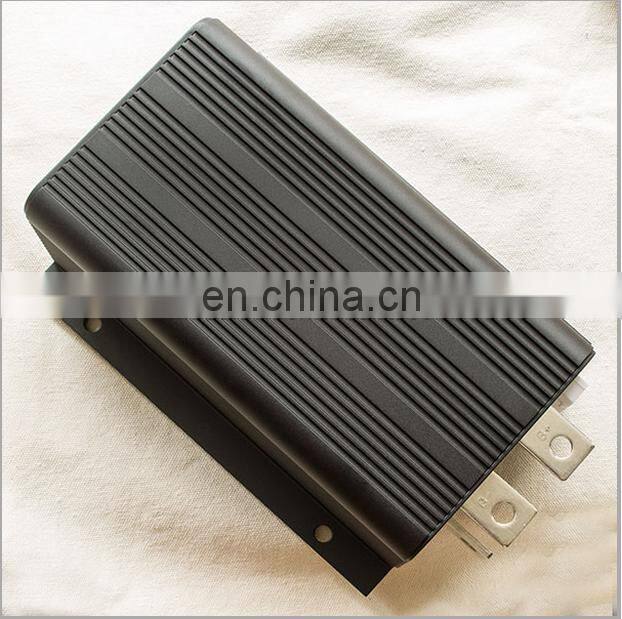

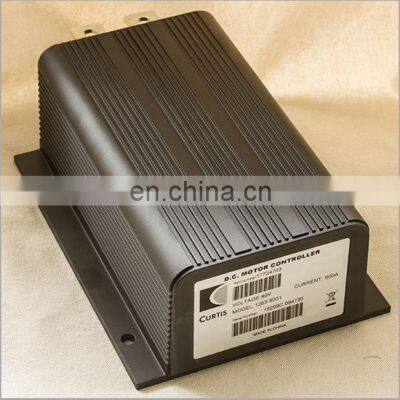

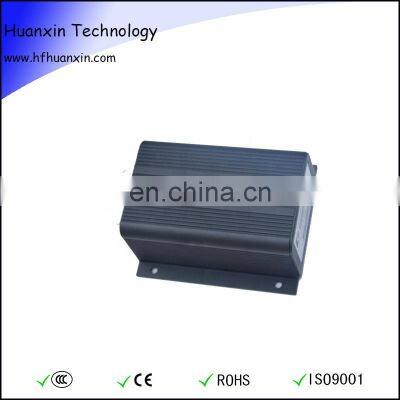

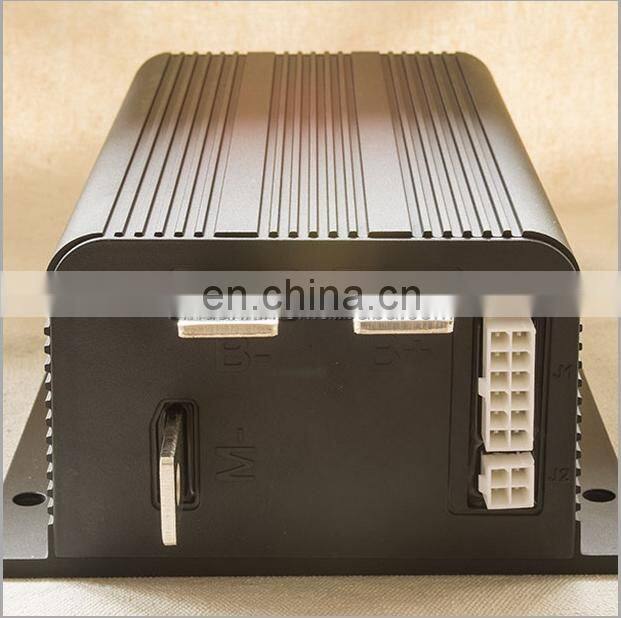

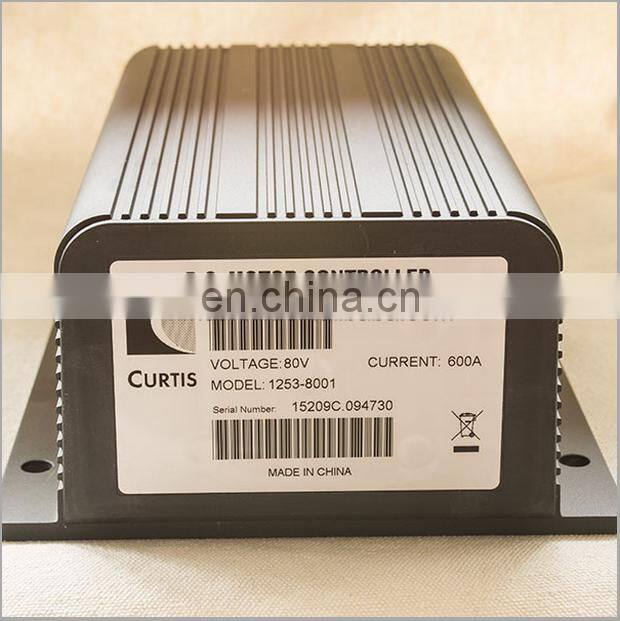

Picture :
