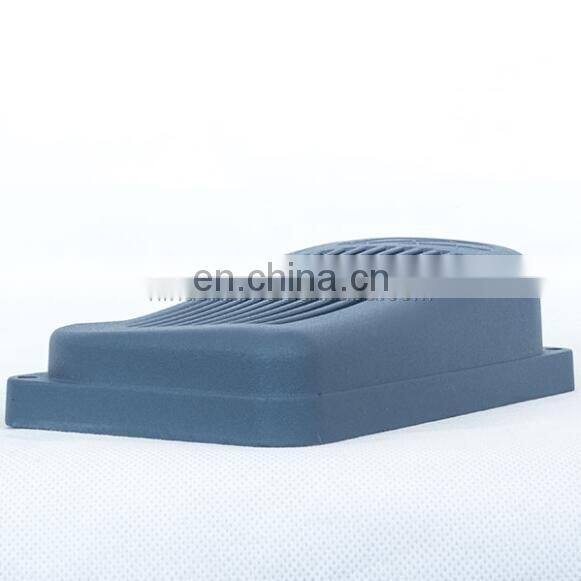

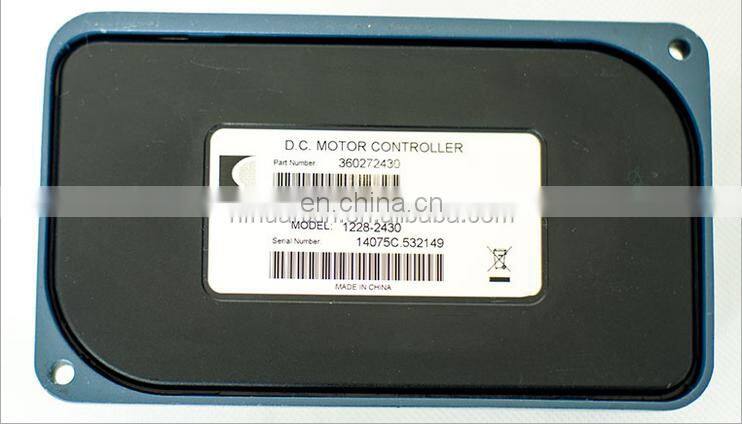

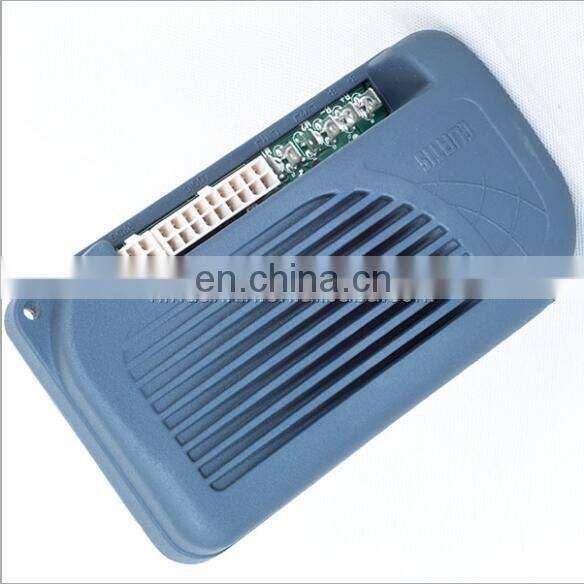

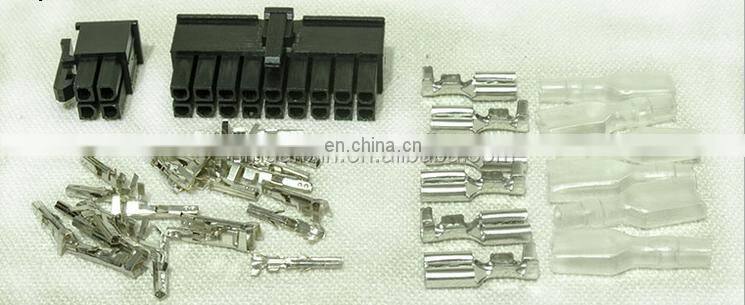

Curtis 1228 DC Motor Controller for Floor Washing Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Curtis 1238-6501 Motor Controller 550A 48-80V
-
350A 48V-80V Curtis Motor Controller 1238-6401
-
Electric Forklift DC Motor Controller 1204M-5203 36V
-
Curtis 1268-5403 Controller Eve Conversion Kits for Electric Sightseeing Bus
-
1205M Curtis Motor Controller With Latest Technology
-
Curtis AC Controller 1230-2402 for Electric Forlift
Product Description
Product Description
Specifications:
* PWM operating frequency: 15 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Dielectric resistance: >1 MΩ (DC test)
* Heatsink overtemperature: linear cutback starts at 92°C; complete cutoff at 134°C
* Heatsink undertemperature: 50% armature current at -25°
* Undervoltage cutoff: 14 V
* Overvoltage cutoff: 34 V
The CURTIS 1228 MultiMode™ controller is a permanent magnet motor speed controller designed for use in mobility aid scooters and
other small electric vehicles, such as sweeper/scrubbers.
* PWM operating frequency: 15 kHz
* Electrical isolation to heatsink (min.): 500 VAC
* Dielectric resistance: >1 MΩ (DC test)
* Heatsink overtemperature: linear cutback starts at 92°C; complete cutoff at 134°C
* Heatsink undertemperature: 50% armature current at -25°
* Undervoltage cutoff: 14 V
* Overvoltage cutoff: 34 V
The CURTIS 1228 MultiMode™ controller is a permanent magnet motor speed controller designed for use in mobility aid scooters and
other small electric vehicles, such as sweeper/scrubbers.
Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS
1228 Controller Manual before making the purchase.
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to
download the parameter list of default setting of controller 1228-2430 (PDF format)).
Overview:
The 1228-2430 offers smooth, silent, cost effective control of motor speed and torque. A four quadrant, full bridge power output
stage provides for solid state motor reversing and full braking power without additional relays or contactors.
The 1228-2430 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of
the programmer offers diagnostic and test capability.
1228 Controller Manual before making the purchase.
If you need to modify any controller parameter, please send us a message with the list of parameters to be modified (Click here to
download the parameter list of default setting of controller 1228-2430 (PDF format)).
Overview:
The 1228-2430 offers smooth, silent, cost effective control of motor speed and torque. A four quadrant, full bridge power output
stage provides for solid state motor reversing and full braking power without additional relays or contactors.
The 1228-2430 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of
the programmer offers diagnostic and test capability.
Product Paramenters
Key Features:
* CURTIS Model: 1228-2430
* Norminal Battery Voltage (Volts): 24V
* 15 Second Current Rating (amps): 70
* 1 Minute Current Rating (amps): 70
* 1 Hour Current Rating (amps): 35
* Minimum motor resistance: 200 mΩ
* B+, B- logic pin current (max.): 9 A (pins 1, 2 and 10, 11 on 18-pin connector)
* KSI input current (typical): 50 mA without programmer; 150 mA with programmer
* KSI input current (peak): 1.5 A
* Logic input current (typical): 1 mA at 24 V
* Horn output current (max.): 15 mA
* BDI output voltage and current (max.): 0–5 V, 2 mA
* LED output current (max.): 15 mA
* Electromagnetic brake coil resistance (min.): 32-200 Ω
* Throttle Type: By default, the Throttle Type of controller 1228-2430 is set as Type "0". The controller 1228-2430 can be
programmed to accept single-ended, wigwag, or inverted wigwag signals from a 5kΩ, 3-wire pot or from a 5V throttle. The
throttle input signal type options (Types “0” through “5” in the Throttle Type programming menu) are listed as below: * 0 =
wigwag pot or voltage throttle
* 1 =
inverted wigwag pot or voltage throttle
* 2 =
single-ended pot; maximum speed = 5kΩ
* 3 =
inverted single-ended pot; maximum speed = 0
* 4 =
single-ended voltage throttle; maximum speed = 5V
* 5 =
inverted single-ended voltage throttle; maximum speed = 0
* Dimensions: W91xL156xH43 mm
* Net Weight: 0.6 kg
* Regulatory compliance: Designed to ANSI RESNA WC 14/21, ISO 7176-14, ISO 7176-21, and EN 12184. Documentation available to
* Operating ambient temperature range: -25°C to 50°C
* Storage ambient temperature range: -40°C to 70°C
* Package environmental rating: IP40
Features Include:
* Full bridge power MOSFET design, providing * infinitely variable forward, reverse, drive, and brake control
* silent high frequency operation
* high efficiency
* Complete diagnostics through the CURTIS programmer and a status LED
* Full compliance with all applicable international standards
* Available for single-ended or wigwag 5kΩ potentiometer throttles and 5V throttles (both standard full stroke and restricted
range)
* MultiMode™ input selects between two different operating modes, thus allowing optimization of vehicle characteristics for
different driving conditions (for example, indoor/outdoor)
* Speed limit input provides linear variable speed limiting when an external speed limit pot is used
* Current limiting in both driving and regenerative braking modes
* Load compensation stabilizes speed on ramps and over obstacles
* Speed scaler eliminates variations in maximum speed that would otherwise result from variations in battery charge levels
* High pedal disable (HPD) function with lockout monitors status of the throttle during turn-on and prevents operation until the
throttle has been returned to neutral
* Key-off deceleration function provides a controlled deceleration if the keyswitch is turned off while driving
* “E Stop” provides a faster deceleration for emergency stops
* Seat lift function simplifies the wiring required to implement seat lift in DME scooter applications
* Comprehensive fault detection monitors main contactor, output stage, throttle demand vs. output, etc., and disables the drive
functions if any conditions are outside specified limits
* ISO 7176 compliant throttle fault detection circuitry inhibits driving if throttle pot signal goes out of range for any reason
* Missing/shorted brake detection forces neutral in the event of an open or shorted brake circuit
* Anti-rollback/anti-roll-forward function sets brake delay according to speed and direction for improved braking response and
minimized rollback on hills, etc.
* Reverse beeper option can be used to drive a low current dc horn when vehicle is in reverse
* “Push” input electrically releases brake for key-on pushing (requires that the vehicle be stopped first)
* “Push-Too-Fast” feature guards against unpowered vehicle runaway by powering up and regulating motor voltage to limit vehicle
speed
* Inhibit input disables the controller and puts the vehicle in a safe state during charging, etc.
* Power saver deactivates the main relay after 25 seconds of nonoperation and deactivates the entire controller after the
programmed sleep delay has elapsed
* BDI output can be used to provide data to a voltmeter; the BDI output can be “stuffed” (optional) in order to display the
battery state of charge during battery charging even while the keyswitch is turned off
* Undervoltage cutback function protects against operation at low battery voltage
* Overvoltage protection shorts the motor and disables driving in the event of excessive battery voltage
* Thermally protected
* Reverse polarity protected (battery input)
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
* CURTIS Model: 1228-2430
* Norminal Battery Voltage (Volts): 24V
* 15 Second Current Rating (amps): 70
* 1 Minute Current Rating (amps): 70
* 1 Hour Current Rating (amps): 35
* Minimum motor resistance: 200 mΩ
* B+, B- logic pin current (max.): 9 A (pins 1, 2 and 10, 11 on 18-pin connector)
* KSI input current (typical): 50 mA without programmer; 150 mA with programmer
* KSI input current (peak): 1.5 A
* Logic input current (typical): 1 mA at 24 V
* Horn output current (max.): 15 mA
* BDI output voltage and current (max.): 0–5 V, 2 mA
* LED output current (max.): 15 mA
* Electromagnetic brake coil resistance (min.): 32-200 Ω
* Throttle Type: By default, the Throttle Type of controller 1228-2430 is set as Type "0". The controller 1228-2430 can be
programmed to accept single-ended, wigwag, or inverted wigwag signals from a 5kΩ, 3-wire pot or from a 5V throttle. The
throttle input signal type options (Types “0” through “5” in the Throttle Type programming menu) are listed as below: * 0 =
wigwag pot or voltage throttle
* 1 =
inverted wigwag pot or voltage throttle
* 2 =
single-ended pot; maximum speed = 5kΩ
* 3 =
inverted single-ended pot; maximum speed = 0
* 4 =
single-ended voltage throttle; maximum speed = 5V
* 5 =
inverted single-ended voltage throttle; maximum speed = 0
* Dimensions: W91xL156xH43 mm
* Net Weight: 0.6 kg
* Regulatory compliance: Designed to ANSI RESNA WC 14/21, ISO 7176-14, ISO 7176-21, and EN 12184. Documentation available to
* Operating ambient temperature range: -25°C to 50°C
* Storage ambient temperature range: -40°C to 70°C
* Package environmental rating: IP40
Features Include:
* Full bridge power MOSFET design, providing * infinitely variable forward, reverse, drive, and brake control
* silent high frequency operation
* high efficiency
* Complete diagnostics through the CURTIS programmer and a status LED
* Full compliance with all applicable international standards
* Available for single-ended or wigwag 5kΩ potentiometer throttles and 5V throttles (both standard full stroke and restricted
range)
* MultiMode™ input selects between two different operating modes, thus allowing optimization of vehicle characteristics for
different driving conditions (for example, indoor/outdoor)
* Speed limit input provides linear variable speed limiting when an external speed limit pot is used
* Current limiting in both driving and regenerative braking modes
* Load compensation stabilizes speed on ramps and over obstacles
* Speed scaler eliminates variations in maximum speed that would otherwise result from variations in battery charge levels
* High pedal disable (HPD) function with lockout monitors status of the throttle during turn-on and prevents operation until the
throttle has been returned to neutral
* Key-off deceleration function provides a controlled deceleration if the keyswitch is turned off while driving
* “E Stop” provides a faster deceleration for emergency stops
* Seat lift function simplifies the wiring required to implement seat lift in DME scooter applications
* Comprehensive fault detection monitors main contactor, output stage, throttle demand vs. output, etc., and disables the drive
functions if any conditions are outside specified limits
* ISO 7176 compliant throttle fault detection circuitry inhibits driving if throttle pot signal goes out of range for any reason
* Missing/shorted brake detection forces neutral in the event of an open or shorted brake circuit
* Anti-rollback/anti-roll-forward function sets brake delay according to speed and direction for improved braking response and
minimized rollback on hills, etc.
* Reverse beeper option can be used to drive a low current dc horn when vehicle is in reverse
* “Push” input electrically releases brake for key-on pushing (requires that the vehicle be stopped first)
* “Push-Too-Fast” feature guards against unpowered vehicle runaway by powering up and regulating motor voltage to limit vehicle
speed
* Inhibit input disables the controller and puts the vehicle in a safe state during charging, etc.
* Power saver deactivates the main relay after 25 seconds of nonoperation and deactivates the entire controller after the
programmed sleep delay has elapsed
* BDI output can be used to provide data to a voltmeter; the BDI output can be “stuffed” (optional) in order to display the
battery state of charge during battery charging even while the keyswitch is turned off
* Undervoltage cutback function protects against operation at low battery voltage
* Overvoltage protection shorts the motor and disables driving in the event of excessive battery voltage
* Thermally protected
* Reverse polarity protected (battery input)
* Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
related products
our factory
Our Company
Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004.
We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We
have achieved great improvement since our company was founded in 2004.
We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We
have achieved great improvement since our company was founded in 2004.
We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.
Packing & Delivery
Exhibition
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea
shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our
sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%
Please feel free to contact us if you have any problem!
Contact Us
- Hefei Huanxin Technology Development Co., Ltd.
Product Categories
New Products
-
Curtis AC 1234-5371 Controller 350A
-
Curtis 1229-3101 Controller 24V-36V 200A
-
Curtis 1204M-5305 Motor Controller for Electric Forklift Golf Cart Eve Conversion Kit
-
1205M-6B402 Controller 60V 400A Made in USA
-
Speed Controller AC Motor Controller Curtis 1234-5371 36/48v With 350A
-
Original Curtis Brand 1234E-5321 AC Motor Controller
-
Advanced Design Curtis DC Controller 1215-8307 36V/48V-500A For Pallet Trucks
-
Motor Controller 1207B-5101 Upgraded for 1207A-5101 24V 300A Fits for Curtis
-
1212P-2502 CURTIS Controller 24V Electric Motor Controller 90A
-
36v 48v 275a 1266a-5201 Golf Cart Motor Controller Replacement For 1510a-5251 Curtis Controller For Golf Cart
-
Curtis PMC 24V 70A Brush DC Motor Controller 1228-2430
-
36V-48V 400A CURTIS Programmable DC Motor Speed Controller 1268-5403 for Golf Car
-
Hot Sale ZAPI Programmable DC Motor Controller H2B Series 48V/80V-420A/600A
-
Professional Supplier of Curtis DC Controller ZAPI DC Series Motor Controller H2B Series 48V/80V-420A/600A
-
AC Motor Controller 550A 1238E-6521 Speed Controller 48/60/72/80V
-
1266-5201 36v 48v 275a Electric Motorcycle Scooter Motor Controller
-
CURTIS Programmable AC Motor Controller 1236E-5421 (Upgraded Version of 1236-5401) 36V / 48V - 450A
-
24V Permanent Magnet DC Motor Curtis dc Controller 1212-2401
-
Original Version 24V 110A Controller 1228-2901
-
ZAPI AC-2 Flash Inverter AC-2 FZ5197A-INV Goldwind 1.5 kW Windmill Current Controller
-
Latest Version 36V 48V 450A 550A Zapi AC-2 AC Brushless Controller
-
Curtis 1230 AC Motor Controller 24V 200A
-
High Quality Forklift Parts Curtis Motor Controller 1266
-
Electric Forklift Motor Controller 1268
Popular Searches
- 1238-6501 curtis controller
- curtis controller 1268-5403
- ac motor control
- controler ebike
- cart control
- lathe speed controler
- pwm for hho
- 1268-5403 curtis controller
- 1266-5201 curtis controller
- agv controller
- separately excited
- at motor controller
- abbs motor controller
- acs motor controller
- amplify motor controller
- armed motor controller
- brushless and sensorless controller
- bipolar stepper motor controller
- brushless controler 72v
- controler for electric motor
- controler 60v
- car electric controler
- curti
- curty
- dc controler
- dc control
- electrical vehicles motor dc controler
- ford cruise control
- bc motor controller
- electric dc controll
Recommended Products
- Xiaomi SU7Motor Controller
- ABB Soft Starter PSTB PSTX PSE PSR300/370/470/570/720/840/1050
- Parker AC890 SD SeriesIntegrated Frequency Converter 890SD-433105F2-B00-1A000 Servo Drive
- Parker SSD AC890 Series AC Variable Frequency Drives 890CD-531200B0-000-1A000 Servo Driver
- Parker SSD AC890 Series AC Drives 890CD-531200B0-000-1A000 Complete Models, Welcome to Inquire
- Parker SSD AC890 Series AC Drives 890SD-232110B0-B00-1A000 The Models Are Complete, Welcome to Inquire.
- Parker SSD AC890 Series AC Drives 890CD-231300B0-000-1A000 AC Variable Frequency Drives
- Parker SSD AC890 Series AC Drives 890SD-433145F2-B00-1A000 AC Variable Frequency Drives
- Parker SSD AC890 Series AC Drives 890SD-531200B0-B00-1A000 AC Variable Frequency Drives
- Parker SSD AC890 Series AC Drives 890SD-531200B0-B00-1A000 AC Variable Frequency Drives
- Parker SSD AC890 Series AC Drives 890CD-531200B0-000-1A000 AC Variable Frequency Drives
- Parker SSD AC890 Series AC Drives 890CD-532450D0-000-1A000 AC Variable Frequency Drives
Find Similar Products By Category
- Auto, Motorcycle Parts & Accessories > New Energy Vehicle Parts & Accessories > Motor Controller
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Hefei Huanxin Technology Development Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
