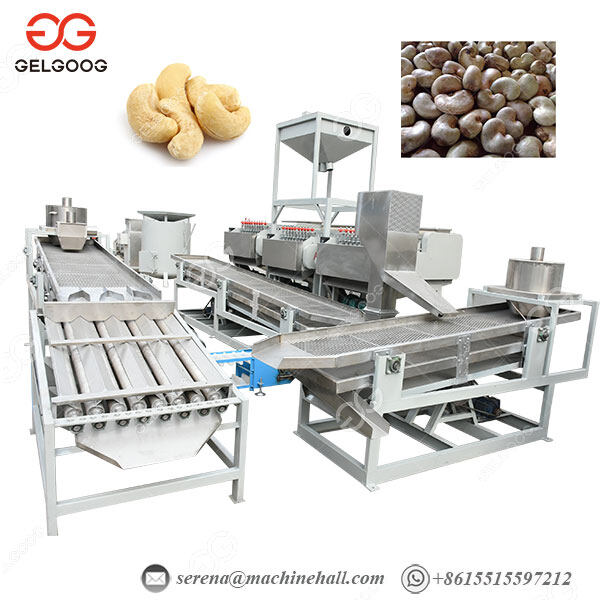

Cashew Nut Processing Unit Cashew Nut Shell Cutting Machine Cashew Shelling Machine System

We are engaged as one of the renowned automatic cashew nut processing machine manufacturers. This cashew cutting machine is manufactured using supreme quality raw material and modern technology. Our offered line of cashew nut cutting machines is strictly checked by our quality experts to ensure its flawlessness at the customer's end.

The cashew nut processing machine is composed of the following machines:

1. cashew nut sorting machine

2. cashew but boiling machine

3. cashew nut sheller/ cracker

4. cashew kernel and shell separator

5. cashew nut drying machine

6. cashew kernel peeling machine.

7. cashew kernel grading machine.

Features of Cashew Nut Shelling Machine

– Efficient: The Shelling Machine should work as efficiently as possible and should not require any human intervention other than loading and unloading.

– Safe: The Shelling Machine should cut the cashew into two halves without damaging it and without any sharp edges that could injure a person or animal.

– Durable: The parts of the Machine should be made from materials that do not corrode over time, such as stainless steel.

– Accurate: The Machine’s blades must be aligned so that they will produce squares with straight edges so that can be sorted easily.

Installation for automatic cashew nut processing machine:

1. The machine must be installed on a flat surface to prevent tilting. Before delivery,the feed hopper clearance and the shell tool gap have been adjusted. And the customer can adjust the gap slightly according to their own cashew nuts' size.

2. Before operation, idle the machine for a few minutes to ensure there is no abnormal phenomenon.

Parameter of Cashew Nut Processing Line

Introduction of Cashew nut processing machine:

Cashew nut production line processing needs to be selected according to customer output capacity, We can provide full solution according to the customer request, work with a single machine or manually with a continuous production line.

Here is the introduction of cashew processing flow:

1) Cashew nut washing machine: wash the cashew.

2) Cashew nut grading machine: separate the cashew into several grades.

3) Cashew nut steam cooker: boil the cashew by electricity or gas so that you can shell the cashew easily.

4) Cashew nut cooler machine: make the boiled cashew nuts cool.

5) Cashew nut shelling machine: shelling the cashew.

6) Cashew nut cashew nut separator: separate the cashew nut shell and kernel.

7) Cashew nut dryer machine: dry the kernel so that you can peel the kernel easily.

8) Cashew nut peeling machine: peel the kernel and then get the clear cashew nut kernel.

9) Cashew nut sorting machine: separate the nuts into service grades.

10) Cashew nut roasting machine: you can roast the kernel.you also can use the conveyor belt type dryer to roast the kernels. (Optional)

11) Cashew nut packing machine: pack the kernel into small bags or vacuum bags . (Optional)

Advantages of Cashew Nut Production Line

l Stable motion for the Machine.

l Machine is balanced with consistent performance.

l Very High Production Capacity up to 10 T per day.

l Very less power consumption – 1 Hp .

l Oil carryover to nuts limited.

l Latest technology, which is being enhanced regularly.

l Speed control of the Machine possible via inverter.

l 1 Cutter can do work of almost 8-10 Indian Cutters.

Parameter of Cashew Nut Processing Machine

Introduction of Cashew Nut Shelling Processing Machine:

1.Our automatic sheller is specially developed by our company to be used for breaking hard outer shell of cashew nuts.

2. It is of high shelling ratio , low crushing ratio, high quality, simple operation and easy maintenance. It can be used in food processing Industry or the pretreatment of oil production plants.

3. The machine can be adjusted to shell different sizes of cashew nuts.

Advantages of Cashew Nut Shelling Machine

l Stable motion for the Machine.

l Machine is balanced with consistent performance.

l Very High Production Capacity up to 20 T per day.

l Very less power consumption – 1 Hp .

l Oil carryover to nuts limited.

l Latest technology, which is being enhanced regularly.

l Speed control of the Machine possible via inverter.

l 1 Cutter can do work of almost 8-10 Indian Cutters.

Technical Parameter of Cashew Nut Shelling Unit:

Installation for cashew nut cutting shelling machine:

1. The machine must be installed on a flat surface to prevent tilting. Before delivery,the feed hopper clearance and the shell tool gap have been adjusted. And the customer can adjust the gap slightly according to their own cashew nuts' size.

2. Before operation, idle the machine for a few minutes to ensure there is no abnormal phenomenon.

Spare Parts for Cashew Nut Cutting Machine

We provide spares parts with all our cashew processing machines. Based on our experience, we have selected a list of spares which we provide to customers, along with the cutting machines. This helps to avoid downtimes and loss of production. We also sell spares separately for those cashew processing units wanting them. Don’t hesitate to get in touch with us in case you have any requirements.
