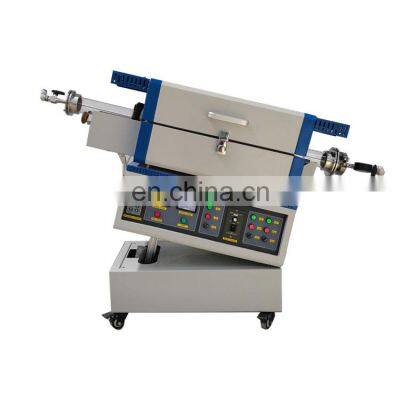

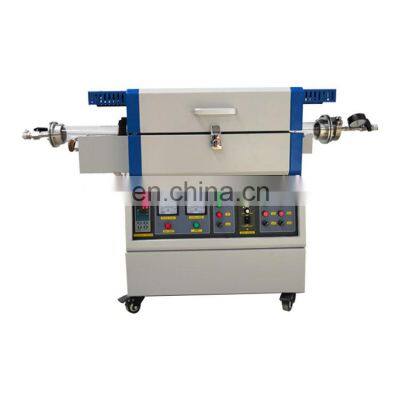

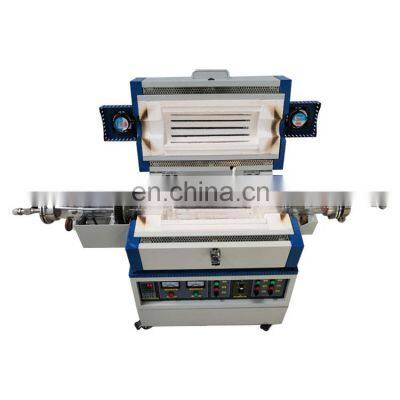

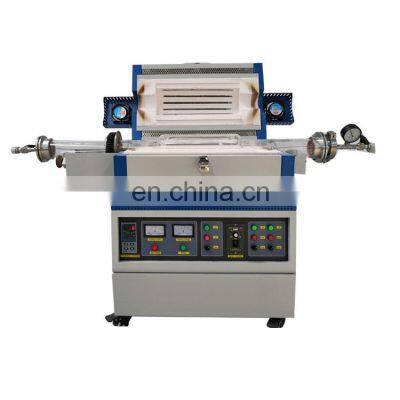

Laboratory 1200 1400 1700 Degree Vacuum Atmosphere Rotary Tube Furnace for Lead Smelting and Quenching and Sintering
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2004
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1800 Degree Mini Lab Ceramic Kiln 1800c High Temperature Sintering Furnace With 30 Segments Programmable And PID Auto ControllerNegotiableMOQ: 1 -
TEFIC TX2-1-12TP Laboratory Muffle Furnace 1200 Degree Electric Heating Furnace Dental Ceramic Pottery Kiln Burnout OvenNegotiableMOQ: 1
-
1200 Degree Muffle Furnace Electric Sintering Furnace Pottery Kiln Ceramic Oven for Chemistry Lab UseNegotiableMOQ: 1
-
1700C Laboratory Vacuum Heat Treatment Furnace For Metal Hardening and Tempering in a Protective Gas AtmosphereNegotiableMOQ: 1
-
1400 Degree Laboratory Digital Oven Ceramic Furnace Electric Chamber for Metal Heating and HardeningNegotiableMOQ: 1
Product Description
Application | It is widely used in scientific research and small batch production of enterprises and institutions, as well as in the fields of ceramics, metallurgy, electronics, glass, chemical engineering, machinery, refractory, new material development, special materials and building materials. | ||||||
Temperature | 1200℃ | 1400℃ | 1700℃ | ||||
Temperature control accuracy | ±1℃ | ±1℃ | ±1℃ | ||||
Thermocouple and measuring range | K type（0-1200℃） | S type（0-1600℃） | B type（0-1820℃） | ||||
Heating element | Resistance wire | Silicon carbon rod | Silicon molybdenum rod | ||||
Appearance design | The electric furnace adopts humanized design, which is beautiful and easy to operate. The outer layer of paint is baked by spraying plastic at high temperature. It has high temperature resistance, oxidation resistance and acid-base resistance. Color selection for aging resistant hue, not because of the use of a long time to produce appearance color fading. | ||||||
Body design | The double-layer forced air cooling structure is adopted in the electric furnace shell, which makes the external temperature of the furnace shell close to the room temperature when the furnace is working at the highest temperature, thus avoiding the occurrence of accidental injury. | ||||||
Temperature control | Adopt international advanced temperature control instrument: with 30-50 segment programmable PID self-tuning, automatic heating, automatic cooling, no need to be on duty. RS-485 communication interface can also be selected (connect with ordinary computer to start, stop, pause temperature rise, set temperature rise curve, store temperature rise curve, record historical curve, etc.) | ||||||
Temperature control safety | The furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, broken couple protection, over current protection, overpressure protection and other protection functions) to make the furnace work stable, reliable and safe. | ||||||
Chamber material | The light alumina ceramic fiber is used internationally, which has excellent heat preservation effect, light weight, high temperature resistance, quick cooling and heat resistance, no crack, no crystallization, no slag falling, no worry about pollution of the products. The energy saving effect is 60% to 80% of the old electric furnace. | ||||||
Chamber design | The furnace adopts the step type assembling structure and integrates the mechanical laws, which effectively guarantees the uniform stress of the furnace in the heating process, ensures that the heat energy is not easy to be lost, and extends the service life of the furnace. | ||||||
Can be added gas | All inert gases, mixtures, nitrogen, carbon dioxide, water vapor, argon and oxygen | ||||||
Gas control | The air inlet can be provided with 1 or more air inlets, and each air inlet is provided with a needle valve and connected with a vacuum meter. The air outlet end is connected with an air outlet, and all holes are provided with needle valves. Equipped with a vacuum pump. | ||||||
Sealing mode | 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double sealing, to ensure the sealing. | ||||||
Warranty | The electric furnace is free of charge for 12 months (except for heating body), and the heating body and cooling fan shall be replaced free of charge in case of natural damage within 3 months. | ||||||

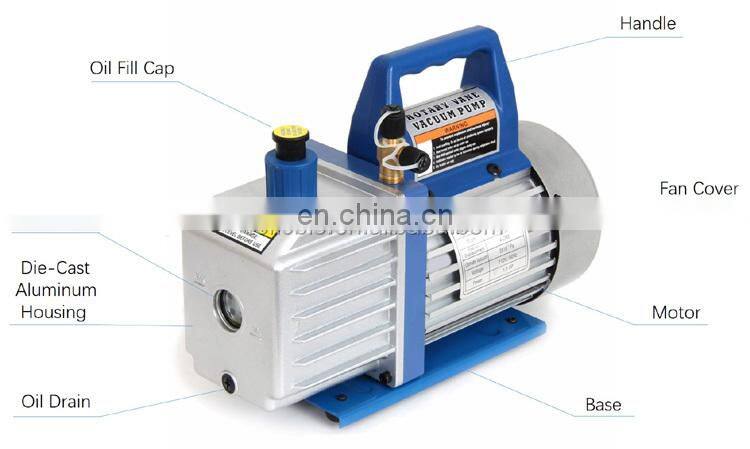

Accessories | Standard accessories: a vacuum pump, a crucible pliers, a pair of special high temperature gloves. One copy of operation manual. Optional accessories: touch screen control, paperless recorder, remote communication control system. | ||||||
Product specifications

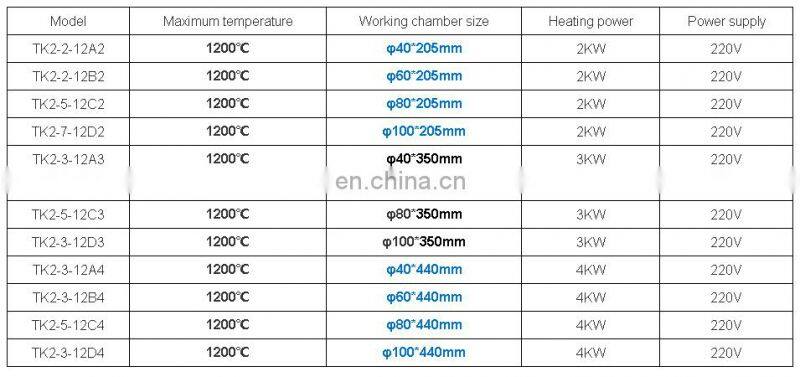

1200℃ vacuum atmosphere tube furnace

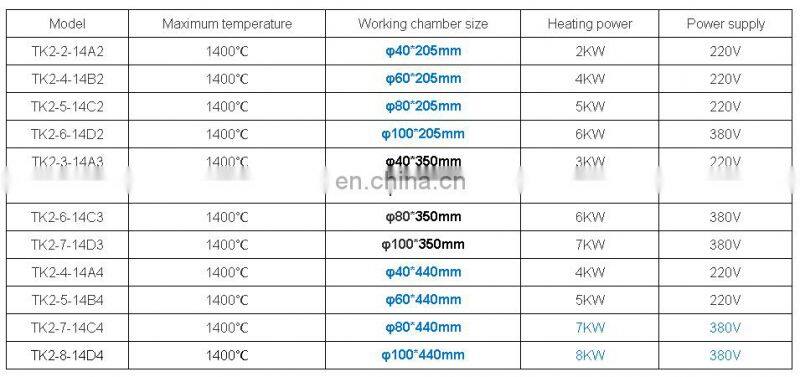

1400℃ vacuum atmosphere tube furnace

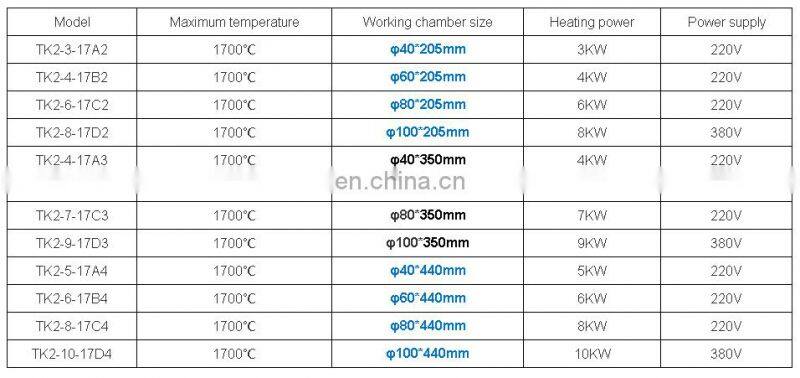

1700℃ vacuum atmosphere tube furnace
Packaging & Delivery
Why Choose Us

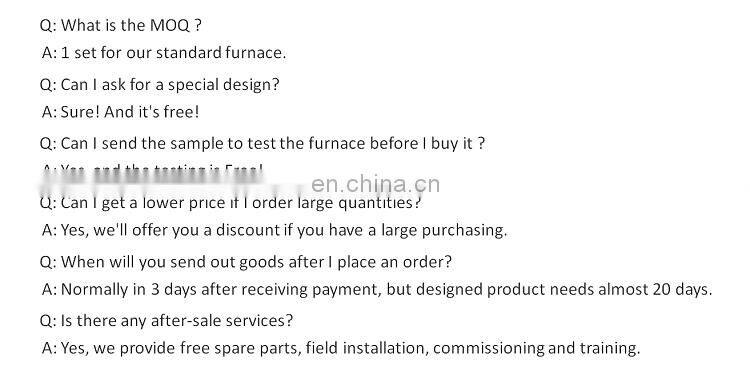

FAQ
