Stainless Steel Continuous Short-range Short Path Thin Wiped Film Molecular Distillation Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Short-range Stainless Steel Rolled Wiped Film Continuous Short Path Molecular Distillation System Equipment Apparatus
-
1.1sqft Thin Film Short Path Molecular Distillation Equipment
-
12\" Stainless Steel Short-range Molecular Distillation Apparatus System
-
Turnkey Stainless Steel Short Path Molecular Distillation Equipment
-
USA Delivery Wiped Film Molecular Distillation Equipment Apparatus
-
Stainless Steel Industrial Short Path Wiped Film Molecular Distillation System
Product Description
Products Description

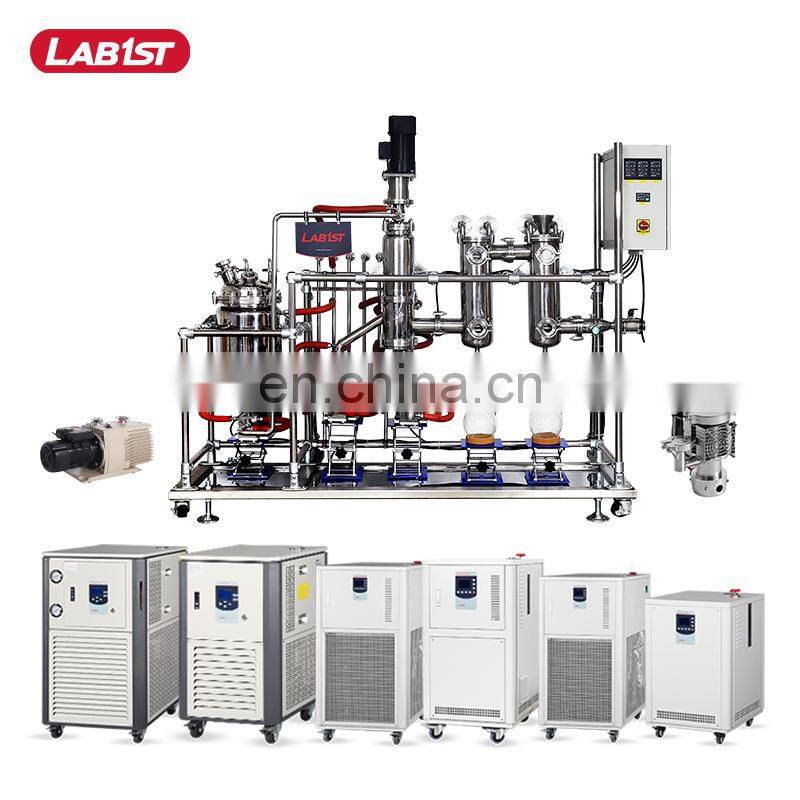

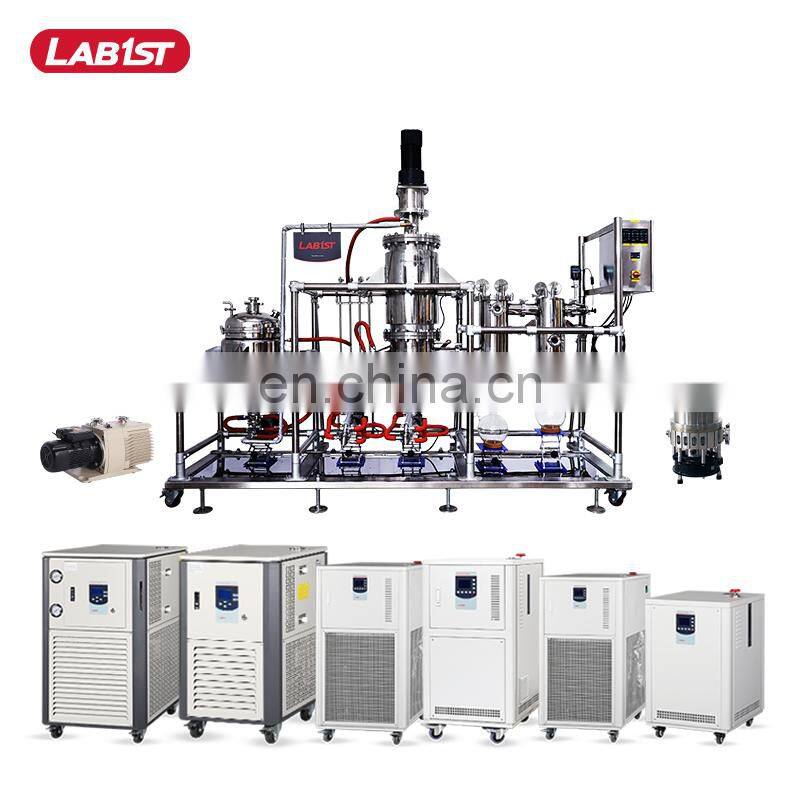

Stainless Steel Wiped Film Molecular Distillation Unit
In stock California, USA and Shanghai China; Fast Delivery!
Training and installation supporting
SMD-01 (o.1㎡ Evaporation Area)Feeding Rate (kg/h): 2~10 CBD Throughput (kg/h): 3.5~7
SMD-03 (o.3㎡ Evaporation Area)
Feeding Rate (kg/h): 5~25
CBD Throughput (kg/h): 10~20
CBD Throughput (kg/h): 10~20
SMD-05 (o.5㎡ Evaporation Area)
Feeding Rate (kg/h): 10~50
CBD Throughput (kg/h): 18~36
Product Paramenters
Model | SMD-01 | SMD-03 | SMD-05 | ||
Feeding Rate (kg/h) | 2~10 | 5~25 | 10~50 | ||
CBD Throughput (kg/h) | 3.5~7 | 10~20 | 18~36 | ||
Degree | Better than 10 Pa | ||||
Evaporation Area (㎡/sqft) | 0.1m2/ 1.1sqft | 0.3 m2 / 3.2 sqft | 0.5 m2 / 5.4 sqft | ||
Diameter | 125mm / 4.9" | 210mm / 8.3" | 300mm / 11.8" | ||
Wiper Style | Scaper | ||||
Material | SS316L / PTFE (wiper blade) | ||||
Vacuum Seal | Magnetic Sealing | ||||
Scraper Motor Power (w) | 370 | 750 | 1500 | ||
Speed Regulation Mode | Variable Frequency Drive | ||||
Max.Scraping Speed (rmp) | 450 | ||||
Max. temperature | 250℃ | ||||
Heat Exchanging Area (㎡） | 0.18 | 0.55 | 1.7 | ||

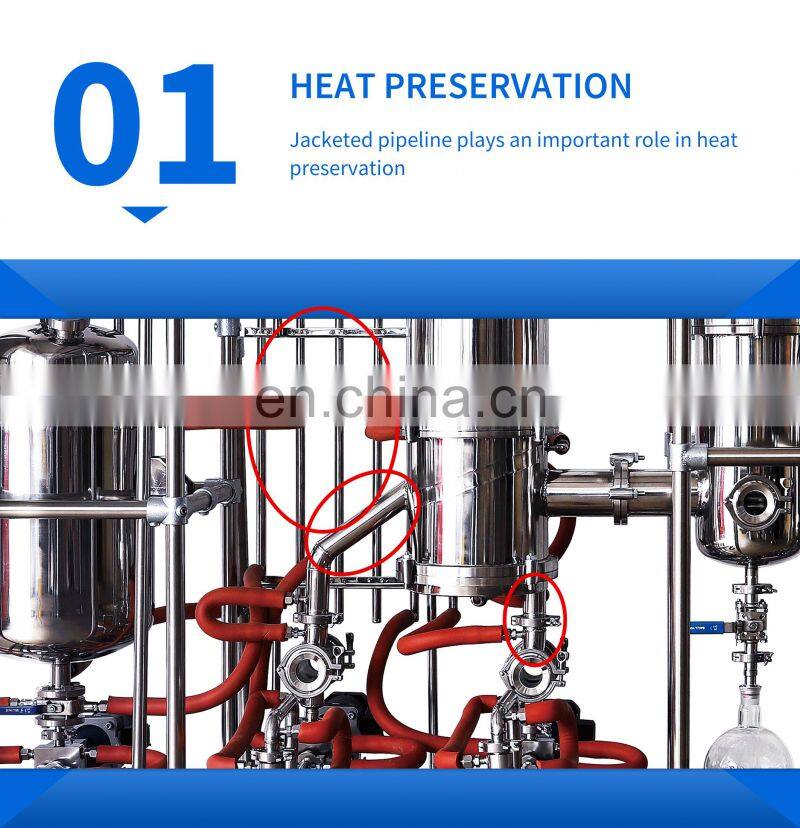

Heat Preservation Method | Jacketed Insulation | ||||
Power | 220V-Single Phase / Customizable | ||||

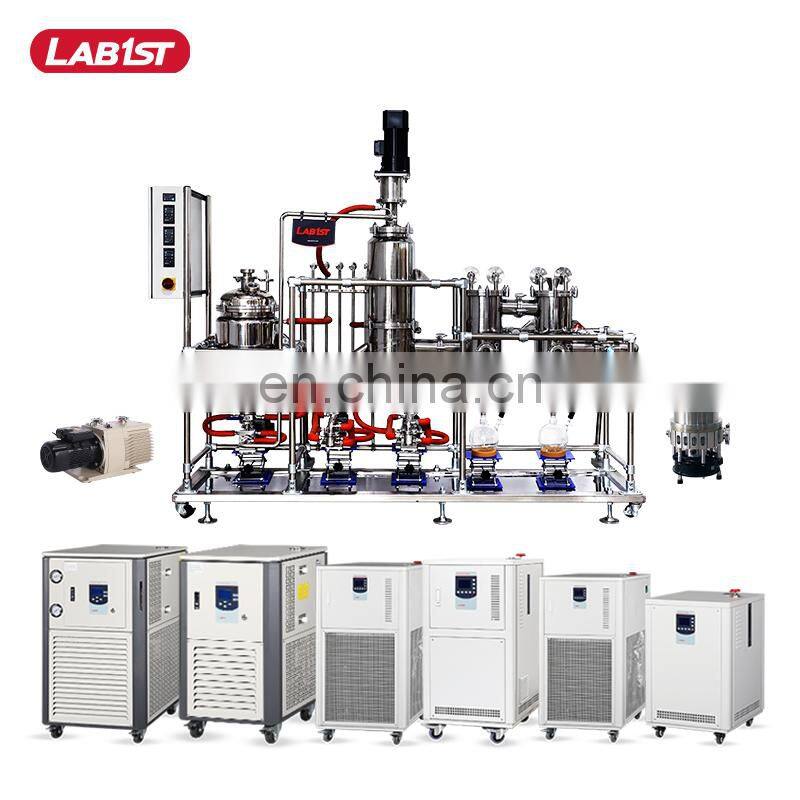

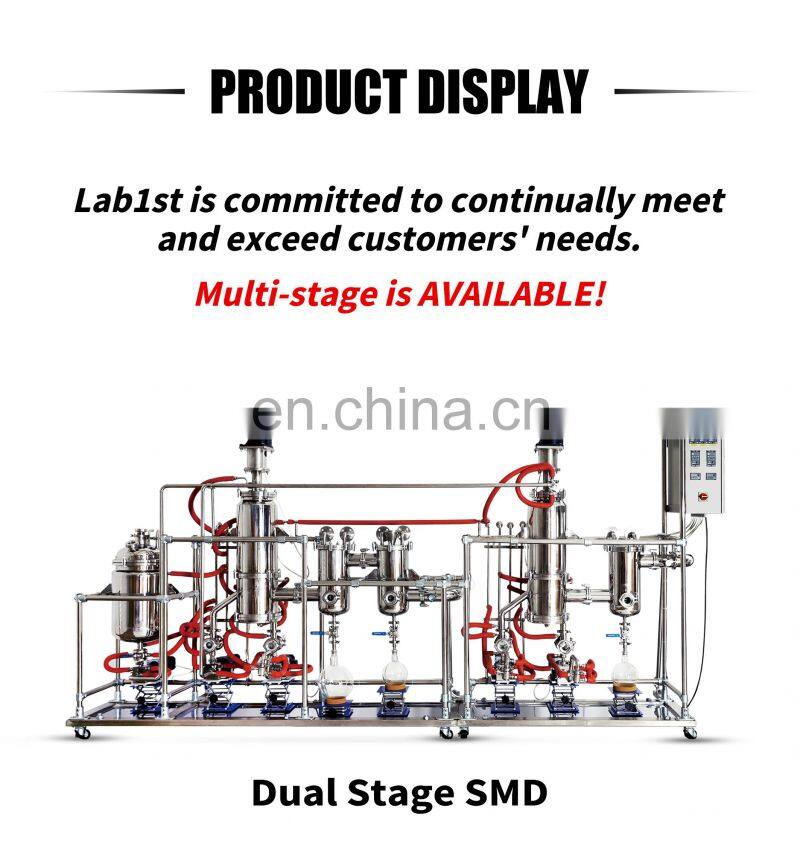

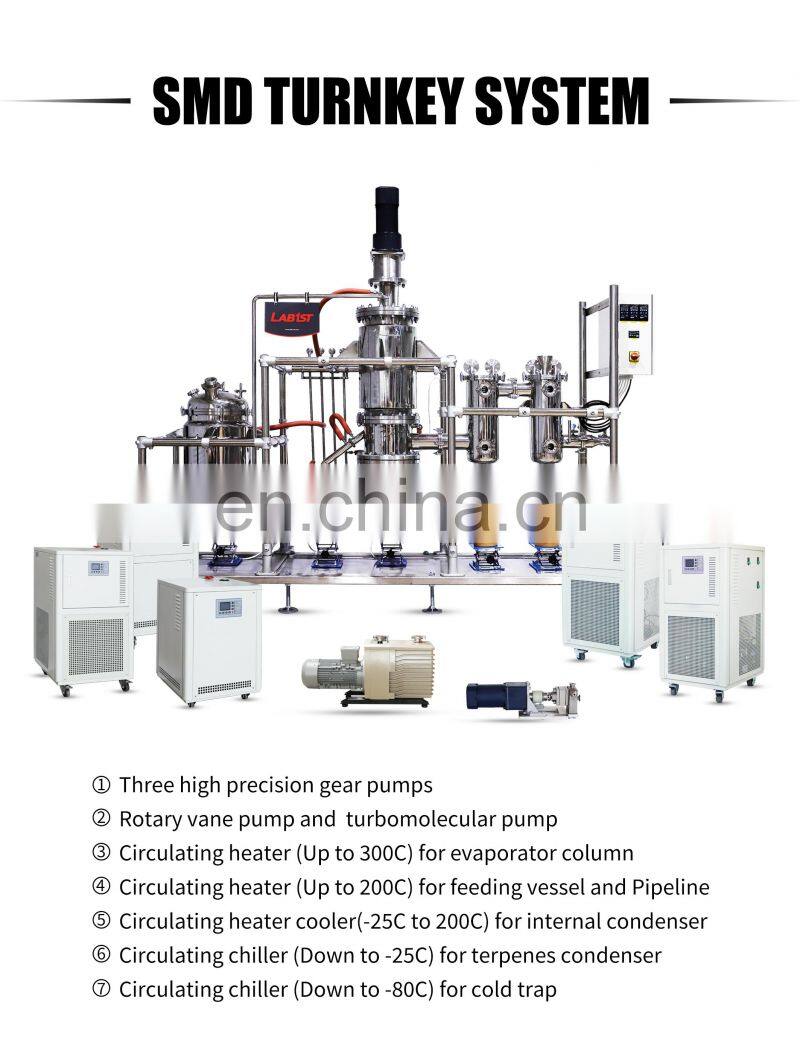

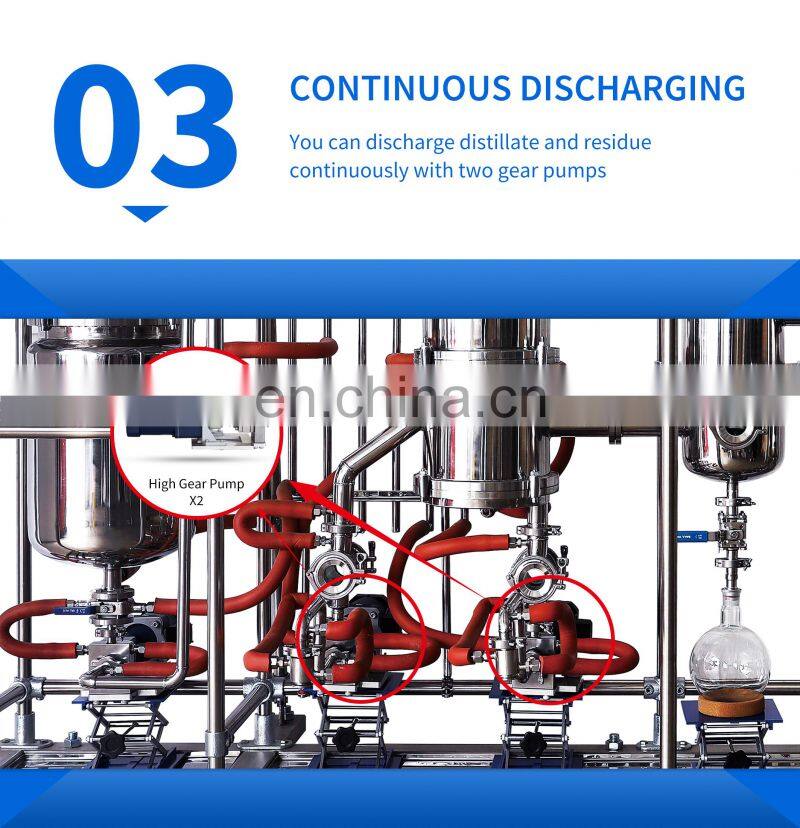

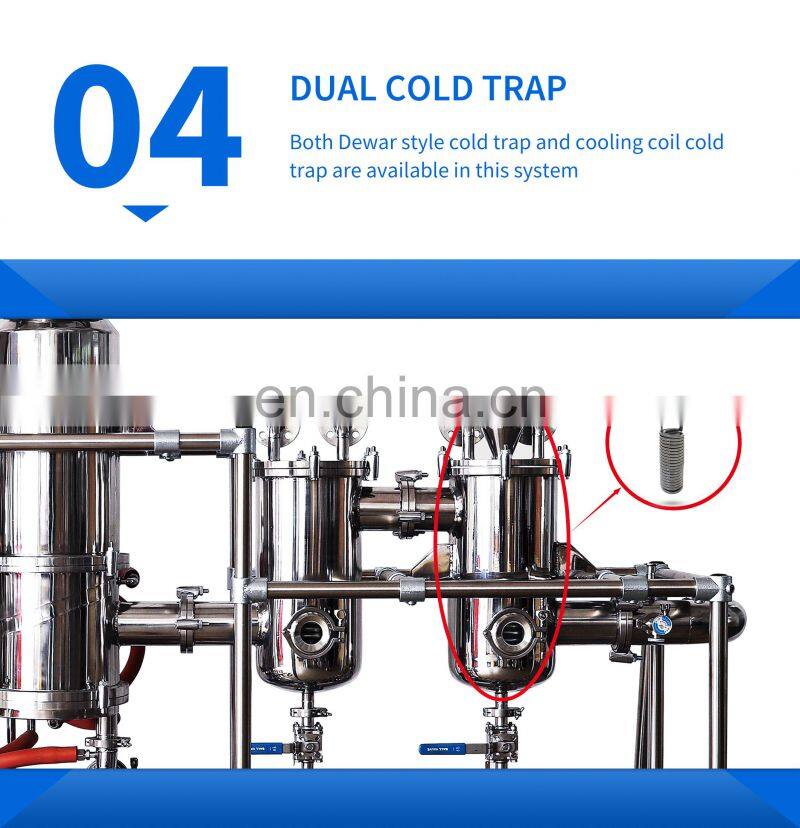

Details Images

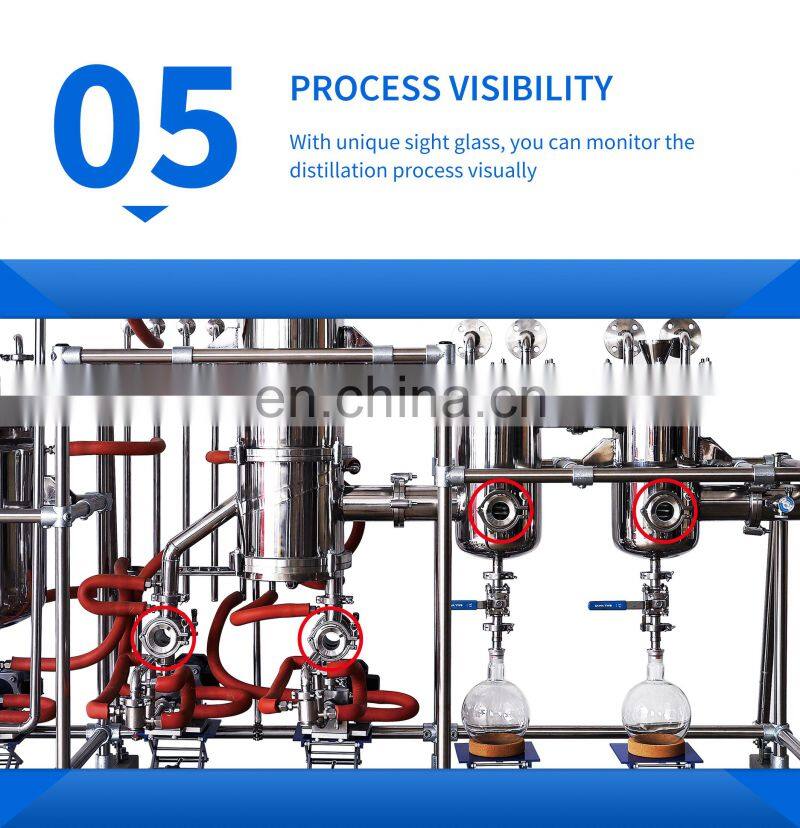

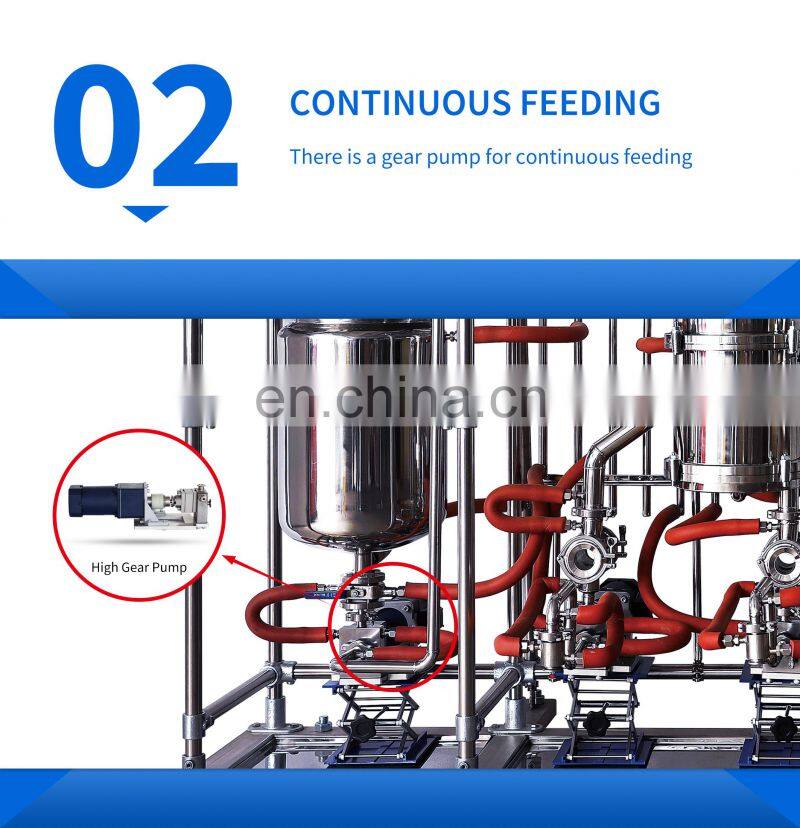

Our Advantages

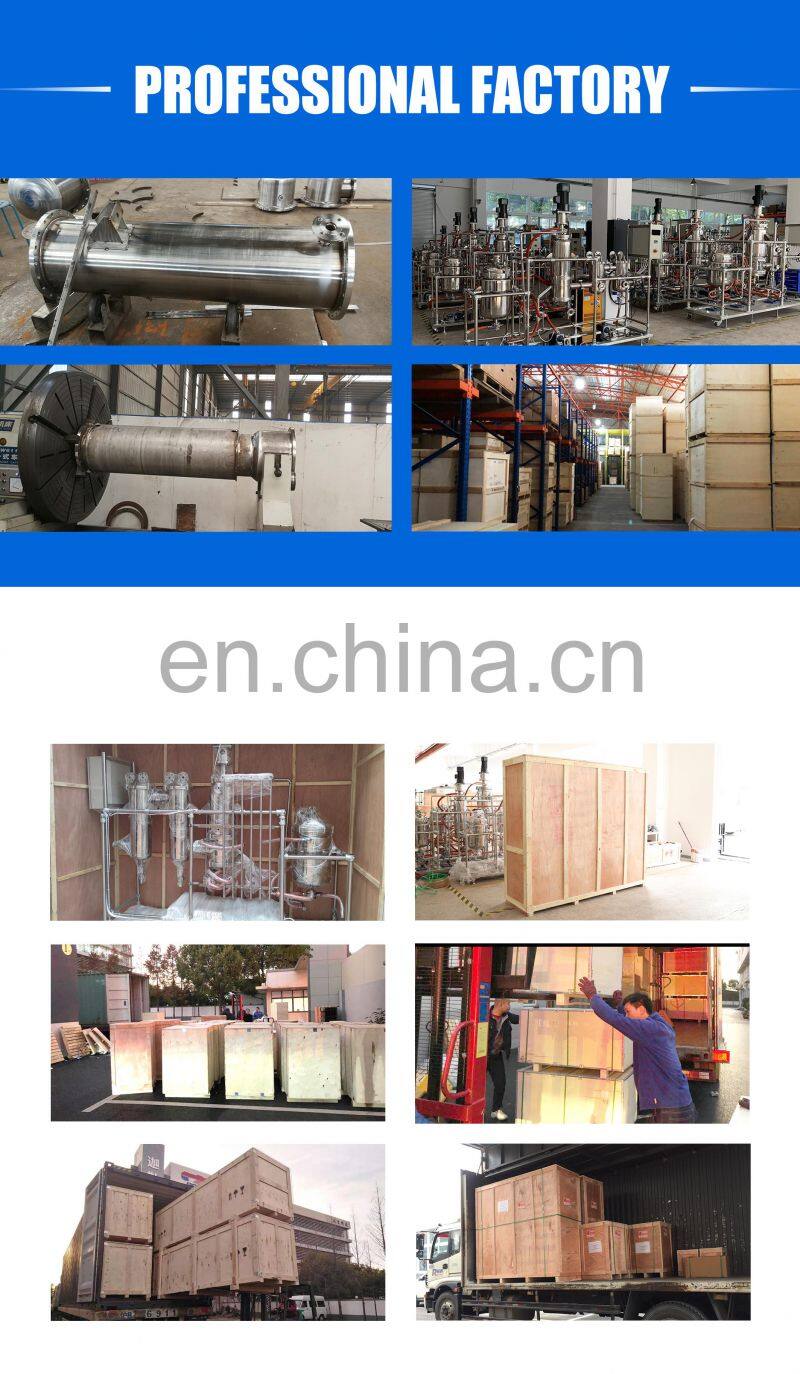

Our factory
Related Products
Contact Us
Contact Us
