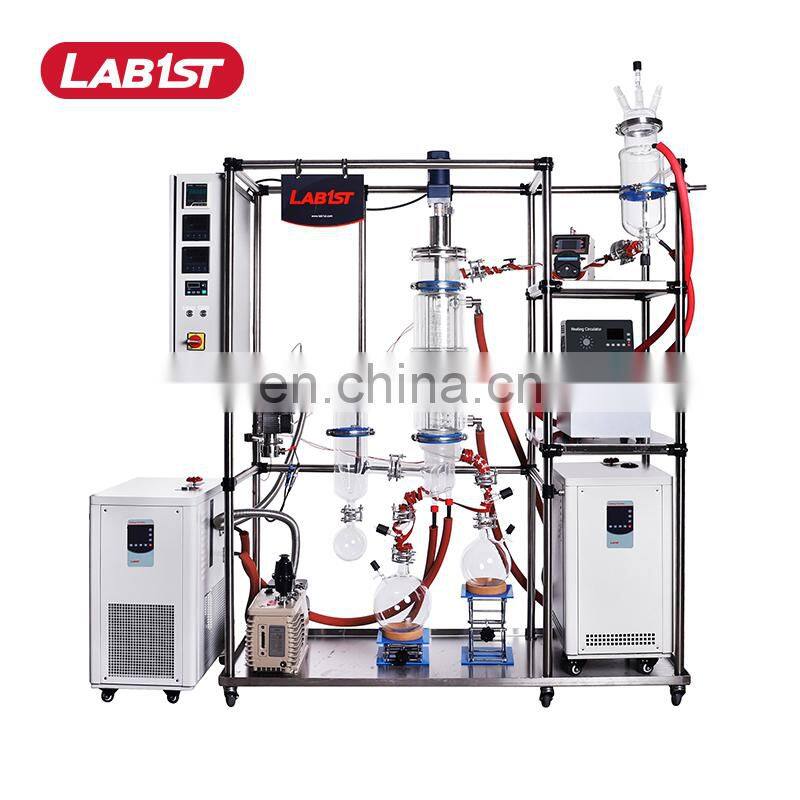

6" Jacketed Glass Wiped Film Molecular Distillation

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

UL available! USA warehouse delivery! One Year Warranty!

contact for more surprises and discount right now!

LAB1ST wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 80mm diameter to 200mm or more), with processing speed up toa 28kg/h.

Fully Upgraded Wiped Film Distillation Unit

Evaporator Unit with dewar-style cold trap; Main Heater: up to 300℃ Pre-heater: up to 300℃ Heater/Chiller for Internal Condenser: -25℃ to 180℃ Rotary Vane Pump: 6L/s gas displacement Additional Terpene Condenser Chiller for Terpene Condenser: down to -20℃ Peristaltic Pump Module: for continuous inlet Glass Valve Module: for Continuous Outlet Diffusion Pump Chiller for Cold Trap: down to -80℃

Upgraded Wiped Film Distillation Unit

Evaporator Unit : standard with dewar-style cold trap

Main Heater: 5kW heating power, up to 300C
Pre-heater Heater/Chiller for Internal Condenser: 1.5kW heating power, up to 300C
Rotary Vane Pump: 6L/s gas displacement

Peristaltic Pump Module for continuous inlet

Glass Valve Module for Continuous Outlet
Diffusion Pump:80L/s gas displacement for higher vacuum

Standard Wiped Film Distillation Unit

Evaporator Unit : standard with dewar-style cold trap

Main Heater: 5kW heating power, up to 300C
Pre-heater Heater/Chiller for Internal Condenser: 1.5kW heating power, up to 300C
Rotary Vane Pump: 6L/s gas displacement

Product Paramenters

Model	GMD-100	GMD-150	GMD-200
General Feeding Rate (kg/h)	0.75~7.5	1.25~12.5	1.75~17.5
Throughput - CBD Oil (kg/h)	1.5 - 3	2.5 - 5	3.5 - 7
Effective Evaporationn Area (㎡/sqft)	0.15/1.6	0.25/2.7	0.35/3.8
Evaporator Internal Diameter (mm/inch)	100/4.0	150/6.0	200/7.9
Feeding Funnel Volume (L)	2	3	5
Internal Condenser Area (㎡)	0.3	0.4	0.5
Distillate Receiving Vessel Volume (L)	2	5	5
Residue Receiving Vessel Volume (L)	1	3	5
Wiping Motor Power (W)	120
Maximum Speed (rpm)	400
Stirrer Seal	Oil-less Magnetic, High Vacuum
Wiper	PTFE Scraper
Material	Borosilicate Glass 3.3 / SS316L (wet parts) / SS304 (frame)
Vacuum Gauge	Pirani Style
Operation Temperature	Up to 250℃
Vacuum Degree	Better than 10 Pa
Voltage	220V-Single Phase / Customizable
Dimension (LxWxH mm)	2120 x 1740 x 628	2270 x 1940 x 628	2420 x 2040 x 628
