Moringa Safety Capsule Filling Machine NJP-2600 Fully Automatic Capsule Filler Machinery With Double Sealing Device
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Gypsum Powder v Type Mixer / Corn Cobs v Shape Blender Equipment
-
V Type Double Cone Type Dry Mixing Acid Powder Blending Herb/tea/coffee Small Mixer Machine Price
-
Factory Directly Supply Toothpaste Tube Filling And Sealing Machine Tooth Paste Making Machine
-
Factory Price Rotary Table Soft LDPE Tube Filler And Sealer Cosmetics Hand Cream Tube Filling Machine
-
Toothpaste Tube Cream Making Machine Toothpaste Ointment Pipe Tube Filling Sealing Machine
-
Factory Price Pharmaceutical Lotion Hair Cream Pharma Grease Gel Tube Filling Sealing Machine
Product Description
Product Description

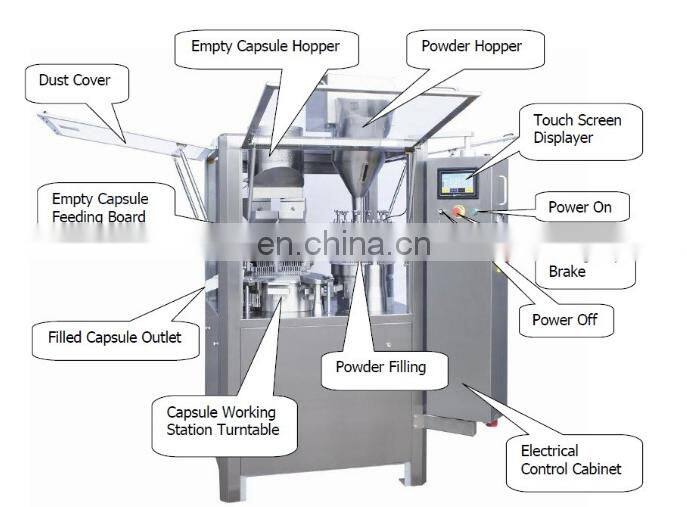

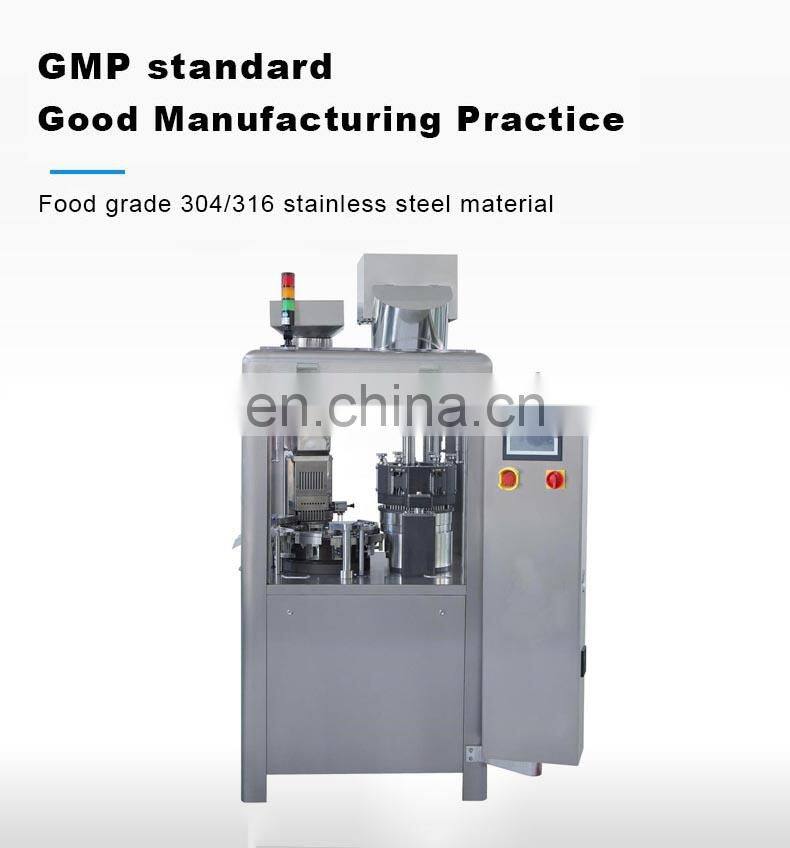

The NJP-1200 series capsule filling machine designed and produced by our factory. It has been improved and innovated by absorbing foreign advanced technology for many times. It is the first choice for hospitals, small and medium-sized pharmaceutical factories. It has replaced the original semi-automatic capsule filling equipment. The whole machine adopts intermittent rotary mechanism, packed type filling quantitative way. It is suitable for powder and particle filling.The capsule size is from 00# - 5#. It can be equipped with automatic capsules feeding machine, vacuum feeder, gold inspection machine, polishing machine, lift machine and other auxiliary machines.
Technical parameters
Model | NJP-2600 |
Output | 2600Capsules/min |
No.of segment bores | 9 |
Suitable fof capsule | 00#-5# |
Total power | 5.6Kw(standard) |
Overall weight | 1100Kgs |
Overall diemensions | 870(+339)mm*940(+339)mm*2000mm |
Dust | 20Kpa 210m3/h |
Noise | <80DB（A） |
Vacuum | 48m3/h, -0.03—0.05Mpa |
Filling error | ±2.5%—±3.5% |
Advantages & Selling Points
The characteristics of the packed type measurement
1.Accurate filling capacity, when filling quantity > 0.3 g, error was controled with in ±3%.
2.Adjust the lifting height of punch, doses of drugs may be fine-tuning.
Detailed information
Hand feeding
•Manually add the material into the hopper.
•Dust is bigger,
•the intensity of labor is higher.
•Suitable for small batch production.

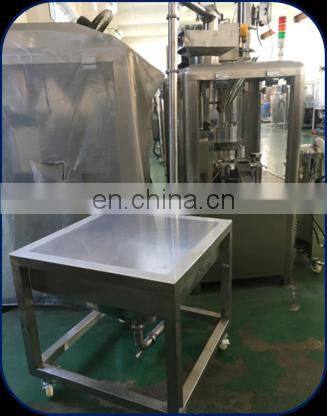

Lifting feeder (optional)
•Through the transition feeding pipe, with soft connection.
•Feeding process is closed, no dust spillover, safety and health.
•Adapt to the feeding of mixed materials, can control the problem of material stratification.

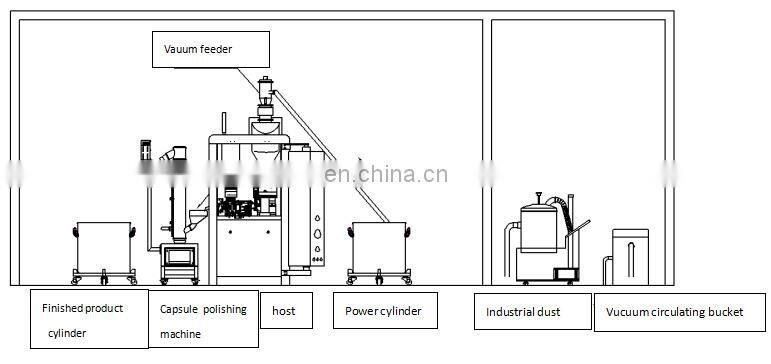

vacuum feeder (optional)
•Compact structure, no dust pollution, safety and health, low noise.
•Easy to install and operate, through can fit the filling machine’s load required.
•It is suitable for clean workshop with the height of ≤2.7m.

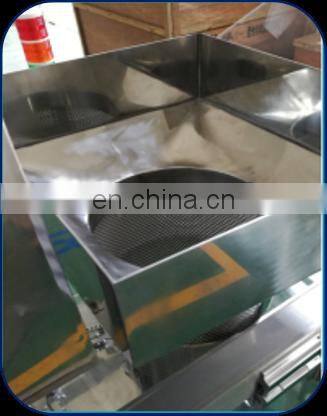

manual feeding
Feed the capsules into the hopper by hand.
suitable for small patch production.
automatic capsule feeding machine
It's easy to operate with the continuity of the machine by starting or shutdown.

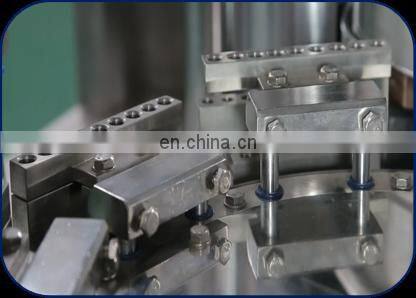

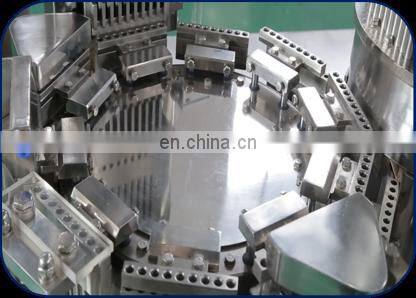

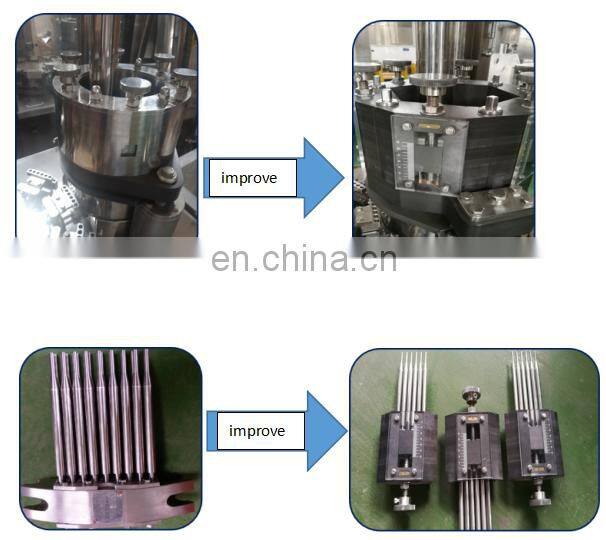

Enclosed station turntable
Easy to disassemble, easy to clean. Increase the service life of the station turntable.

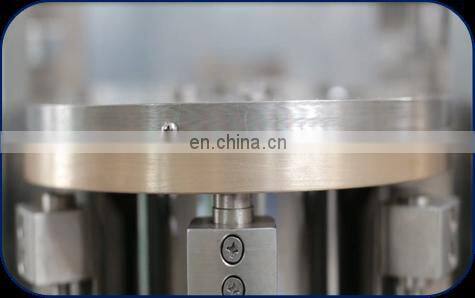

Three dimensional regulating mechanism
Eliminate the natural deformation of measuring plate and cooper ring. Reduce the leakage of power.

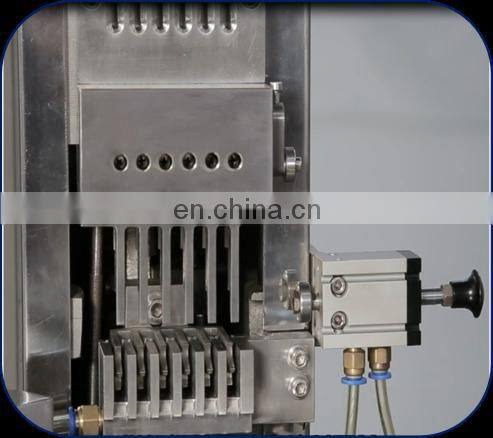

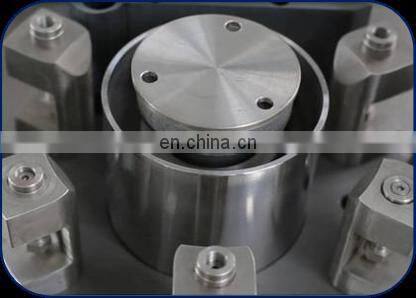

Modular powder filling mechanism
Modular closed powder filling mechanism, easy to disassemble, easy to clean.

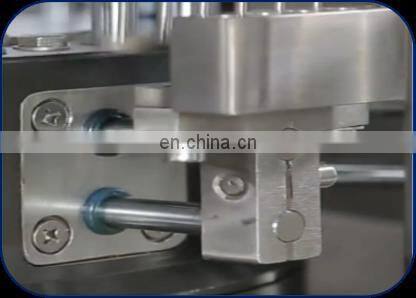

Sowing control switch
