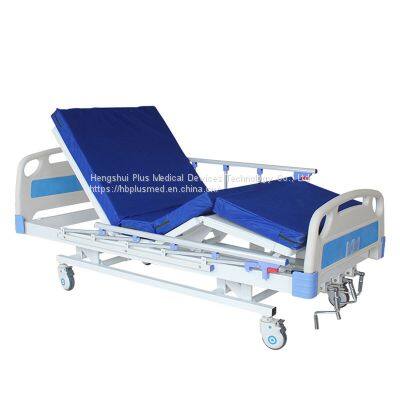

Three-crank Manual Hospital Bed
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Other
- 15 days
You May Like
Product Description
3 crank manual hospital bed for hospital use is also called three functions manual nursing bed. The main function of the hospital bed 3 cranks is its back adjustment, leg adjustment and height adjustment. Three crank hospital bed can add on-bed infusion poles and over-bed tables and other related basic configurations.
Parameter of 3 crank metal hospital bed
Model No. | Major Configurations | |||||
Bedboard | Head & Foot Board | Siderails | Casters | Crank | Pushing Rod | |
PH-M01 | 1.0mm thickness carbon steel with round shape punching holes | ABS with fender wheels | 4 pcs ABS with angle gauge | central locking system double sides casters | ABS foldable | limited positopn |
PH-M01-A | 1.0mm thickness carbon steel with oval shape punching holes | ABS compound type with fender wheels | 4 pcs ABS | central locking system double sides casters | ABS foldable | limited positopn |
PH-M01-B | mesh | ABS | 4 pcs ABS | central locking system double sides casters | ABS foldable | limited positopn |
PH-M01-C | ABS | ABS | 1. 6 bars S shape with metal lock 2. 35 cm height | independent locking casters | ABS foldable | limited positopn |
PH-M01-D | mesh | ABS with blue sticker | 1. 10 bars aluminum alloy with metal lock 2. 37cm height | independent locking double sides casters | ABS foldable | limited positopn |
PH-M01-E | 1.0mm thickness carbon steel with round shape punching holes | ABS with fender wheels | 1. 6 bars stainless steel with metal lock 2. 37cm height | independent locking double sides casters | ABS foldable | limited positopn |
PH-M01-F | 1.0mm thickness carbon steel with oval shape punching holes | PP | 1. 5 bars aluminum alloy with plastic lock 2. 45cm height | independent locking casters | electroplate metal foldable crank | unlimited position |
PH-M01-G | 1.0mm thickness carbon steel with oval shape punching holes | ABS | 2 pcs PP siderails | central locking system double sides casters | ABS foldable | limited positopn |
PH-M01-H | 1.0mm thickness carbon steel with oval shape punching holes | aluminul alloy frame | 1. 12 bars aluminum alloy with metal lock 2. 37cm height | independent locking casters | ABS foldable | limited positopn |
Functions of Three-crank Manual Hospital Bed
Back Adjustment
Patients can sit up and do some daily life activities easily by the 3-crank medical bed, lessening the nursing burden for both patients and nurses.
Functions of Three-crank Manual Hospital Bed
Leg Adjustment
Promote leg's blood circulation, preventing varicose veins and easily for legs' daily care.
Functions of Three-crank Manual Hospital Bed
Height Adjustment
To help patients to get on or off the bed easily.
Difference Between 2 Cranks and 3 Crank Hospital Bed
The two cranks manual hospital bed offers the backrest and knee adjustment of up and down, while the 3-crank manual hospital bed for hospital use has the additional function of integral height adjustment of up and down. The two types of hospital beds are almost with the same function, which only differs in the function of height adjustment and its specifications.
Also, the prices of the 3-crank bed will be higher than 2 crank hospital bed. Because it needs additional mechanism rotary axis to realize the function of integral height up and down.
As one of medical beds manufacturers, we manufacture standard hospital beds, home-style nursing beds, air mattress, es and also supply crutches, medical trolley, wheelchair, etc.
