GENERAL INFORMATION

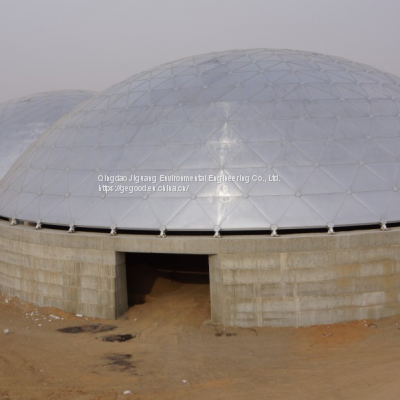

The Aluminum Geodesic Dome is a self-supporting cover used for municipal water and wastewater storage, petrochemical terminals, bulk material storage facilities and architectural structures, where the storage product and the structural tank components must be protected from atmospheric and environmental influences, while the same time, minimize hazardous vapour emissions and preventing water from entering the storage tanks. They can be used for both new tanks and retrofit projects.

CONSTRUCTION

The Aluminum Dome is a fully triangulates structure designed as a self-supporting dome roof where by only its outer edge is connected to the tank shell around the outer rim. The domes are fabricated from high strength Aluminum alloys that resist corrosion as well as chemical, ultraviolet and ozone degradation.

CERTIFICATION

JGJ 7                         Technical specification for spatial grid structures

GB 50017                  Design code for steel structures

GB 50205                  Code for acceptance of construction quality of steel structure engineering

GB 50341                  Design specification for vertical cylindrical welded steel oil tanks

GB 50128                  Code for construction and acceptance of vertical cylindrical welded steel storage tanks

API Std650                Welded steel tanks for oil storage

Q/320791 JAG02       Reticulated housing for storage tanks

FEATURES

Self-supporting

The light weight of the material and the advantaged framing system enable Geodesic roof to be self supported on the tank wall and no in-tank column is needed, even with large tank diameter till 100 meter.

Safe structure to adapt different conditions

The roof’s well calculated and examined structure make it able to meet many challenge from the environment. The geodesic geometry can hold the high snow load, high wind load and the seismic zone. With the sealing system, the roof can achieve air-tightness under the atmosphere pressure, so to have great odor control performance.

Low Maintenance cost

 Geodesic Roof uses high quality Aluminum alloy, the material has a naturally corrosion resistance in the atmosphere. So during the tank’s life service time (more than 30 years), no maintenance will be needed, the roof will keep it’s beautiful appearance. In high corrosive environments, the roof can have further surface treatment such as Anodic Oxidation.

Easy and fast construction

The dome roof is designed to work with YHR bolted tank, the effective frame and sealing system allow rapid construction, the jacks used for YHR tank wall installation will also be able to used for the roof, no second investment will be needed. The workers can safely stay on the ground for the installation, and no experience are requested.
