High Quality Plastic Storage Box Making Machine
- T/T Credit Card
You May Like
-
Plastic Security Seal Tag Making Injection Molding Machine
-
Chinese Supplier High Quality Automatic Small Plastic Household Product Making Injection Molding Machine
-
200ton Plastic Injection Moulding Machine Chinese Manufacturer
-
5L to 20L Plastic Paint Bucket Moulding Machine
-
Plastic Water Pail Paint Bucket 5L 10L 18L 20L Injection Moulding Machine
-
Pet Prefrom Making Machine/pet Prefrom Injection Machine/all Kind of Model/
Product Description
Plastic making machine for Plastic storage box making machine

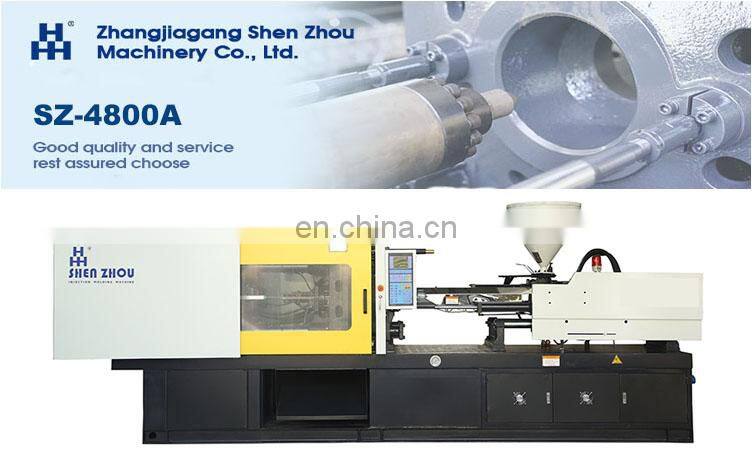

Technical Parameter of Plastic Making Machine for Plastic storage box making
|
Item |
unit |
SZ-4800A |
||
|
Screw diameter |
mm |
70 |
75 |
80 |
|
Screw L/D ratio |
L/D |
22.6 |
21 |
19.7 |
|
Theoretical injection capacity |
cm3 |
1346 |
1545 |
1758 |
|
Shot weight (PS) |
g |
1225 |
1406 |
1600 |
|
Injection pressure |
MPa |
201 |
175 |
154 |
|
Injection stroke |
mm |
350 |
||
|
Screw speed |
rpm |
0-150 |
||
|
Heating power of barrel |
Kw |
28 |
||
|
Clamping force |
kn |
4800 |
||
|
Space between tie bars(H×V) |
mm |
760×760 |
||
|
Max. Mould height |
mm |
790 |
||
|
Min. mould height |
mm |
280 |
||
|
Opening stroke |
mm |
770 |
||
|
Distance between mould platens |
mm |
1560 |
||
|
Ejector stroke |
mm |
195 |
||
|
Ejecting force |
kn |
113.4 |
||
|
Ejectors number |
pc |
13 |
||
|
Power of pump motor |
Kw |
45 |
||
|
Volume of oil tank |
L |
850 |
||
|
Dimension(L×W×H) |
m |
7.5×2.1×2.45 |
||
|
weight |
ton |
20 |
||

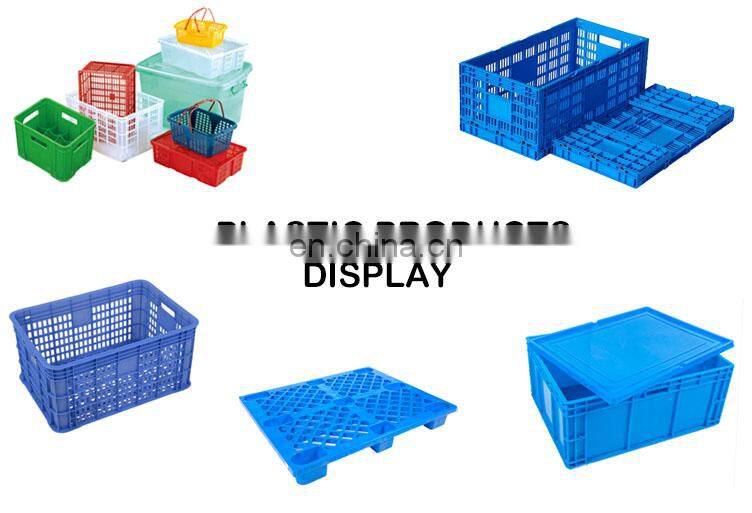

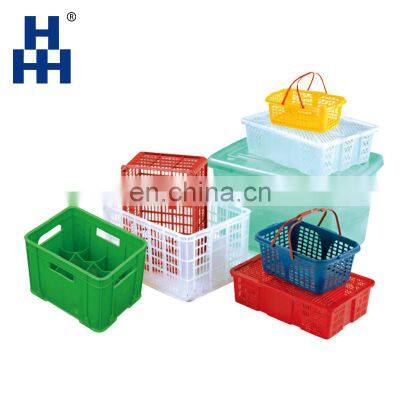

Soft Shell Crab Container box Display

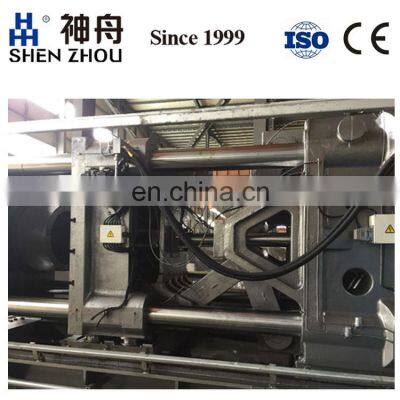

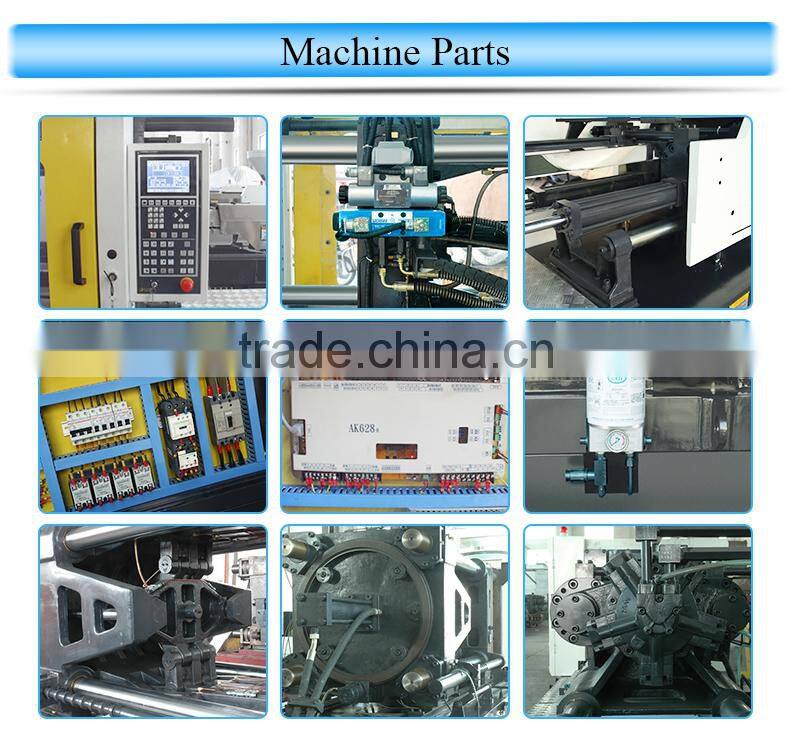

CLamping units of Plastic storage box making machine
Injection units of Plastic storage box making machine
Hydraulic units of Plastic storage box making machine
Control units of Plastic storage box making machine
