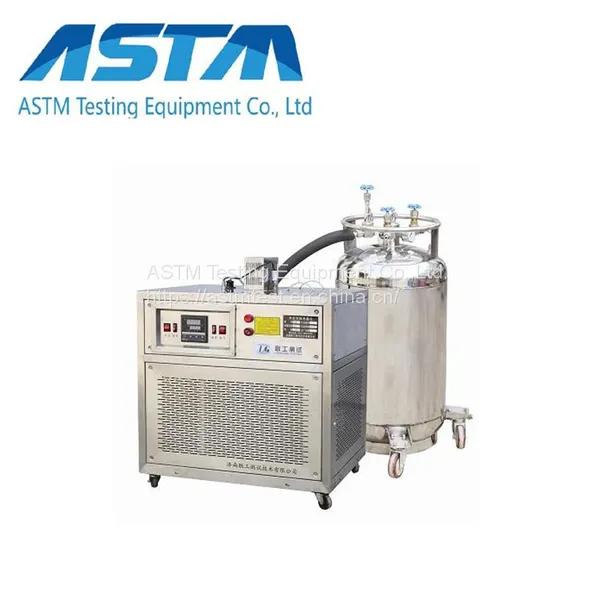

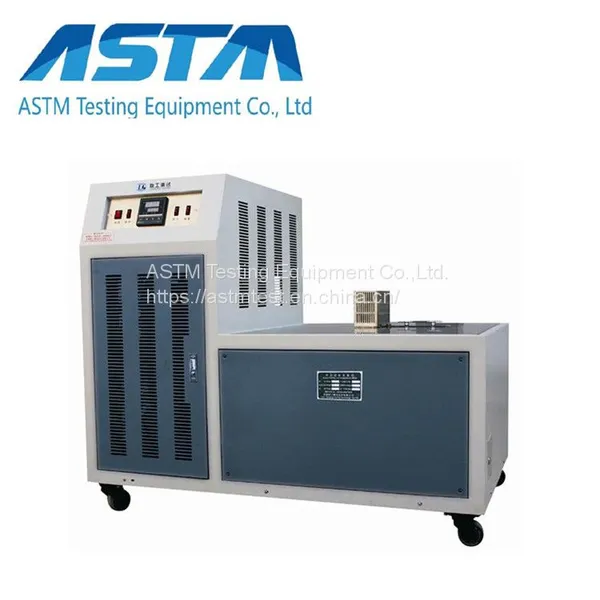

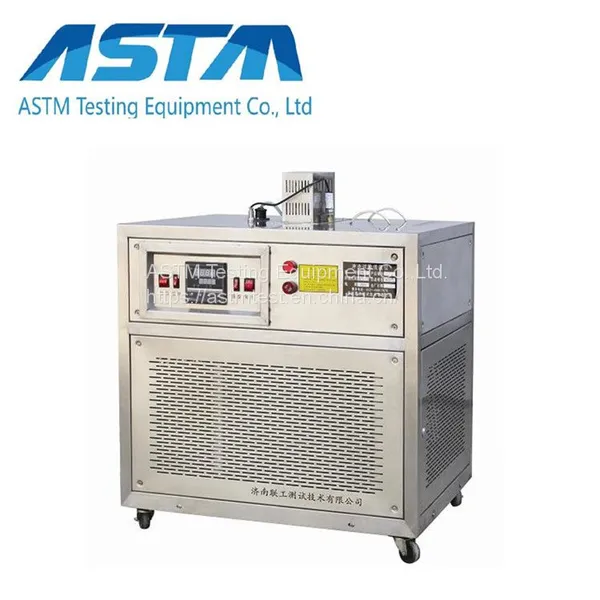

Impact Testing Machine Usage Charpy Impact Test Low Temperature Cooling Device CDW-40
US$ 4000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ASTM
Place of Origin:
China
Model Number:
CDW-40/60/80/100/196
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Related Products
-
Climate Chamber / High-low Temperature Test Chamber / Environmental Chamber for Impact TestUS$ 4000 - 15000MOQ: 1 Set -
Factory Price Minus Degree Low Temperature Meter for Charpy Impact Test Usage CDWUS$ 4000 - 15000MOQ: 1 Set
-
CDW Educational Lab Equipments Used Charpy Low Temperature Cooling BathUS$ 4000 - 15000MOQ: 1 Set
-
300J Computer Charpy V Notch Pendulum Impact Tester JB-300WUS$ 5000 - 10000MOQ: 1 Set
-
ASTM 300J Impact Test Equipment Usage Charpy Pendulum Impact Tester JB-300WUS$ 5000 - 10000MOQ: 1 Set
Brand Name
ASTM
Place of Origin
China
Model Number
CDW-40/60/80/100/196
Power
Electronic
Usage
Impact Testing Machine
Usages and characteristics:
1.CDW-type low-temperature impact testing meter is the compressor refrigeration of the latest research and development in accordance with cooling requirement of GB/T 229-2007 "Metal Charpy Gap Impact Test Method".
2.This equipment used cascade compressor refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB/T229-2007, EN10045-2, E23-02A of the provisions.
3.The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Main technical parameters
| Specifications | CDW-40 | CDW-60 | CDW-80 | CDW-80T | CDW-100(110)T | CDW-196 |
| Temperature range | Room temperature ~-40°C | Room temperature ~-60°C | Room temperature ~-80°C | Room temperature ~-100(110)°C | Room temperature ~-196°C | |
| Temperature control accuracy | ±0.5°C | ±2°C | ||||
| Cold room volume | 275*160*120mm | |||||
| Dimensions(mm) | 910*510*920 | 710*600*740 | 1300*800*1000 | 710*600*740 | ||
| Box material | Iron Spray | Stainless steel | Iron Spray | Stainless steel | ||
| Specimen quantity | No less than 60 | |||||
| Mode of refrigeration | Compressor refrigeration | Liquid nitrogen refrigeration | ||||
| Cooling medium | Ethanol or other unfrozen liquid | Liquid nitrogen | ||||
| Power | 1.8kW | 2.3kW | 2.5kW | 3kW | 100W | |
| Remarks: The cold room volume can be specially manufactured according to the customers requirement. | ||||||
