Product Description

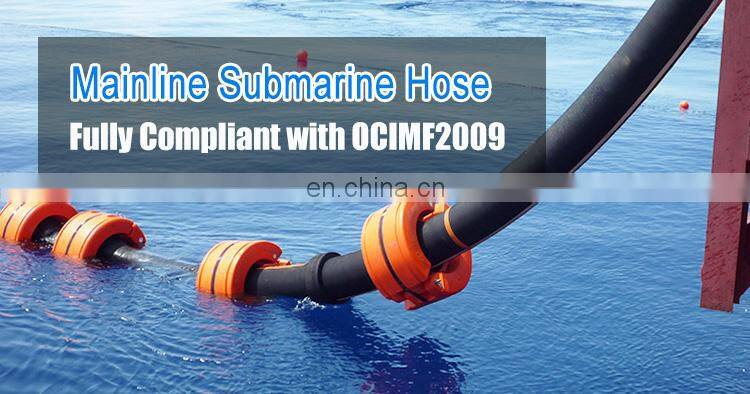

Mainline Submarine Hose
Submarine transfer hoses for Oil & Gas offshore applications, as well as dock lpg hoses. The Submarine hoses combine strength with flexibility, its design having had to take into consideration many factors such as water depth, tide, buoy excursions and wave patterns. Hongruntong hose offers solutions for the offshore transport of crude oil and petroleum products up to 50% aromatics on marine docks, ships and barges in normal pressure for terminals worldwide.
Product Description
Specification
Oil Resistant Liner | NBR |
Main Reinforcement | Steel wire cord skimmed with rubber |
Wire Helix | Embedded in synthetic rubber |
Reinforcing Fabric Plies | Nylon |
Cover | Abrasion resistant rubber in Chloroprene |
Fitting | Built-in |
Working Pressure | Psi 275 |
Min.Burst Pressure | Psi 1375 |
Minimum Bending Radius | 4 x id |
Max.Temp Elong | % 2,5 |
Max.Perm Elong | % 0,7 |
Aromatic Resistance Up to | % 50 |
Fluid Temp Range | ℃ -20; +82 |
Ambient Temp Range | ℃ -29; +52 |
Flow Velocity Up to | m/s 21 |
Electrically as Reuqest | Continuous / Discontinuous |
