Low Reaction Floating and Rotation Floating Foam Donut Fender on Mono Pile
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Energy Absorption UHMW Pads Monopile Donut Rubber Fender System For Corner Protection
-
Excellent Quality Marine Fender Fender Reinforced Cylindrical Rubber Fender
-
Inflatable Yokohama Ship Fenders Safety Standard Size For LNG Vessel
-
1.5*3 Inflatable Ship Marine Boat Floating Dock Pneumatic Rubber Yokohama Fender for Oil Platforms
-
BV ABS Floating Yokohama Pneumatic Ship Marine Rubber Buoy Fenders
-
ISO 17357 Approved Quality Fast Delivery 0.5 Bar Boat Floating Dock Pneumatic Rubber Fender
Product Description

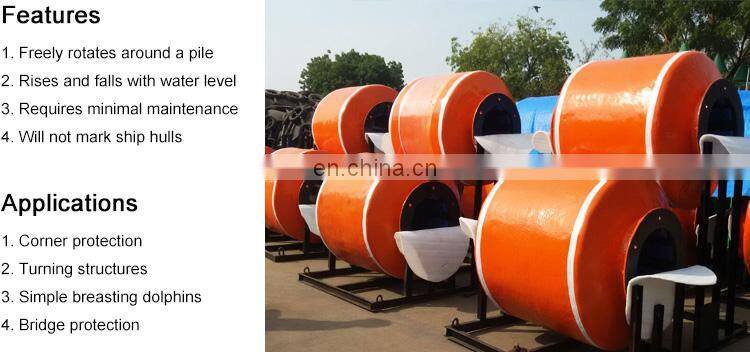

Donut Fenders

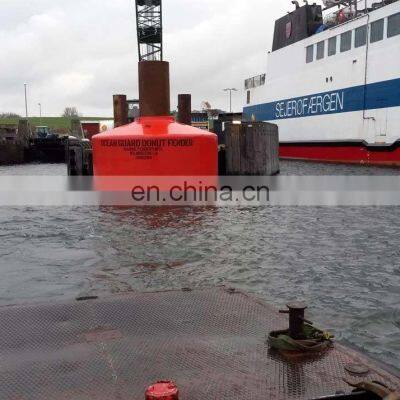

Donut Fenders are an effective solution for simple berthing dolphins, guiding and turning structures. The buoyant Donut floats up and down a single tubular pile and freely rotates to help align or redirect ships. The internal casing has long-lasting, low-friction bearings which need minimal maintenance. The foam is unsinkable and cannot burst or deflate. The Donut skin is durable polyurethane reinforced with continuous nylon filaments.
Product Description
Specification
Model | Fender Size D | Max. pile dia. | Energy | Reaction | ||||
Donut | [mm] | [mm] | [kNm] | [kN] | ||||
HM-DF01 | 1,270 | 610 | 7.2 | 116 | ||||
HM-DF02 | 1,450 | 710 | 9.2 | 131 | ||||
HM-DF03 | 1,520 | 762 | 10.5 | 140 | ||||
HM-DF04 | 1,780 | 914 | 14.1 | 162 | ||||
HM-DF05 | 1,910 | 995 | 16.4 | 175 | ||||
HM-DF06 | 2,030 | 1,067 | 18.6 | 186 | ||||
HM-DF07 | 2,210 | 1,185 | 22.3 | 204 | ||||
HM-DF08 | 2,290 | 1,219 | 23.6 | 210 | ||||
HM-DF09 | 2,490 | 1,345 | 28.0 | 229 | ||||
HM-DF10 | 2,540 | 1,372 | 29.3 | 234 | ||||
HM-DF11 | 2,790 | 1,524 | 35.3 | 256 | ||||
HM-DF12 | 2,790 | 1,639 | 40.1 | 273 | ||||
HM-DF13 | 3,050 | 1,676 | 42.1 | 280 | ||||
HM-DF14 | 3,300 | 1,829 | 49.5 | 304 | ||||
HM-DF15 | 3,450 | 1,933 | 54.6 | 319 | ||||
HM-DF16 | 3,530 | 1,981 | 57.2 | 327 | ||||
HM-DF17 | 3,810 | 2,134 | 65.9 | 350 | ||||
HM-DF18 | 3,960 | 2,241 | 72.1 | 366 | ||||
HM-DF19 | 4,060 | 2,286 | 75.1 | 374 | ||||
HM-DF20 | 4,220 | 2,388 | 81.3 | 389 | ||||
*Note: Various sizes can be customized according to the requirements. | ||||||||
