Home > Products > Hoses > High Pressure Offshore Marine 21 Bar Mainline Double Carcass Flexible Submarine Hoses Marine Dock

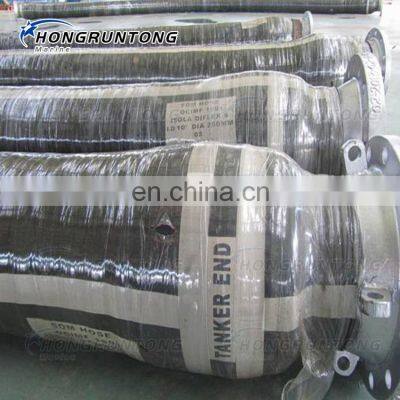

High Pressure Offshore Marine 21 Bar Mainline Double Carcass Flexible Submarine Hoses Marine Dock
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ASME B 16.5 Class 150lb FPSO One End Reinforced Half Double Carcass Floating Hose
-
Marine Offshore Half Floating Rubber Oil Hose With One End Reinforced
-
One End Reinforcement Offshore Mooring Half Floating Hose/ Marine Oil Hose for Tandem Ship-to-ship Offloading
-
Offshore Tail Flexible Self-floating Hose For Crude Oil Transport
-
Wear Resistance Large Diameter Flexible 6 Inch Floating Rubber Hose for Mining and Dredging
-
20 Inch 40 Feet Self Floating Flexible Dredging Discharge Marine Rubber Hose
Product Description
One End Reinforced Submarine Hose
Submarine transfer hoses for Oil & Gas offshore applications, as well as dock lpg hoses. The Submarine hoses combine strength with flexibility, its design having had to take into consideration many factors such as water depth, tide, buoy excursions and wave patterns. Hongruntong hose offers solutions for the offshore transport of crude oil and petroleum products up to 50% aromatics on marine docks, ships and barges in normal pressure for terminals worldwide.
Product Description

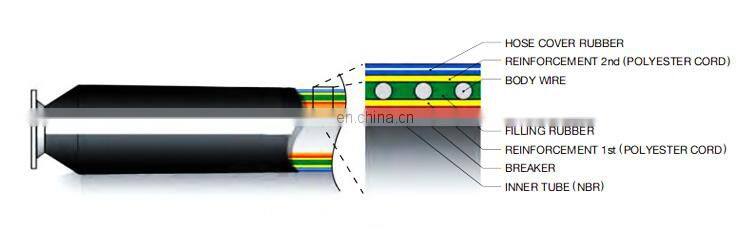

Specification
Oil Resistant Liner | NBR |
Main Reinforcement | Steel wire cord skimmed with rubber |
Wire Helix | Embedded in synthetic rubber |
Reinforcing Fabric Plies | Nylon |
Cover | Abrasion resistant rubber in Chloroprene |
Fitting | Built-in |
Working Pressure | Psi 275 |
Min.Burst Pressure | Psi 1375 |
Minimum Bending Radius | 4 x id |
Max.Temp Elong | % 2,5 |
Max.Perm Elong | % 0,7 |
Aromatic Resistance Up to | % 50 |
Fluid Temp Range | ℃ -20; +82 |
Ambient Temp Range | ℃ -29; +52 |
Flow Velocity Up to | m/s 21 |
Electrically as Reuqest | Continuous / Discontinuous |
