Product Description

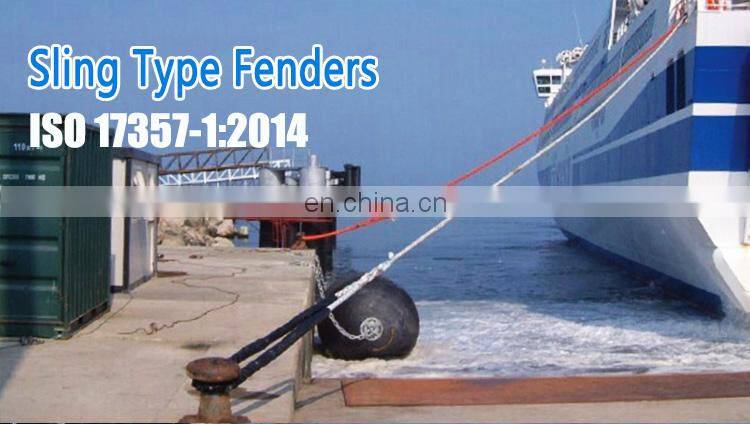

Sling Type Fenders
Pneumatic Sling Fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are manufactured according to ISO 17357-1:2014. Fenders are available in diameters ranging from 300 mm to 4,500 mm and lengths ranging from 500 mm to 9,000 mm, as well as special sizes.
Product Description
Specification
Fender Size | Initial Pressure 0.5 kg/ cm2 | Initial Pressure 0.8 kg/ cm2 | ||||||||||||
D x L | Reaction force | Energy absorption | Hull absorption | Reaction force | Energy absorption | Hull absorption | ||||||||
[mm] | [mm] | [kN] | [kNm] | [kN/m2 ] | [kN] | [kNm] | [kN/m2 ] | |||||||
500 | 1000 | 64 | 6 | 132 | 85 | 8 | 174 | |||||||
600 | 1000 | 74 | 8 | 126 | 98 | 11 | 166 | |||||||
700 | 1500 | 137 | 17 | 135 | 180 | 24 | 177 | |||||||
1000 | 1500 | 182 | 32 | 122 | 239 | 45 | 160 | |||||||
1000 | 2000 | 257 | 45 | 132 | 338 | 63 | 174 | |||||||
1200 | 2000 | 297 | 63 | 126 | 390 | 88 | 166 | |||||||
1350 | 2500 | 427 | 102 | 130 | 561 | 142 | 170 | |||||||
1500 | 3000 | 579 | 152 | 132 | 731 | 214 | 174 | |||||||
1700 | 3000 | 639 | 191 | 128 | 840 | 267 | 168 | |||||||
2000 | 3500 | 875 | 308 | 128 | 1150 | 430 | 168 | |||||||
2500 | 4000 | 1381 | 663 | 137 | 1815 | 925 | 180 | |||||||
2500 | 5500 | 2019 | 943 | 148 | 2653 | 1317 | 195 | |||||||
3300 | 4500 | 1884 | 1175 | 130 | 2476 | 1640 | 171 | |||||||
3300 | 6500 | 3015 | 1814 | 146 | 3961 | 2532 | 191 | |||||||
3300 | 10600 | 5121 | 3090 | 171 | 6612 | 4294 | 220 | |||||||
4500 | 7000 | 4660 | 3816 | 186 | 5866 | 4945 | 233 | |||||||
4500 | 9000 | 5747 | 4752 | 146 | 7551 | 6633 | 192 | |||||||
4500 | 12000 | 7984 | 6473 | 154 | 10490 | 9037 | 202 | |||||||
*Other sizes can be customized according to the requirements. | ||||||||||||||
