Lead Ingot Casting System
- China Main Port
- T/T
- 30 days
You May Like
Product Details
| Brand Name | customized | Place of Origin | China | |
| Model Number | customized | Certification | Other, customize | |
| Plating | Other, customize | Material | Other, customize | |
| Type | Machining Parts |
Product Description
Lead Ingot Casting Machine system
Overview
Lead ingot casting machine is a device to receive the refined lead and lead alloy from lead bullion through fire-refining. The machine is mainly used to cast lead liquid into mould, cool it for condensation of standard ingots, and stack the lead ingots one layer by one layer automatically. It can achieve full automatic control of the whole production process, so as to improve the production efficiency and save the labour cost, meanwhile the ingot quality is comparatively better.

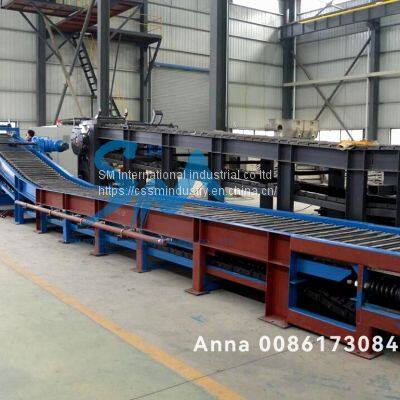

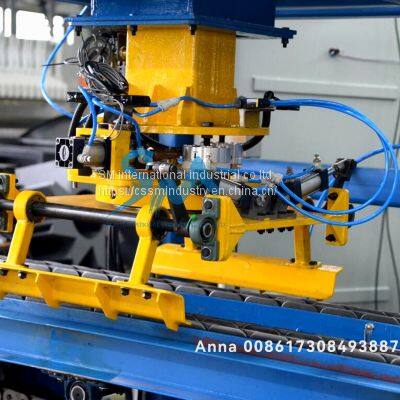

The ingot casting machine integrates function of casting, automatic stacking and packing, etc. The casting system consists of quantitative pouring unit, chain conveyor, slagging-off, bottom water cooling, ingot turnover and packing parts.

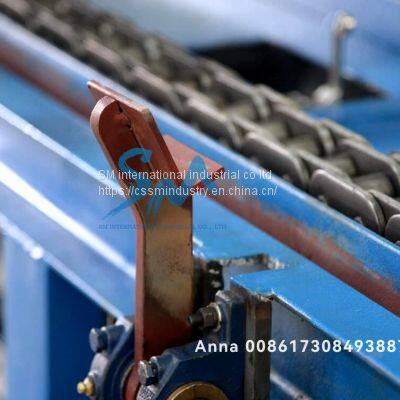

Casting module of different size are offered for different ingot specification. The casting precision is less than 1kg. The ingot is conveyed by chain for continuous and stable movement. The system works very stable without shaking and thus avoid ripple on the ingot surface.
With consideration to the customer preference and actual environment, the lead liquid is discharged through pump transfer or underflow method. Metalcess can also provide the portable casting machine.
Hot Tags: lead ingot casting machine, China, manufacturers, customized, quotation, low price, buy discount
Specifications
SM Industry provide client with two type ingot casting machine according to the project and client detailed requirement.
Mechanical ingot casting machine, this is provided for the ease of operation and high-grade safety to the operators
Manual ingot casting machine, generally manual casting machine is provided with smaller alloy refining kettles.
Pls contact us for customized proposal for your project.
30,000tpa Used Battery recycling lead ingot production line
Project location: Algeria
Equipment: Lead refining and ingot casting line
Input: 30,000tpa Lead batteries
Output: 10-12tph high purity Lead ingot
We can provide customized service for you, you are warmly welcome to visit us!
