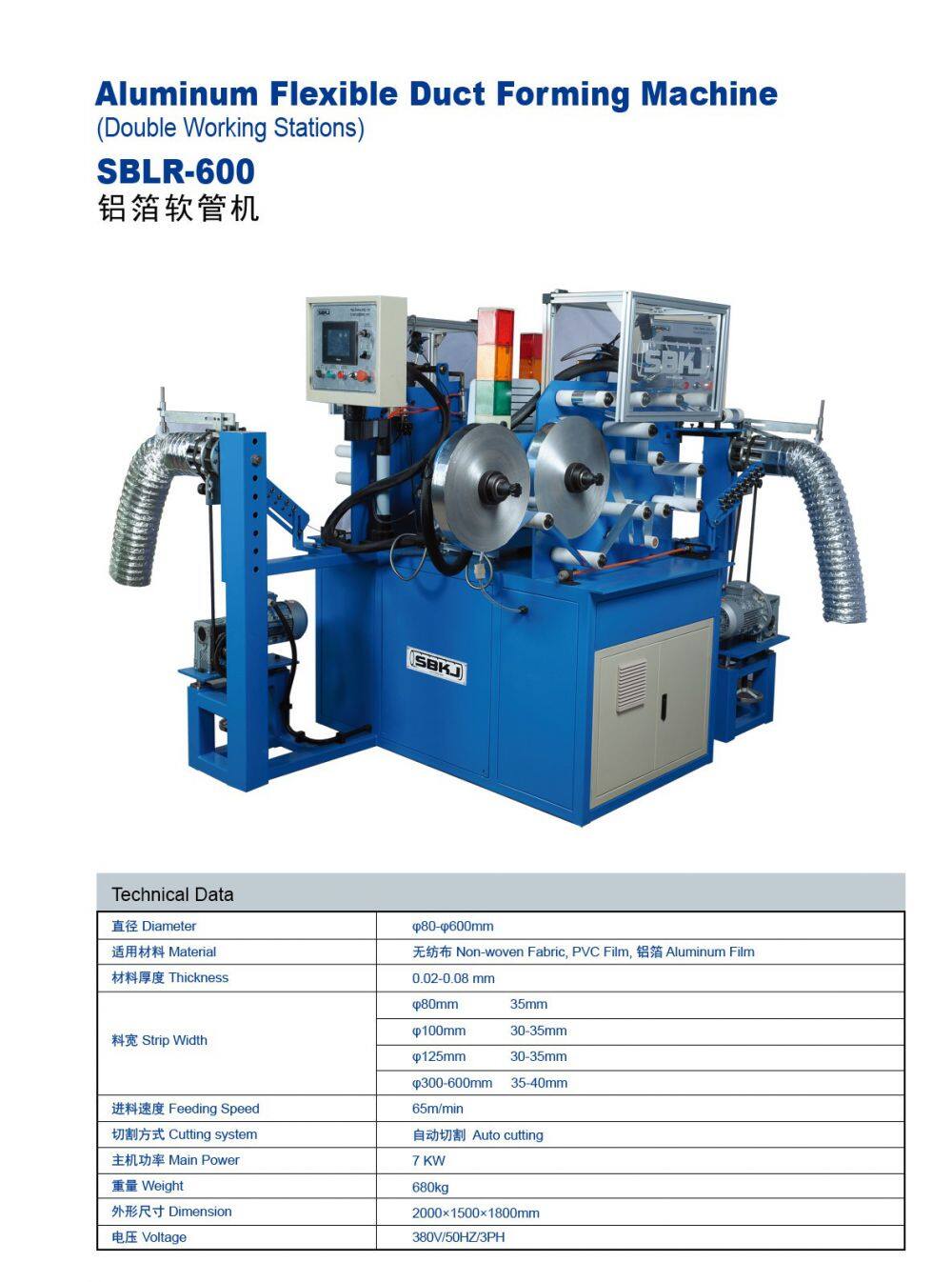

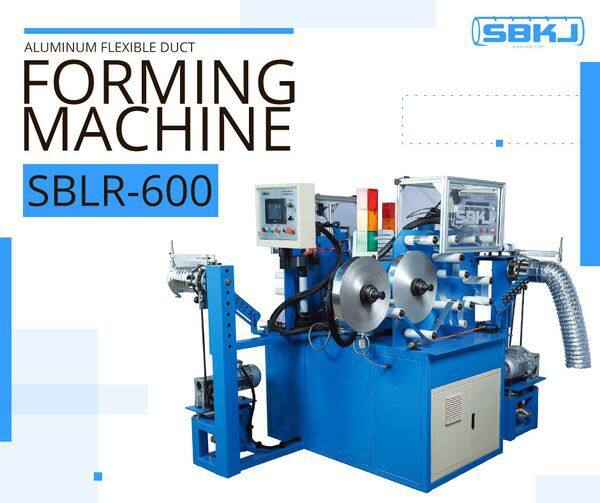

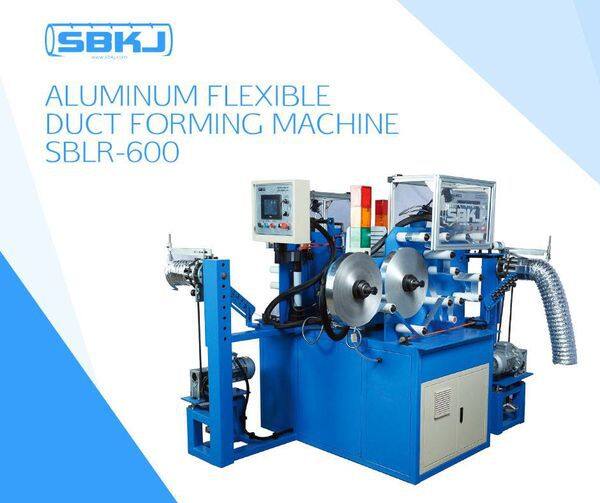

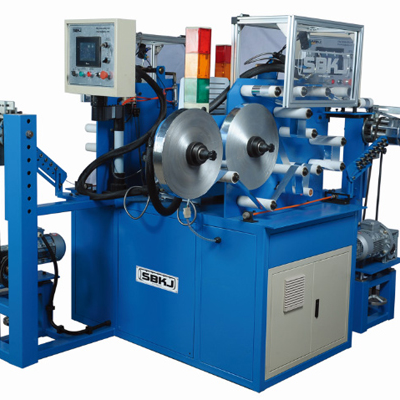

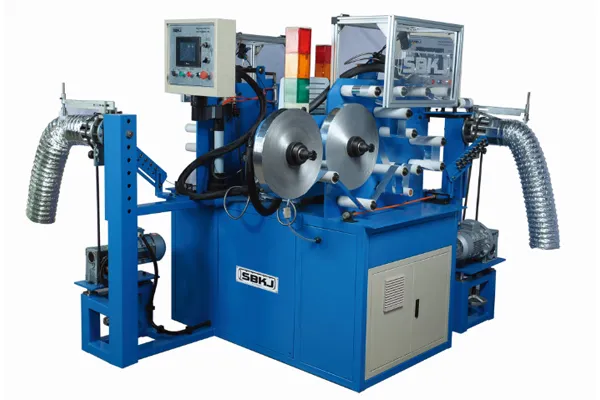

Help CenterAluminum Foil Air Duct Machine 600
Related Products
SBKJ developed this machine in house, and it is designed to produce flexible ducts using adhesive, aluminum foil, and a steel wire. Non-woven fabric and PVC can also be added during production.
Flexible ducts use steel wire as the supporting frame and are primarily installed in high rise buildings for use as a ventilation duct in central air conditioning systems, though they are also commonly used in air purifying systems and kitchen smoke vents. Flexible ducts are formed by stretching the aluminum fill, then pressing it together in a spiral pattern.
Advantages:
1. Solid adhesives replace traditional fluid adhesives, and a computer-controlled glue dispenser for a better glue temperature control, thus optimizing the adhesive’s affect to save money and reduce waste.
2. Double station machine for simultaneous operation to increase production efficiency.
3. PLC automatic cutting, cutting length is fully programmable.

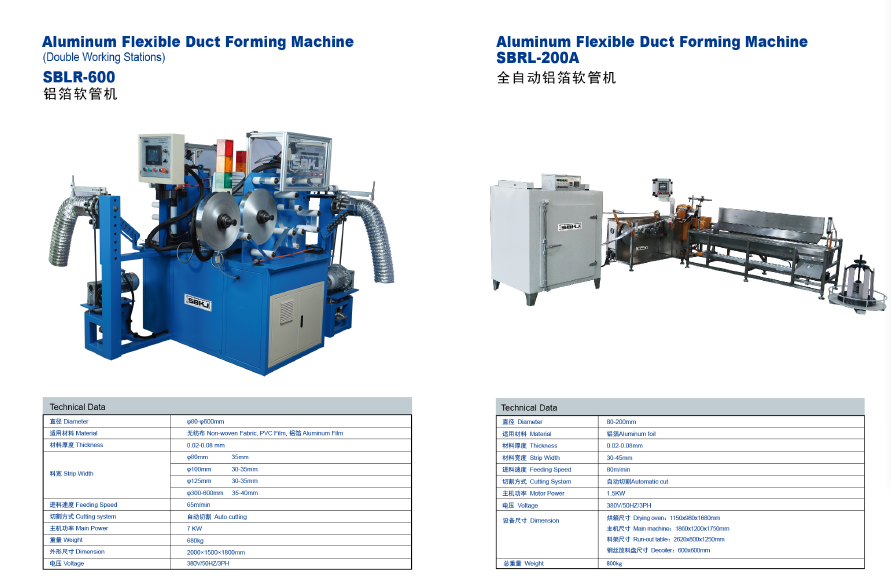

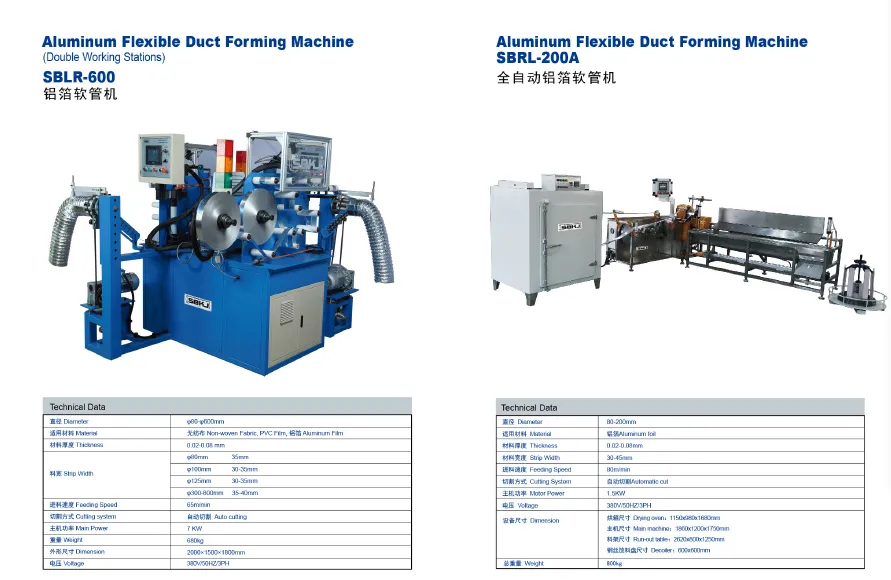

Parameter:
Diameter |
φ80-φ600mm |
Material thickness |
0.02-0.08mm |
strip width |
φ80mm 35mm |
φ100mm 30-35mm | |
φ125mm 30-35mm | |
φ300-600mm 35-40mm | |
feeding speed |
65m/min |
main power |
7Kw |
weight |
680Kg |
dimension |
2000×1500×1800mm |
Feature |
Automatic cutting and automatic compression |
