2 to 12 Floors Smart Parking Solutions/Mechanical Puzzle Parking Machines/Garage Storage Solutions

Specifications

Actuating Device

Hydraulic Pump Station + Steel Rope + Car Loading Pallet

Working Principle

The equipment is designed with multi-levels and multi-columns smart puzzle parking system. It is designed with several empty spaces for exchanging spaces for other vehicles in each PLC unit. All spaces can move vertically or horizontally by the drive of hydraulic except the space in the top level. The top level cars can only move vertically. When a car needs to park or release, all spaces under this car will move automatically to form a free channel under this space, in this case, the space will go up and down freely. When it reaches the ground, the car will be driven out and in easily.

Characteristics

Take full use of land to raise more parking spaces;

Reliable hydraulic fast drive mode;

High speed and fast pick cars;

A whole system for safety protection for cars or personals;

Saving energy and environmental protection；

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons;

Fashionable and elegant appearance will can be easily in harmony with surrounding environment.

Protection Devices:

Including under voltage protection;

Wrong or lack phase protection;

Motor overload safety protection;

Overtime/short time safety protection;

Vehicle positioning device;

Vehicle length detection and entrance photoelectric safety device;

Warning light when operation;

Emergency stop device;

Power-off brake;

Fault diagnosis display on liquid;

The limits switch status tracking detection.

Adapted Places

Residential parking lot, apartment,public parking place,hotels,schools,shopping mall,commercial center and office buildings,etc...

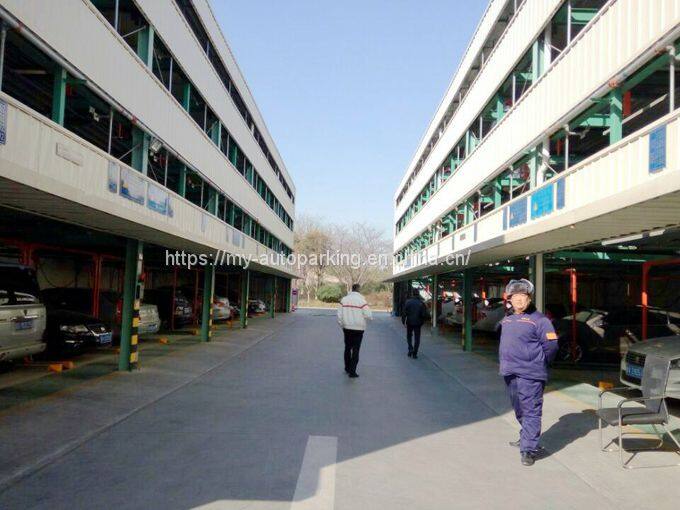

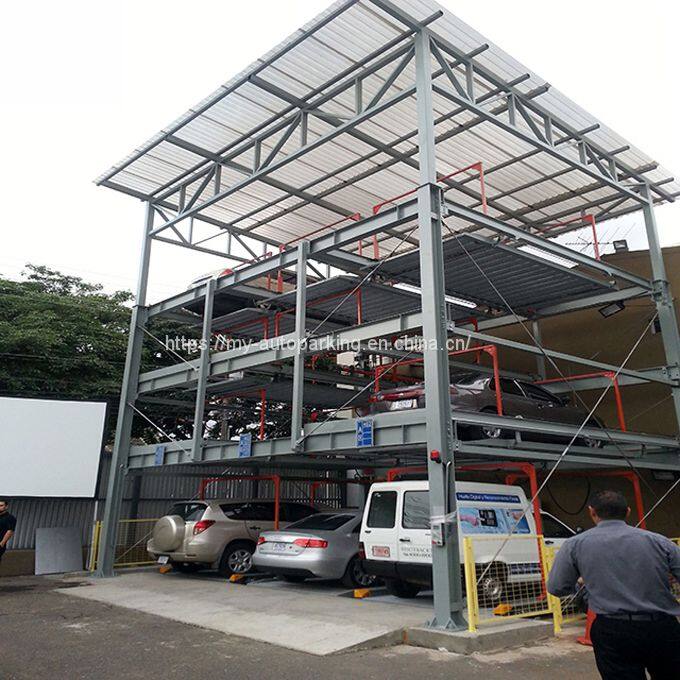

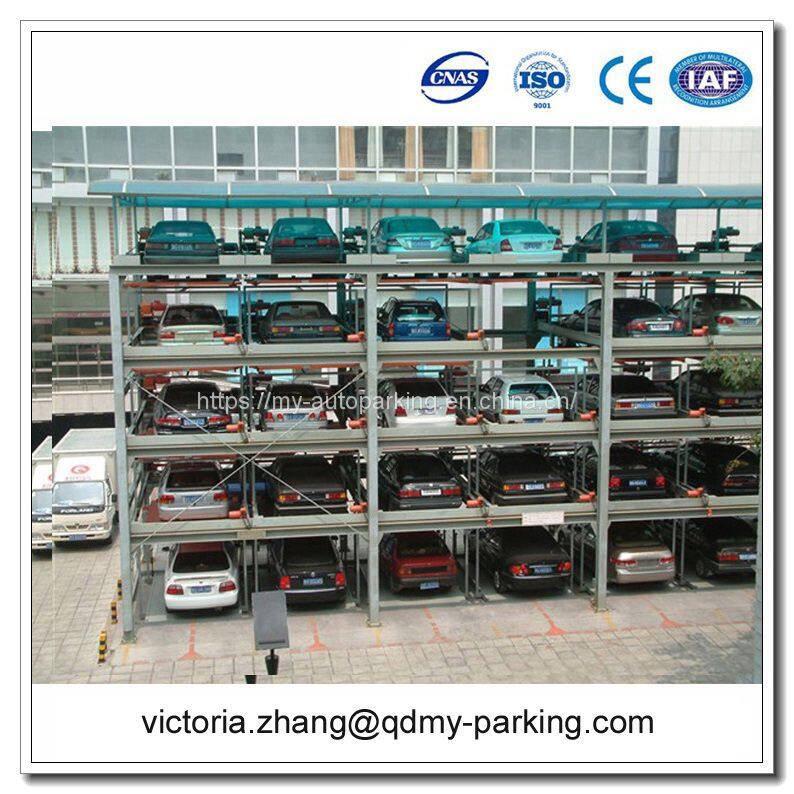

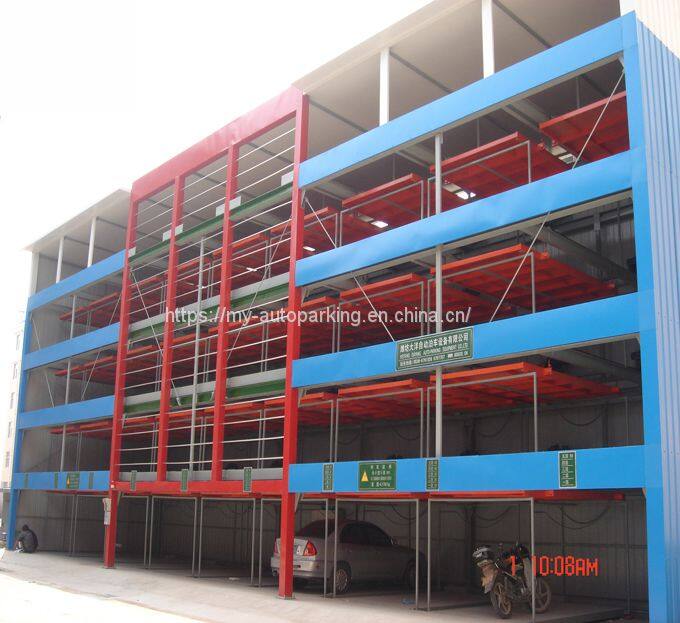

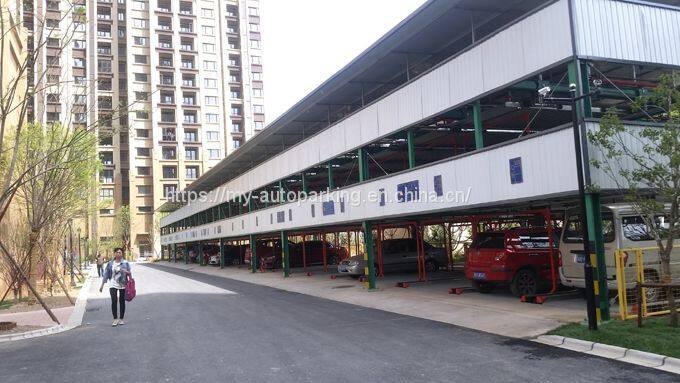

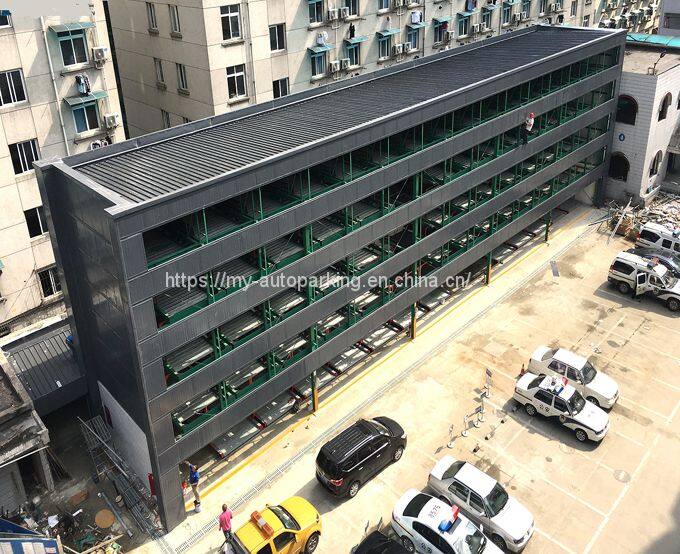

Pictures:

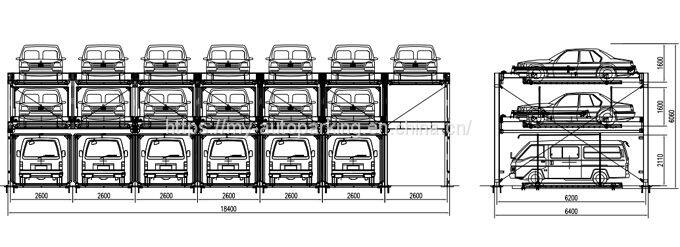

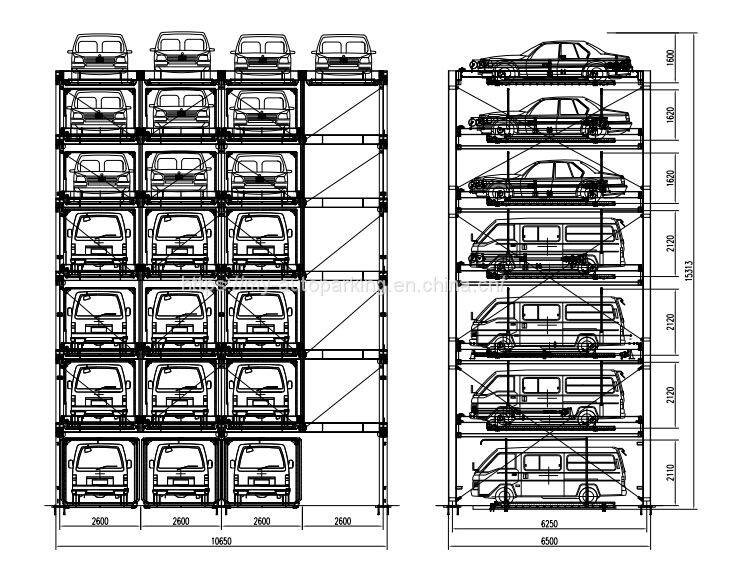

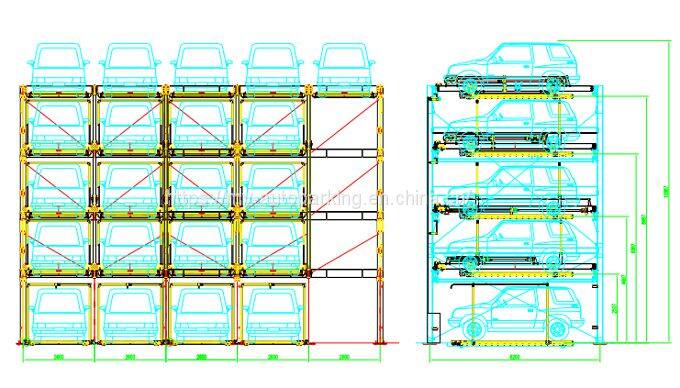

Structures:

Notes:

1. We can do 2 to 9 levels smart puzzle parking system with motor and wire rope drive mode.

2. We can do 2 to 12 levels smart puzzle parking system with hydraulic and wire rope fast drive mode.

3. Please provide us your land layout in Autocad or PDF, our engineer will make design for you and provide best parking solution for your project.
