Used 4 Post Car Lift for Sale/4 Post Car Lift/4 Post Car Lift for Sale/Four Post Car Lift/Lift Used 4 Column

Qingdao Shitai Maoyuan Trading Co.,ltd
Used 4 Post Car Lift for Sale/4 Post Car Lift/4 Post Car Lift for Sale/Four Post Car Lift/Lift Used 4 Column thumbnail-1
Used 4 Post Car Lift for Sale/4 Post Car Lift/4 Post Car Lift for Sale/Four Post Car Lift/Lift Used 4 Column photo-1
US$ 1400 - 1900 MOQ: 3 Sets
Key Specifications
Get Latest Price
Brand Name:
STMY
Place of Origin:
China
Model Number:
QDMY-608A; QDMY-608B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name STMY
Place of Origin China
Model Number QDMY-608A; QDMY-608B
Type Parking Lift
Warranty 12


Brand Name STMY
Model No.

 QDMY-608A, QDMY-608B

Type Four Post Car Parking Lift
Mode of Operations Manual buttons / Keys
Car Capacity

 ≤2700kgs; 3600kgs;4000kgs

Mode of drive

 Hydraulic and Wire Rope

Car Size (L×W×H)

  ≤5000×1850×1550 (mm)

  ≤5000×1850×1700 (mm)

  ≤5200×2000×1700 (mm)

  ≤5200×2000×2050 (mm)

Lifting Height

 1800mm; 2000mm; 2100mm

Warning device

 Yes
Safeguard device Hydraulic whole protection and anti-fall lock devices
Rise Time 50s
Fall Time 40s
Work Noise <65dB ( A )
Voltage

 110V-415V; 1 or 3 Phases

Motor Power 2.2KW
Maximum Working Pressure 16 MPa
Machine Net Weight 760kgs; 860kgs, 950kgs, 780kgs, 880kgs, 980kgs
Modes of operation

 High-grade anti-corrosion paint

Color

 Black, Red, Blue, Grey, Yellow etc.

 (Customized)

Certificate ISO9001 and CE


Working Principle:

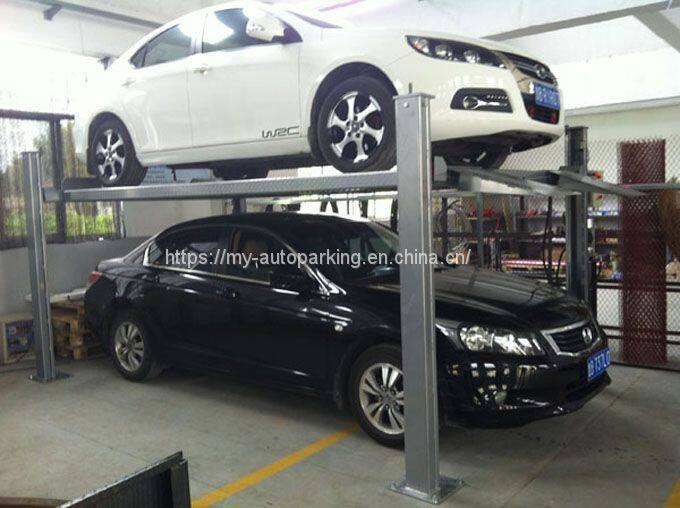

This parking system is designed 2 spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.


Description:

1. Good choice for parking  or simple repair

2. Hydraulic driven, cable lifting system

3. Manual or electric single point release

4. Automatic lock system ensure safety in different heights

5. Maintenance free load bearing

6. Immovable runway

7. Stop blocks in all posts for added safety

8. Moveable drip trays prevent pollution of vehicle on floor

9. Caster kit for moving the lift easily

10.Mold machining through the whole process so that the parts are universal and interchangeable

11.120% capacity Dynamic load text and 150% static load test

12.Italian oil seal to make sure no oil leakage

13.Electromagnetic valve with urgent manual drop function

14.Optional Manual pump for lock release in case of power off.

15.Optional 24V Control box and Electromagnetic valve.


Pictures:

Structure and Dimensions:

                                                             1.QDMY-608A 1800M

                                                                                     2.QDMY-608A 2000M

                                                                                  3. QDMY-608A 2100M

                                                                             4. QDMY-608A 1800M WIDENED

                                                                           5. QDMY-608A 2000M WIDENED

                                                                            6. QDMY-608A 2100M WIDENED

                                                                                7. QDMY-608B 1800MM

                                                                                8. QDMY-608B 2000M

                                                 9. QDMY-608B 2100M


FAQ

1. What trade term you can accept?
----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
----100%TT in advance for sample order (1-3 sets)

----30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.
3. How about the loading information and HS Code?

---The HS code is 84289020
---12 sets/20'GP container, 24 sets/40'GP container.
4. How about the lead time?
---30 days (In peak season, in 45 days),
5. Can you provide OEM service?
--Yes, we can provide OEM service according to the requirement of the client;
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide training services?
--Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
----This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.

10. What are the certificates?

---ISO90001 & CE.
