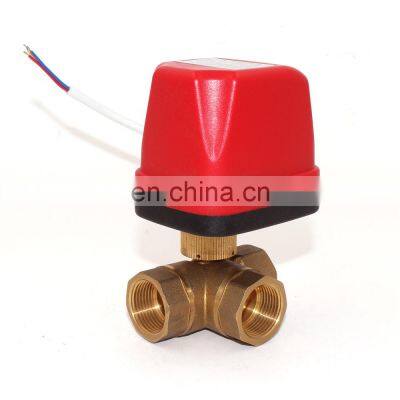

Ready to Ship Electronic Servo Motor Ball Valve Water CWX-50P
- T/T Credit Card
You May Like
-

                        AC220V DN15 DN20 DN25 2 Way 3 Wires Brass Motorized Ball Valve Electric Actuator
-

                        HVAC and FCU CWX-50P Supplies AC24v AC220V Dn40 Dn50 Quick Install Electric Ball Valve
-

                        CWX-50 P/K Ac220v Ac24v /fabricants Robinet a Tournant Spherique
-

                        HVAC 3 Way Valve Motorized Ball Valve for Fan Coil Unit HVAC Systems FCU Electric Flow Control Valve 220V 24V
-

                        Fcu Control Valve Motorized Ball Valve for Fan Coil Unit for HVAC Systems FCU Electric Flow Control Valve 220V 24V
-

                        Cwx50p Electric Water Shut off Automatic Ball Valve With Electric Actuator
Product Description

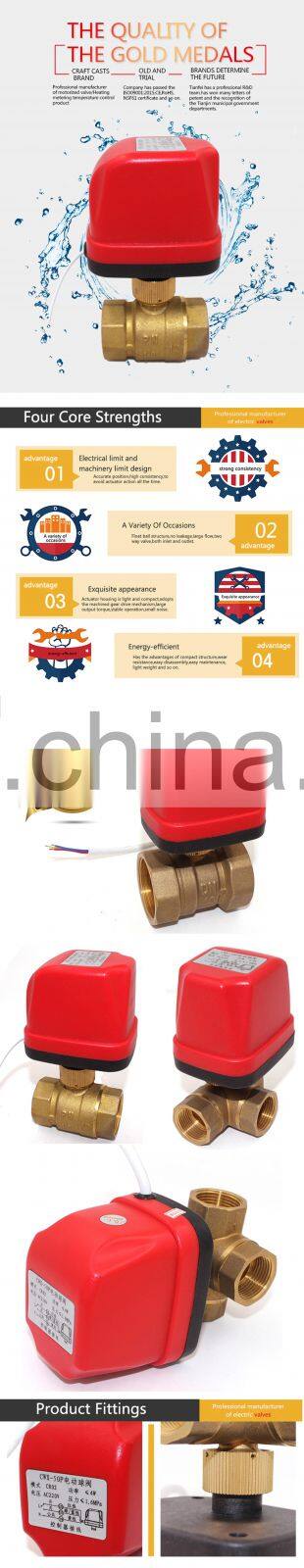

Quick Install AC 24V 220V solenoid water valve CWX-50P
1.This quick and easy mounting valve is specially suitable for on-off control Of HVAC, coil fan water control system.
2. It is composed of two parts - electric actuator and valve body, which makes it easy to install, troubleshoot and maintain.
3. Synchronous electric drive ensures stable performance; built-in limit switches enable automatic power-off when the valve is fully open or fully closed.
4. Brass forged valve body makes it durable in use.
5. Using a large electric motor, the actuator has a high output torque of 3.5Nm.

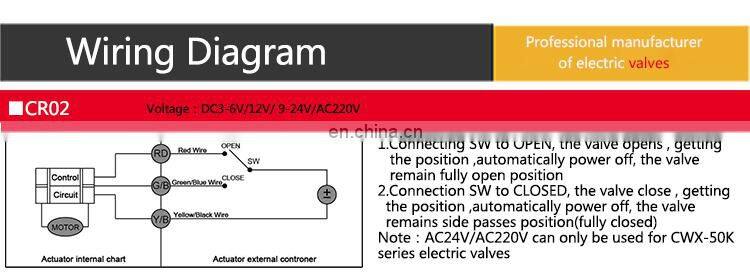

| Voltage | Wiring mode | Nominal pressure | Output torque | Connection end |
| AC220V | CR02 | 1.6Mpa | 3.5NM | BSP thread |
| AC24V | ||||
| Power consumption | Action time | Close differential pressure | Medium temperature | Wire length |
| 6VA | <15S | <0.4Mpa | 2-90℃ | 15cm |

| Connection | Diameter | φd | L | H | Weight |
| Both female thread | DN20 | 17 | 60.6 | 50 | 0.58 |
| DN25 | 23 | 70 | 64 | 0.69 | |
| DN32 | 27 | 75 | 67 | 0.86 |

Located in Tianjin, China, Tianjin Tianfei High-Tech valve company have been specializing in electric ball valve and butterfly valve industry for 12 years. Equipped with a professional R & D team, we have won a number of technology patents. Our products have adopted ISO9000:2000, CE, ROHS, NSF61 certifications. With reliable quality and competitive prices, they have earned a good reputation among the customers from all over the world.
Our motto is Innovation, Simplification, Efficiency. Our mission is to meet customers’ needs with quality products and professional service. We look forward
to building a sustainable and mutually beneficial cooperative relationship with you!

1. Are you manufacturer or trading company?
We are manufacturer, we have been manufacturing electric valve for more than 12 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample order needs about 3 working days. For bulk order, it depends on the quantity.
5..Would you have a discount if l have a large order?
A; Yes, we could offer different discounts according to the order quantity.
6.Where is the factory located?
Tianjin, China. Welcome to visit us.
