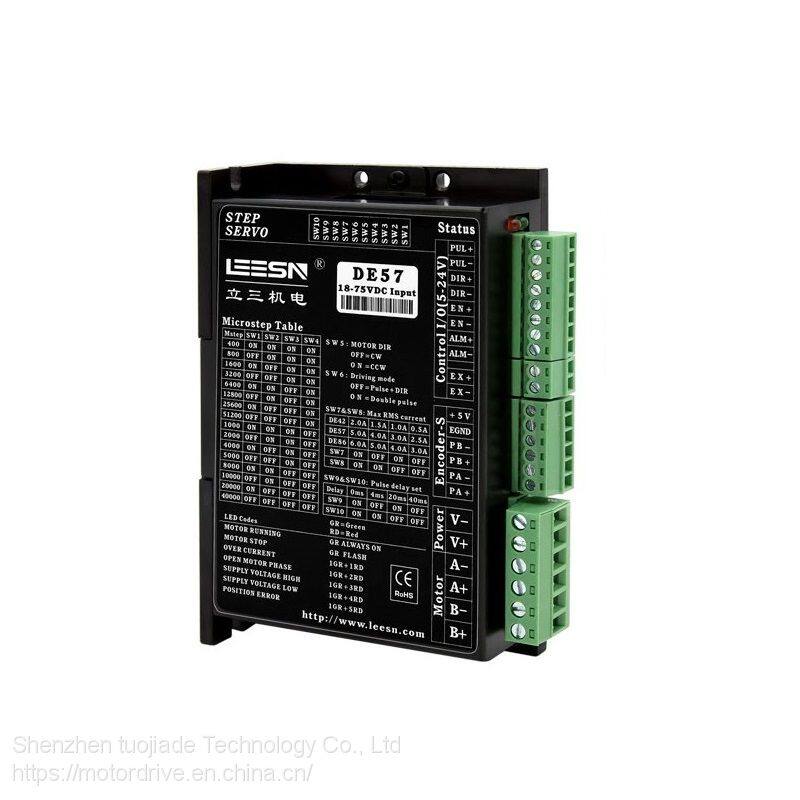

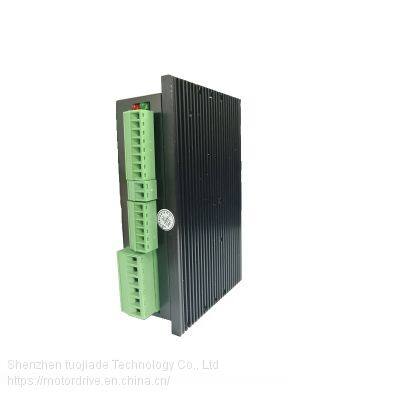

Help CenterLisan Electromechanical DE57 Full Closed Loop Stepper Motor Driver High Speed Response Large Torque Leesn Servo Motor Controller
Related Products
-
Lisan Electromechanical DE57BA Full Closed Loop Stepper Motor Driver High Speed Response Large Torque Leesn Servo Motor ControllerCNY 350 - 380MOQ: 1 Piece -
Lisan Electromechanical DE42 Full Closed-loop Stepper Motor Driver Multiple Control Modes LEESN Servo Motor ControllerCNY 280 - 300MOQ: 1 Piece
-
Leesn Lisan Electromechanical DE57T Closed-loop Stepping Driver RS485 Communication Control DriverCNY 420 - 450MOQ: 1 Piece
-
Lisan Electromechanical DE86 Full Closed Loop Stepper Motor Driver High Speed Response Large Torque Leesn Servo Motor ControllerCNY 360 - 380MOQ: 1 Piece
-
Supply DE42 Lisan Electromechanical 42 Closed-loop Stepping Servo Motor Driver, Genuine by Leesn ManufacturerCNY 280 - 300MOQ: 1 Piece

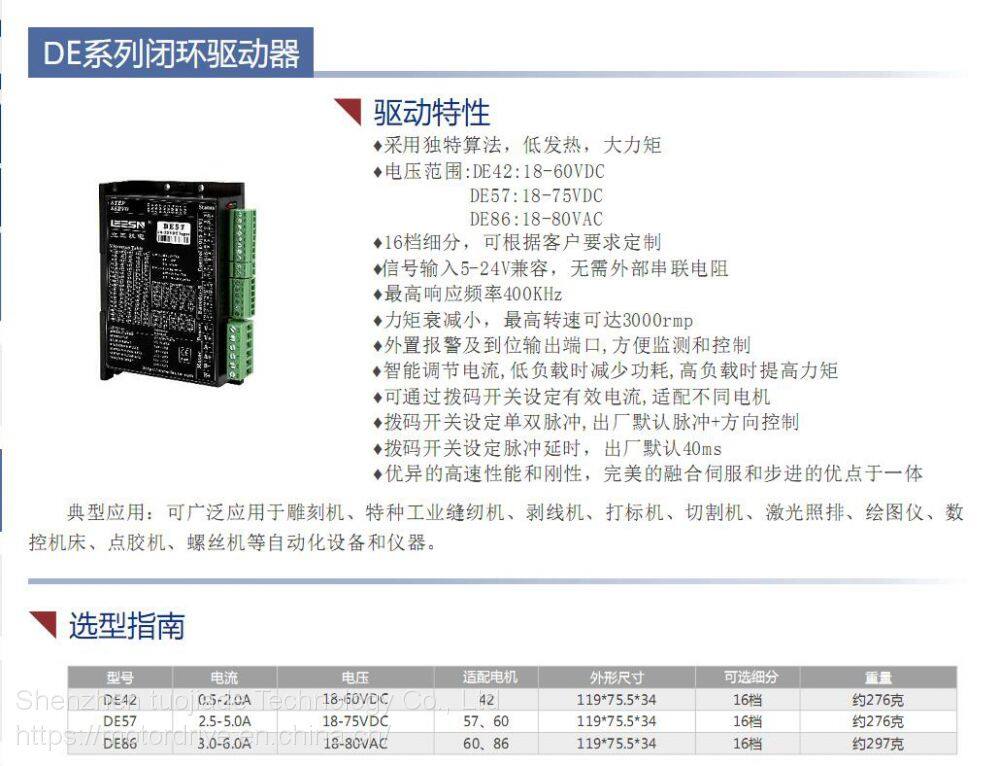

♦ Adopt unique algorithm, low heating and large torque
♦ Voltage range: DE57:18-75VDC
♦ 16 file segmentation, which can be customized according to customer requirements
♦ The signal input is 5-24v compatible, and no external series resistance is required
♦ Maximum response frequency 400kHz
♦ The torque attenuation is small, and the maximum speed can reach 3000rmp

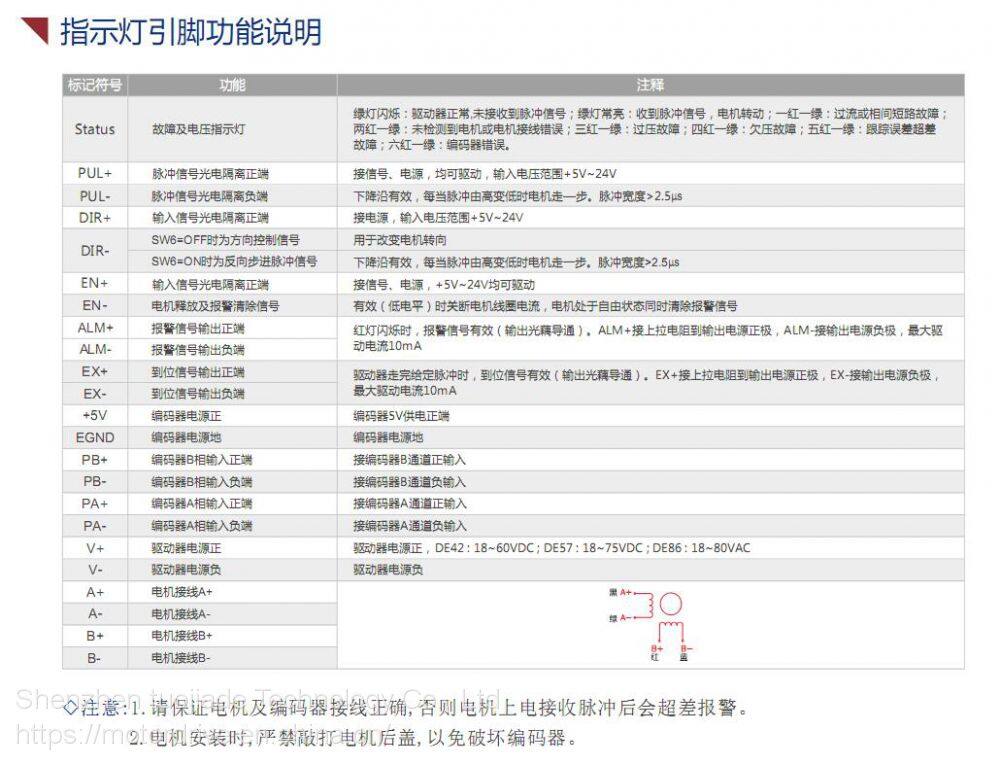

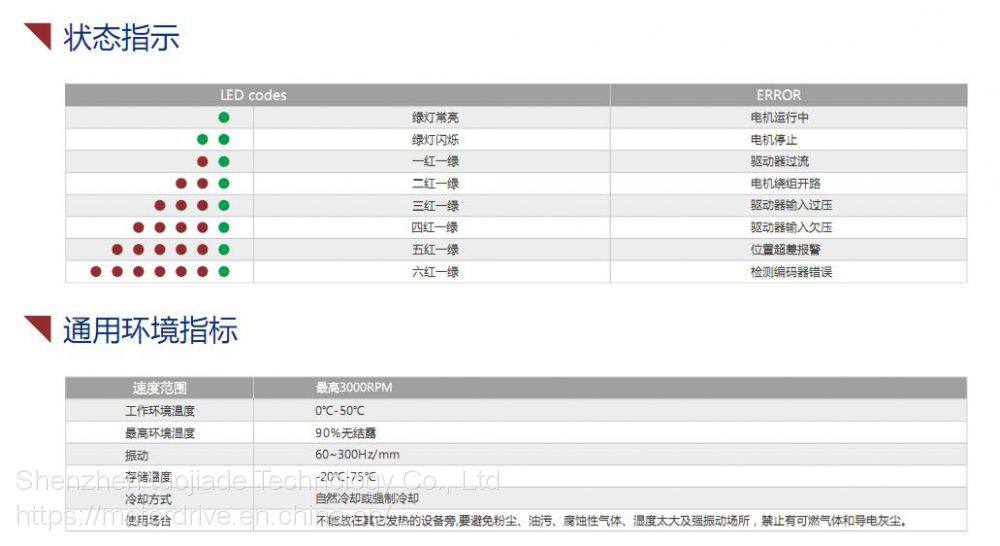

♦ External alarm and in place output port are convenient for monitoring and control
♦ Intelligent current regulation reduces power consumption at low load and increases torque at high load

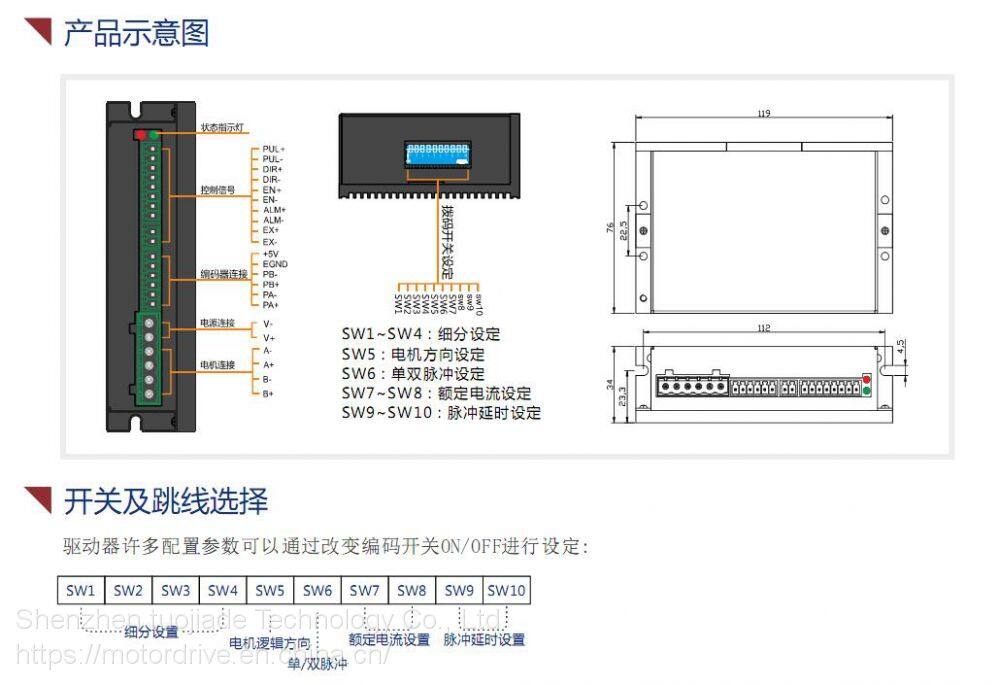

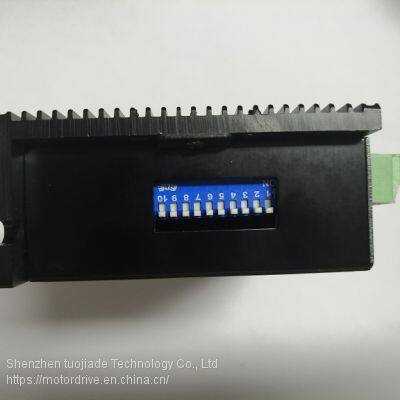

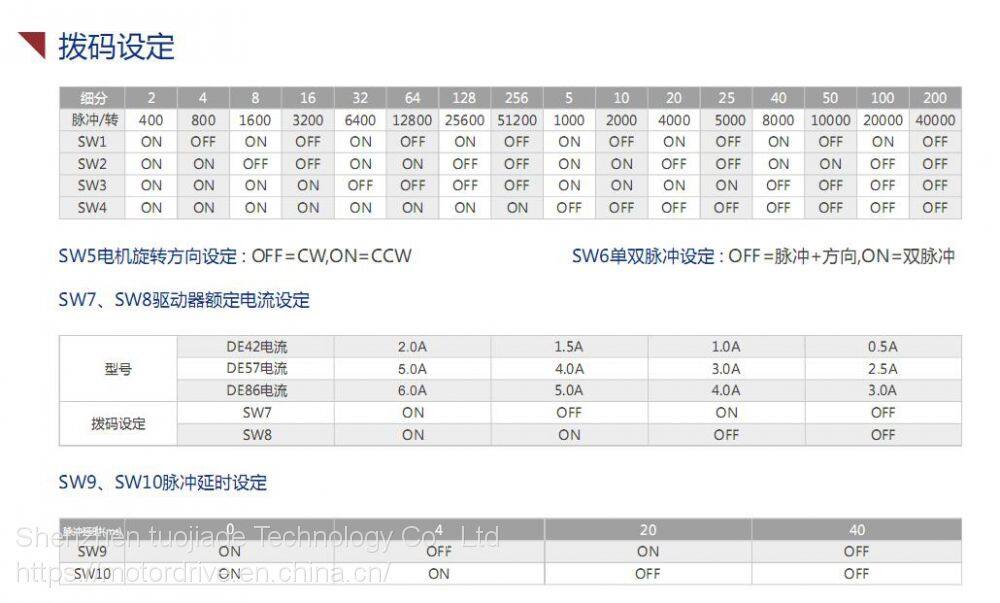

♦ The effective current can be set through the dial switch to adapt to different motors
♦ The dial switch sets single and double pulses, and the factory default pulse + direction control
♦ The dial switch sets the pulse delay, and the factory default is 40ms

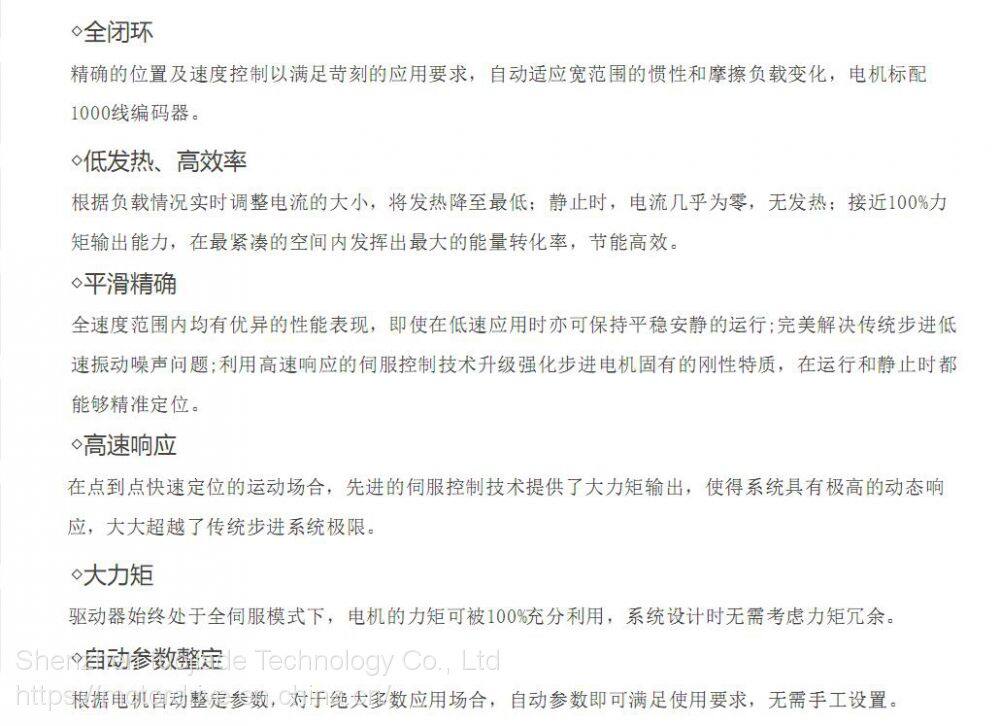

♦ Excellent high-speed performance and rigidity, perfect integration of servo and stepping advantages in one
Typical applications: it can be widely used in engraving machines, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, laser Phototypesetting, plotters and digital cameras
Control machine tools, dispensing machines, screw machines and other automatic equipment and instruments.
