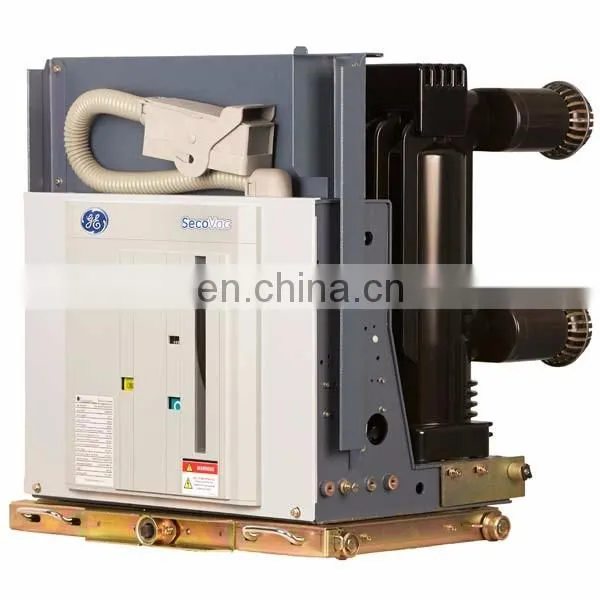

VB2 Plus-17.5/T1600-50 GE(AEG) Vacuum Circuit Breaker GE(AEG) VCB
Introduction of Vacuum Circuit Breaker
GE Energy – Industrial Solutions, has launched a new series of vacuum circuit breakers called SecoVac VB2. SecoVac vacuum circuit breakers are withdrawable type circuit breakers rated for a voltage of 12kV and a maximum current of up to 4000A for application in Indoor Switchgear Panels. The product conforms to IEC62271-100 standard and becomes the optimal choice for control and protection in MV Transmission and Distribution System.
Characteristics and Advantages
• Use of high-end 3D computer aided design (Pro-Engineer) and dynamic simulation optimal design (Pro-Mechanica)
• Reduced partial distribution and local overheating limited by optimizing electromagnetic field distribution
• World leading-edge miniature interrupter chamber applying axial rotating magnetic field vacuum interrupting principle,
with the extremely stable breaking performance
• Perfect insulation material with higher creepage distance and electrical clearance greater than requirements of IEC
standards and successful clearance of the condensation test which is applicable for operation under harsh environment

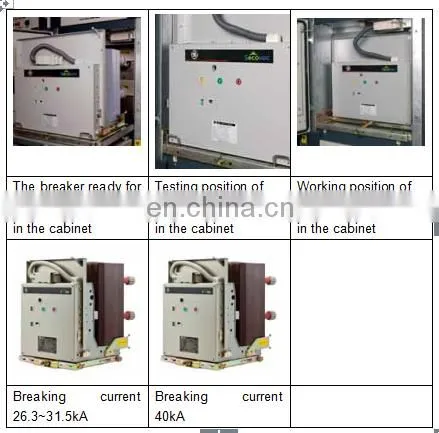

• With reliable grounding mode, which ensures earth continuity of breaker from service position to test position
1. Vacuum arc-extinguish chamber
2. Radiator (for 2500A and above)
3. Insulating hood
4. Switching-in spring
5. Switching-out spring
6. Contactor spring
7. Main driveshaft
8. Insulating rod
Technical data for VB2Plus-17.5KV Vacuum circuit breaker
| Type | Model No. | U [kV] | In [A] | Isc [kA] |
| VB2 Plus17.5 | VB2 Plus-17.5/T630-25 | 17.5 | 630 | 25 |
| VB2 Plus17.5 | VB2 Plus-17.5/T630-31.5 | 17.5 | 630 | 31.5 |
| VB2 Plus17.5 | VB2 Plus-17.5/T1250-25 | 17.5 | 1250 | 25 |
| VB2 Plus17.5 | VB2 Plus-17.5/T1250-31.5 | 17.5 | 1250 | 31.5 |
| VB2 Plus17.5 | VB2 Plus-17.5/T1250-40 | 17.5 | 1250 | 40 |
| VB2 Plus17.5 | VB2 Plus-17.5/T1600-40 | 17.5 | 1600 | 40 |
| VB2 Plus17.5 | VB2 Plus-17.5/T2000-40 | 17.5 | 2000 | 40 |
| VB2 Plus17.5 | VB2 Plus-17.5/T2500-40 | 17.5 | 2500 | 40 |
| VB2 Plus17.5 | VB2 Plus-17.5/T3150-40 | 17.5 | 3150 | 40 |
| VB2 Plus17.5 | VB2 Plus-17.5/T4000-40 | 17.5 | 4000 | 40 |
Packing & Shipping:
Payment methods:
Samples order: Paypal or Western Union
Main order: T/T
Delivery time:
Small orders: 5-7 working days
Bulk orders:15-30 working days
Our Company information:
Wuhan WOFOTO Electric CO.,LTD
belongs to CHINA WOFOTO GROUP CO.,LIMITED
-Wuhan WOFOTO Electric Co.,Ltd
Main Sales: Generator circuit breaker, SF6 circuit breaker, SF6 Disconnect Switches, Vacuum Circuit Breaker, Vacuum Contactor, SF6-Ring Main Unit, Automatic Transfer Switch, Relay protection devices, Distribution transformer, Air circuit breaker.
Brands:Schneider, ABB, SIEMENS, GE
Website:
WhatsApp:+86 13797009877
skype:wofotocn
WOFOTO is willing to work with friends worldwide together and win-win
Let WOFOTO embrace the World!
