PH Type Steel Electric Power Link Fitting Extension Ring / Link Chain
- Tianjin port
- T/T L/C
You May Like
-
ADSS Cable Fitting Fasten Galvanized Electric Pole Embrace Hoop Pole Clamp
-
Aluminum Alloy Fiber Optic Cable Dead End Clamp / Anchor Clamp
-
UT Adjustable Type U Bolt Clamp/wedge Clamp
-
DT Type Cable Lug QLG Power Fitting Copper Termination Lug High Conductivity Lugs
-
Manufacture Galvanized D Bracket D Ironmp
-
High Quality DIN1480 Galvanized Drop Forged Eye Hook Turnbuckle
Product Details
| Brand Name | Chencheng | Place of Origin | China | |
| Model Number | PH type |
Product Description

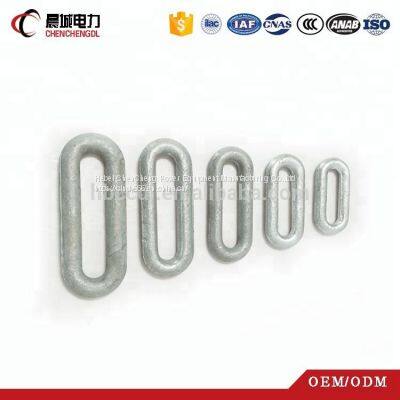

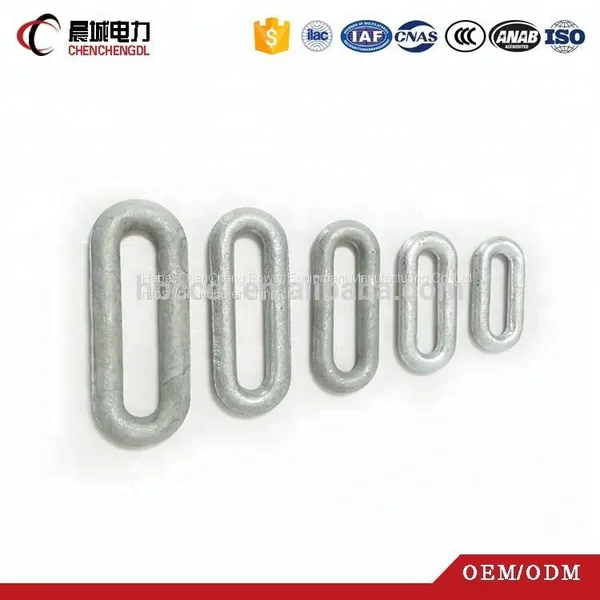

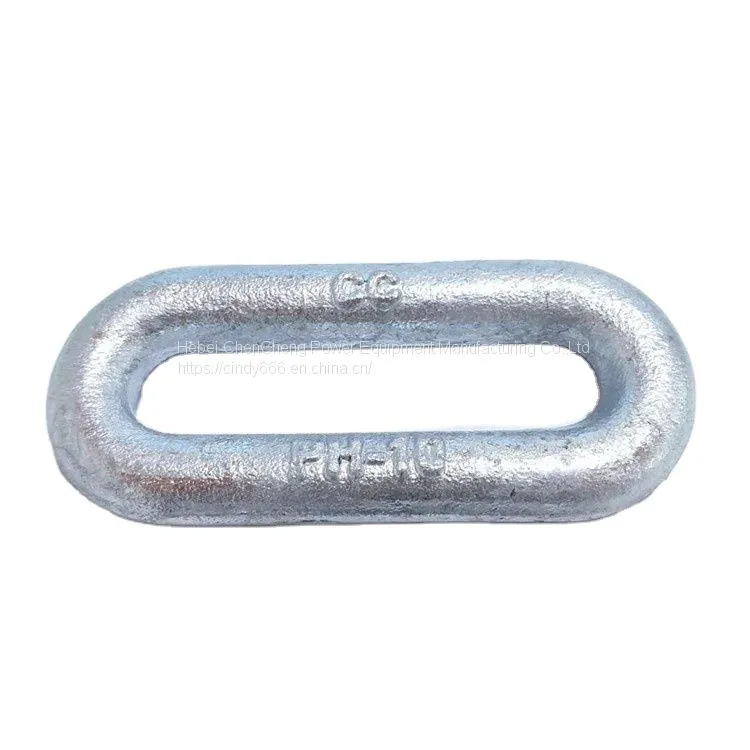

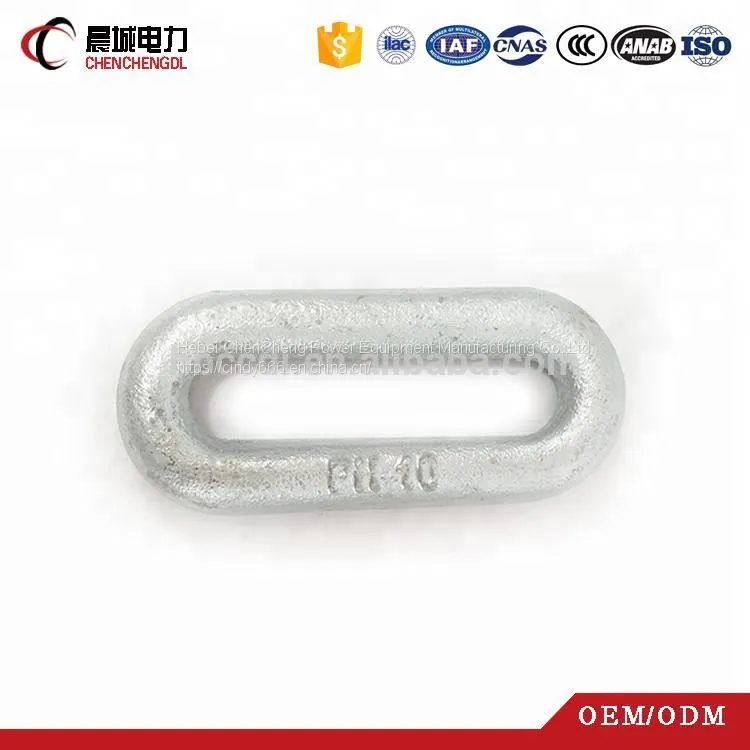

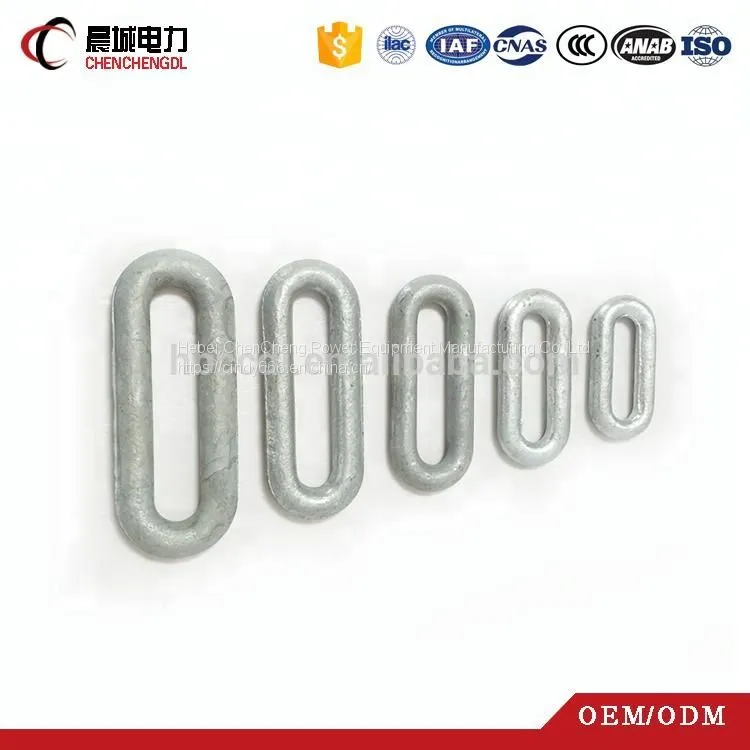

Hot-dipped galvanized PH series extension ring for electric power fitting
Description :
Catalog No | Dimensions(mm) | Rated Failure Load(kn) | Weight(kg) | ||
C | D | L | |||
PH-7 | 20 | 16 | 80 | 70 | 0.4 |
PH-10 | 22 | 18 | 100 | 100 | 0.6 |
PH-12 | 24 | 20 | 120 | 120 | 0.9 |
PH-16 | 26 | 22 | 140 | 160 | 1.5 |
PH-25 | 34 | 26 | 160 | 250 | 2.0 |
PH-30 | 38 | 30 | 180 | 300 | 3.0 |
Name | Extension Ring |
Brand Name | Chencheng |
Model | PH-7 |
Application | Power Accessories on power transmission, power Distribution, power station, etc. |
Type and Size | All products types and sizes or OEM is available |
Material | Forged/Casting carbon steel or alloy |
Finish | Zinc-plated/Hot dip Galvanized |
Color | Black/Silver white |
Quality Certificate | ISO 9001:2008 |
Hot Sale Region | Southeast Asia, Middle East, Africa, South America and North America |
FAQ:
1. Q: Are you a factory?
A: Yes, we are professional factory with aera more than 25000m2.
2. Q: Where are you located in?
A: Our factory located in Yongnian of China as the famous “Capital of Electric”
3. Q: Can we visit your factory?
A: Sure, welcome to visit our factory and our production line.
4. Q: Can we have samples?
A: Sure, we can provide sample for your evaluation.
We see the high quality and the credit as our life, and always keeping our quality principle “ Quality Priority, Quality Management Standards, Customer Satisfaction, Brand Oriented”.
