FPA301-20W 5MHz Function Generator Amplifier Arbitrary Waveform Signal Amplifier Power Amp

FPA301-20W 5MHz Function Generator Amplifier Arbitrary Waveform Signal Amplifier Power Amp

Description:
FPA301 series DC power amplifier uses imported integrated devices, full-band amplification: sine wave, square wave, pulse wave, sawtooth wave, reverse sawtooth wave, triangle wave, electrocardiogram wave, saddle wave and noise wave, etc. The signal amplitude is 28Vpp (plus or minus 14V).

Features:
- Low distortion and high precision signal amplification, compatible with all DDS signal sources
- The maximum output signal amplitude is 28Vpp (±14V)

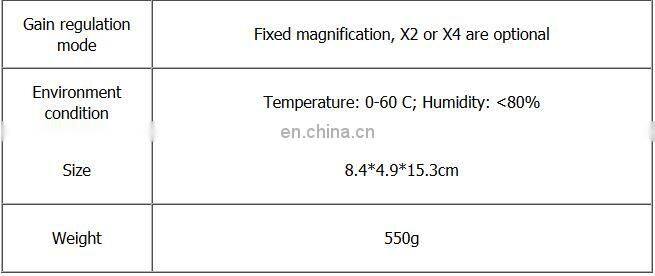

- Magnification X2 and X4 are optional
- ≥500V / us slew rate
- Single DC15V power supply
- Input impedance: 10KΩ
- Exquisite aluminum alloy shell for strong heat dissipation, stable and reliable performance
- Amplifiable signal: function signal and arbitrary waveform signal
- Small size make it easy to carry. Powered by single power supply. Convenient for outdoor use.
- Compatible with all function and arbitrary waveform signal generators


Applications:
- Electronic test and design
- Sensor simulation and test
- Power devices and circuit drivers
- Ultrasonic transducer drive
- IF driver
- Medical beauty equipment driver
- Screening and testing of piezoelectric components
- Electronic training room experimental bench
- Education and training
- Signal amplification of wireless remote sensing and detection equipment

Package Included:
- 1 x Power Amplifier
- 1 x Power Supply
- 1 x BNC-BNC Cable
- 1 x Q9 Clip Cable
- 1 x User Manual (PDF)
