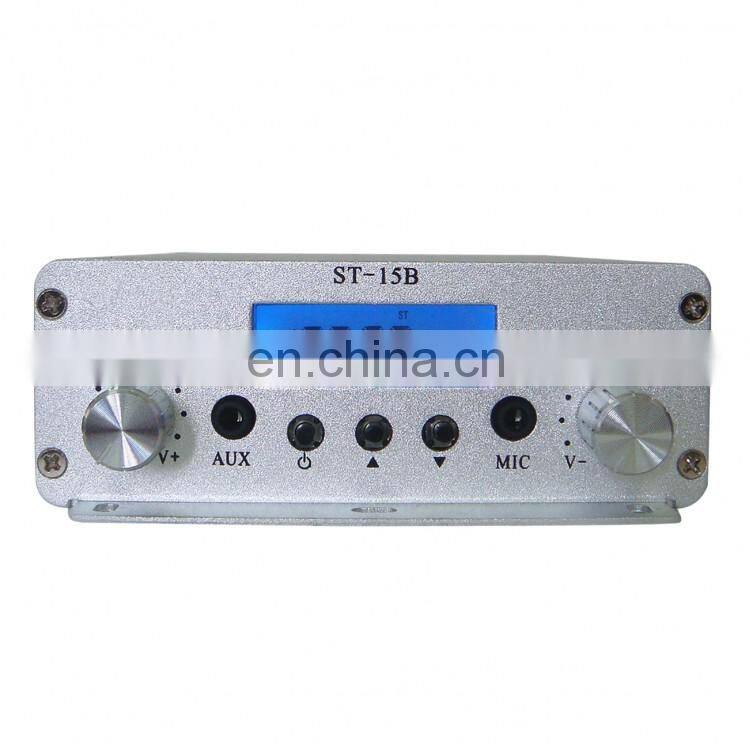

ST-15B 76MHz-113MHz 15W Stereo PLL FM Radio Broadcast Transmitter Station
- T/T Credit Card
You May Like
-
ST-15B 76MHz-108MHz15W Stereo PLL FM Radio Broadcast Transmitter Station
-
1MHz-6GHz HackRF One SDR Platform With Shell + PortaPack H2 3.2\" Touch Screen 0.5PPM TCXO Clock
-
1MHz-6GHz HackRF One WIth Shell Crystal Oscillator + PortaPack H2 3.2\" Touch Screen 0.5PPM TCXO Clock
-
ADS-B Antenna 1030MHz Active Receiving Antenna for Radio Frequency
-
250W 20A 100V Adjustable Constant Current Discharge Board Resistor Electronic Load Module
-
1090MHz Passive Software Radio SDR Narrowband BPF ADS-B Band Pass Filter
Product Description
ST-15B 76MHz-113MHz 15W Stereo PLL FM Radio Broadcast Transmitter Station
Specification:
Power supply voltage: 12V/5A
Frequency range: 76-113MHz
Frequency step value: 100KHz
Frequency stabilization method: PLL phase-locked loop frequency synthesis
Frequency stability: ±10ppm (-10℃~+60℃)
Modulation frequency deviation: ≤±75kHz (100%)
Working method: continuous work
RF output impedance/power: 50 ohms/15W
Reference distance: 2km~10km (open area)
Size: length 180mm, width 120mm, height 45mm
Net weight: 0.6kg
Antenna interface: BNC , TNC for optional, when you purchasing ,please let us know.
Features:
1. The working frequency can be set at will, and the frequency range can be changed according to customer requirements (such as 75-85MHz preset before the factory).
2. LCD display, blue background light.
3. Audio input (audio+mic), two channels input volume can be adjusted.
4. Automatically save the working frequency, it will automatically jump to the last working frequency when starting up.
5. PLL professional phase-locked loop, frequency is 100% without drift.
Package List:
1 x FM Broadcast Transmitter
Note: Power and antenna are not included.

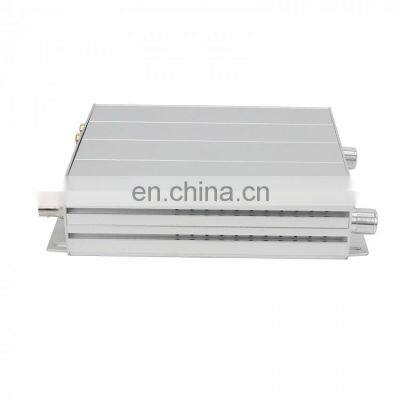

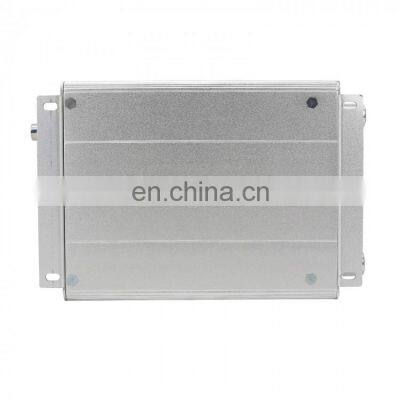

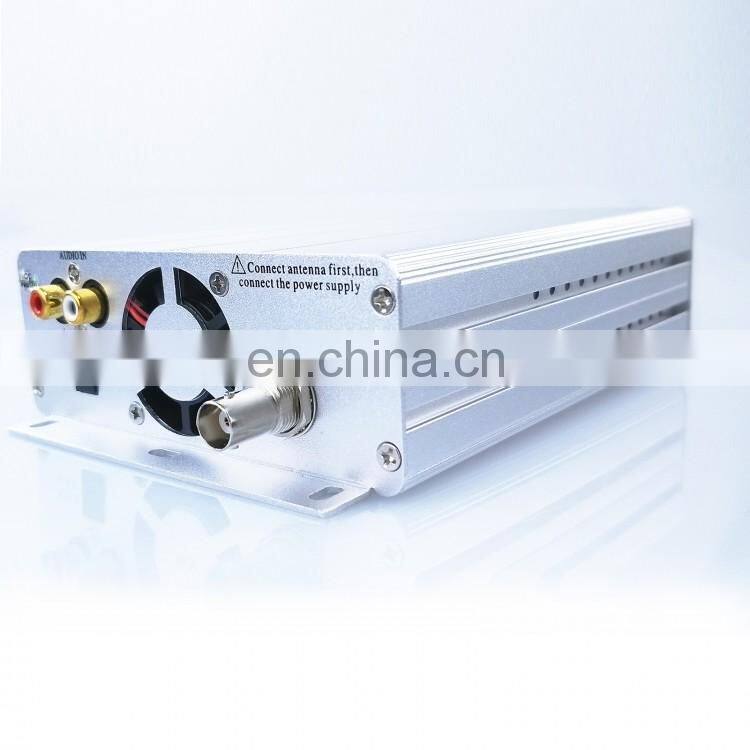

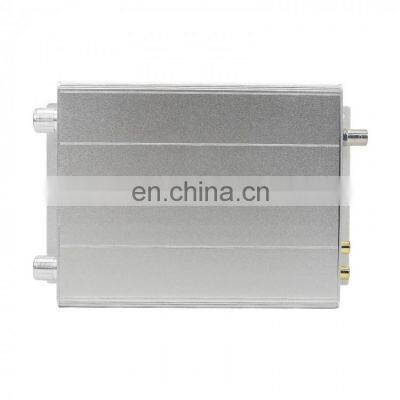

Detail photo
