35M-4400M Simple Handheld Spectrum Analyzer With 4.3" TFT Color LCD Display

35M-4400M Simple Handheld Spectrum Analyzer with 4.3" TFT Color LCD Display

Features:
- STM32f407 MCU (main frequency 168M) + 4.3 inch TFT color LCD screen (480 * 800) .
- All aluminum alloy shell + rotary encoder control.
- USB power supply, full English display.
- Spectrum display range: 35M-4400Mhz; Input impedance: 50 ohms.
- RBW: 5 Gears (10khz, 50khz, 100khz, 200khz, 500khz) can be adjusted.
- Screen scanning points: 700 points.
- Scanning Span: 7M (10Khz), 35M (50khz), 70M (100Khz), 140M (200Khz), 350M (500Khz).
- dBm Range: -80dB to 10dB (Calibration amplitude can be manually adjusted). There is no amplifier circuit inside the unit. If you need to measure small signals, you need an external amplifier.
- Maximum access signal: 10dB.
- Working mode: Super heterodyne scanning spectrum analyzer, single scanning time is 800ms.
- It is powered by USB power supply by default.
- Weight: 200g.
- Applications: For walkie-talkie, toy remote control and 2.4G wifi.

Attention:
This product uses the local oscillator signal and the external test signal to mix to obtain the difference frequency signal, and calculates the external test signal amplitude through the detector. Local oscillator signal and external test signal are mixed to obtain difference frequency signal. This product calculates the external test signal amplitude through detector. High-precision VCO signal source can measure the heterodyne signal frequency very accurately. Due to 35M-4400M scanning range, there is no dedicated detection circuit for the external test signal, there may be errors in the measurement amplitude, so the product adds two parameters of magnification and displacement. Users can adjust displayed waveform by themselves, and adjust and calibrate displayed amplitude.

Package Included:
- 1 x 35M-4400M Spectrum Analyzer

Note: Battery is not included in the package.

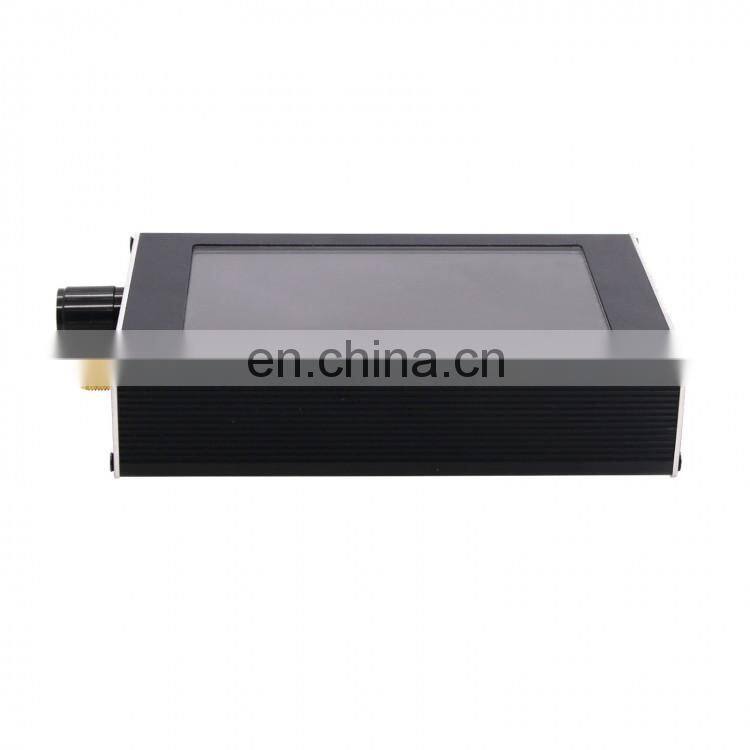

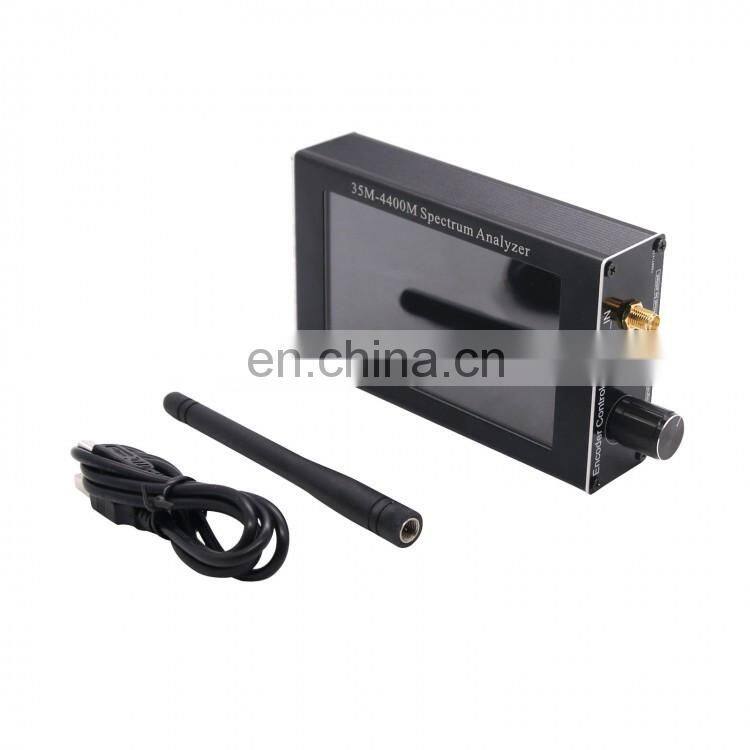

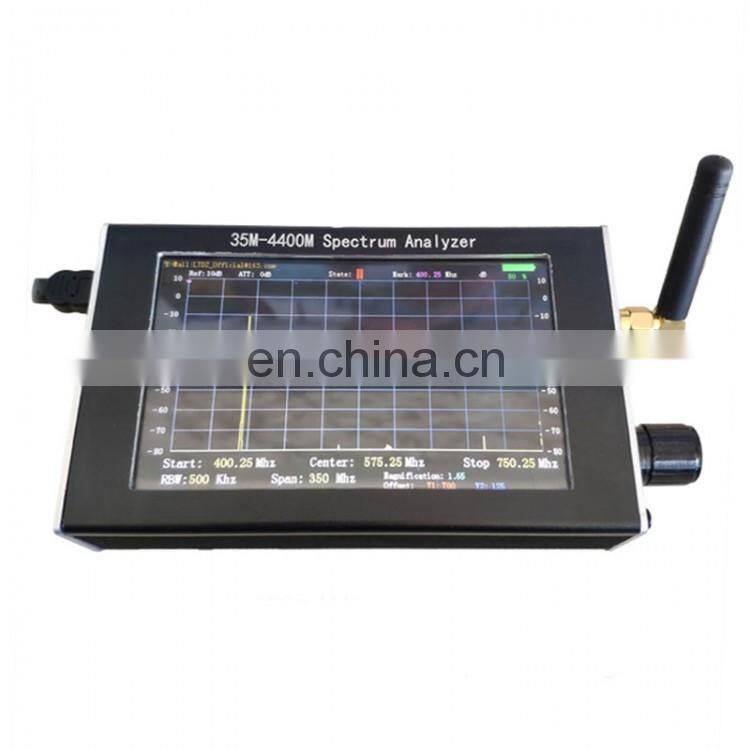

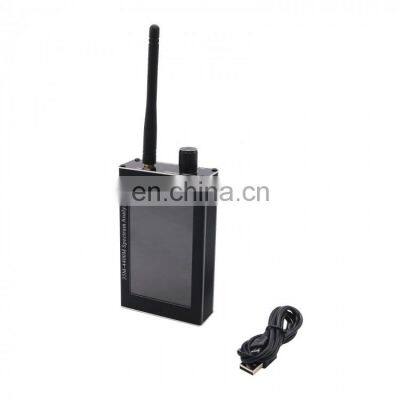

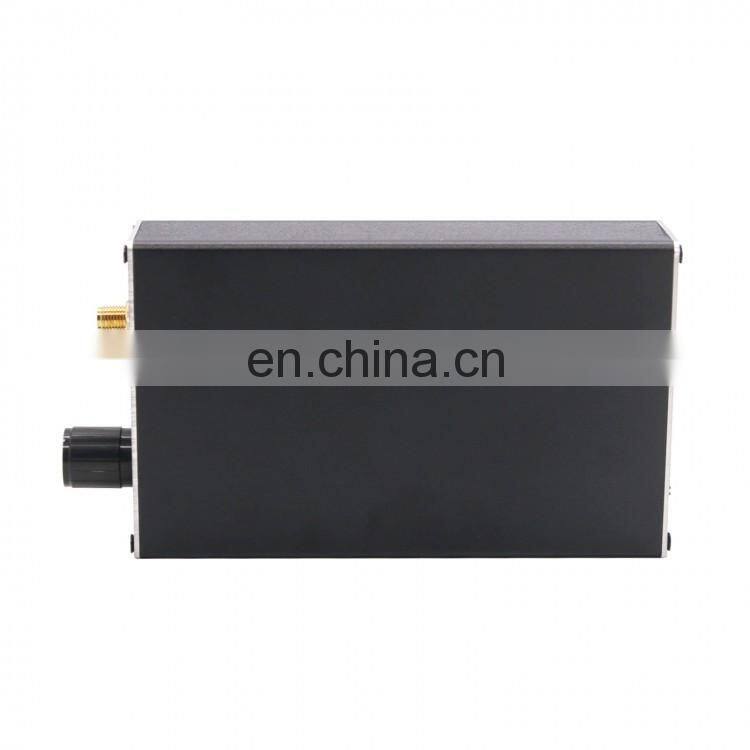

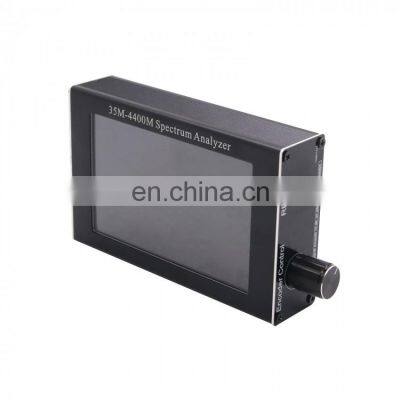

Detail photo
