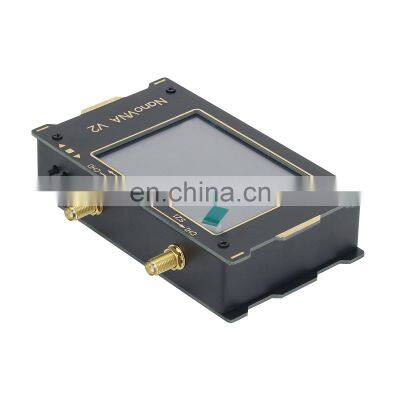

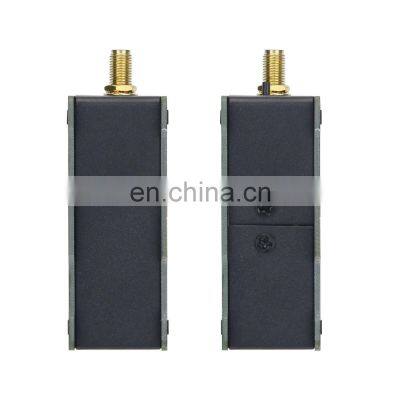

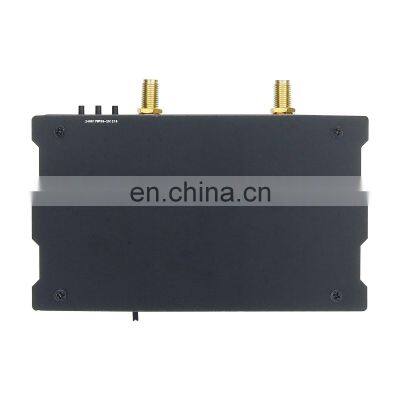

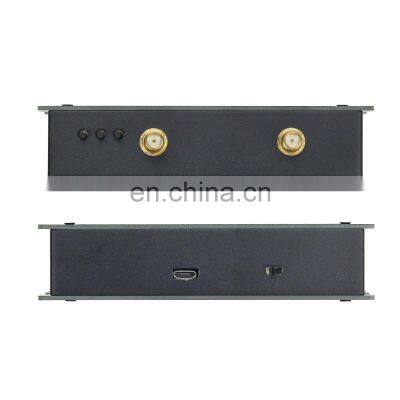

NanoVNA V2 Vector 50KHz-3GHz Network Analyzer Antenna Analyzer with 3.2" TFT Display
Description:
The second-generation NanoVNA vector network analyzer is based on S-A-A-2 design for OwOComm, and its performance is greatly upgraded.
It can test the standing wave and impedance of antenna, and can also debug insertion loss, isolation, and standing wave of duplexer and filter. It can also test attenuation, shortening factor, and phase of cable. It can also test the amplification of antenna amplifier. And this power analyzer is designed with frequency meter function.
Specifications:
- Measuring frequency range: 50KHz-3GHz
- System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (to 3GHz)
- S11 background noise (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
- Scan rate: 100 points/second
- Number of scanning points (on device screen): adjustable, maximum 201 points
- Number of calibration points (maximum number of USB scanning points): 1024 points (when connected to a computer and using a host computer)
- Power supply: USB, 400mA
- RF port: SMA (not RP-SMA)
- USB interface: Micro USB
- Display screen: 3.2 inch TFT (320 x 480)
- Net weight: 320g
- Port 2 return loss: >= 13dB (to 3GHz), 20dB (to 1.5GHz)
- Display tracking: 4, mark: 4, save settings: 5
- Computer software compatible: For Linux, Windows (7+)
- Support direct operation via host computer
Package Included:
- 1 x Set of Vector Network Analyzer
Note: Other items pictured are not included in the package.
Video of Operation Method: /preview_article/?pgc_id=6837647549185131011
Test Video of the Vector Network Analyzer as A Frequency Meter: /preview_article/?pgc_id=6837655050215490055

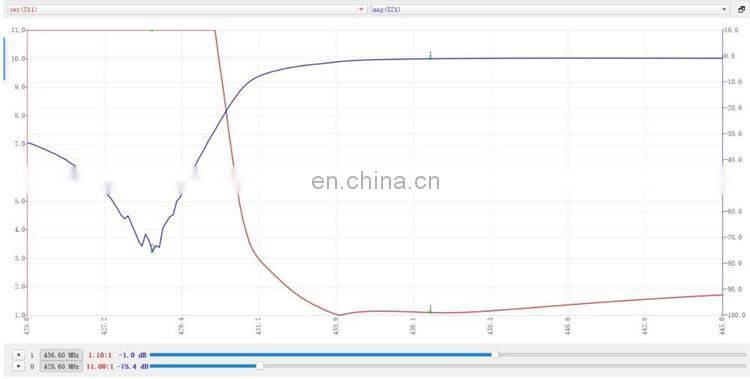

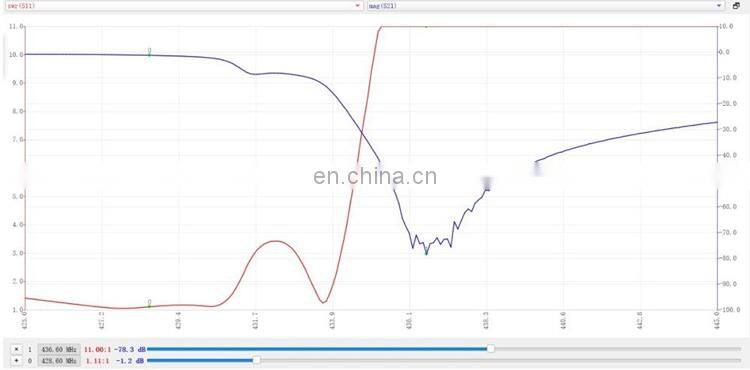

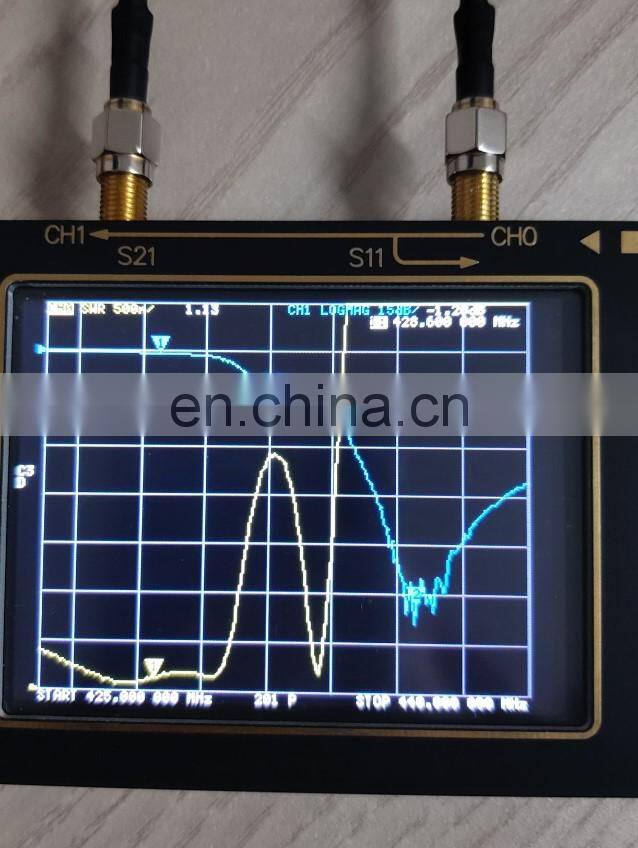

Video of Using the Analyzer to Debug Duplexer: /preview_article/?pgc_id=6837669281535099400

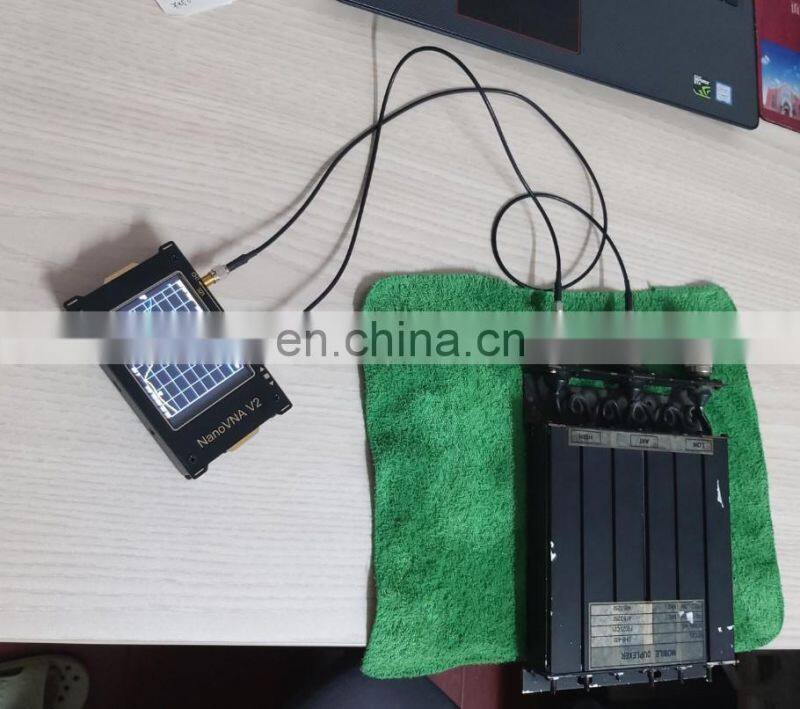

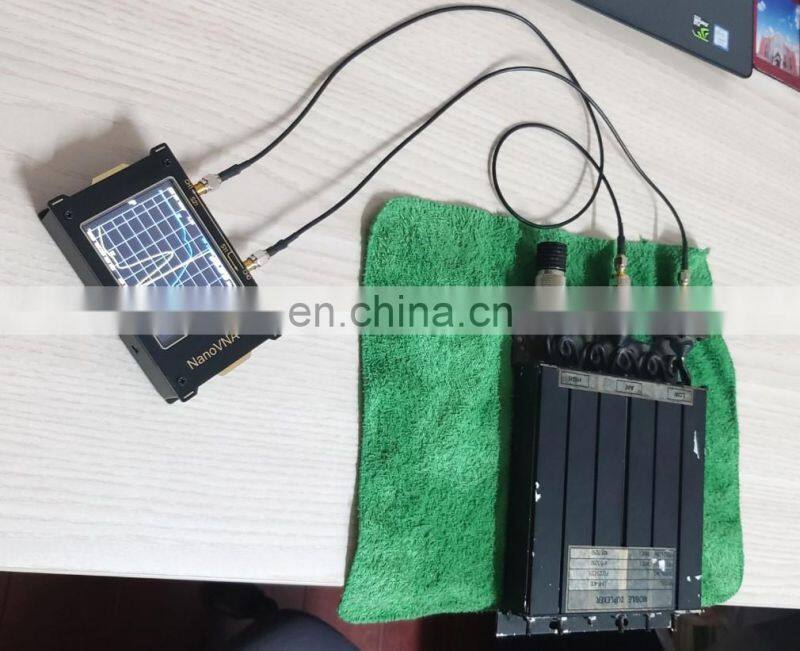

Connection Method for Debugging Duplexer:
