OMT004 100PPR 5V 7Axis MPG CNC Handwheel With Emergency Stop Button Universal Type

OMT004 100PPR 5V 7Axis MPG CNC Handwheel with Emergency Stop Button Universal Type

Features:
- 7-Axis MPG manual pulse generator
- Comes with emergency stop button
- Voltage 5V 100PPR, Output Phases A A- B B-: It fits for 98% of Chinese systems
- Its switch is provided by well-known producers
- Light weight and metal panel
- Elegant appearance and fine workmanship
- Perfect for manual pulse input such as NC line board, CNC machines, zero correction and division of printing machinery

Technical Parameters:
Electrical Parameters:
- Output Waveform: Square Wave
- Output Phase: AB Phases
- Current Consumption: ≤100mA
- Response Frequency: 0 to 20KHz
- Duty Ratio: 0.5T±0.1T
- Phase Difference: 90°±45°
- Power Supply Voltage: DC 5V
- Output Voltage: High Level ≥ 85%Vcc, Low Level ≤ 0.3V
- Number of Pulses: 100 PPR

Mechanical Specifications:
- Position Signal: 2 Kinds
- Max. Speed: 500rpm
- Starting Torque: 2 x 10 -2 to 6 x 10-2 Nm (+25℃)
- Shock Resistance: 980m/s2, 6ms, twice in X Y Z directions
- Anti-Vibration: 50m/s2, 10 to 200Hz, 2h for X Y Z directions separately
- Life Span: MTBF ≥ 10000hg (+25℃, 2000rpm)
- Weight: approx. 640g

Environmental Specifications:
- Operating Humidity: 30% to 85% (Without condensation)
- Storage Temperature: -30℃ to 85℃
- Operating Temperature: -10℃ to 70℃
- Protection: Waterproof, Oil-proof, Dust-proof IP54

Package Included:
- 1 x Manual Pulse Generator w/ 1.6m Spring Cable

Note: Please not that this MPG comes with emergency stop button.

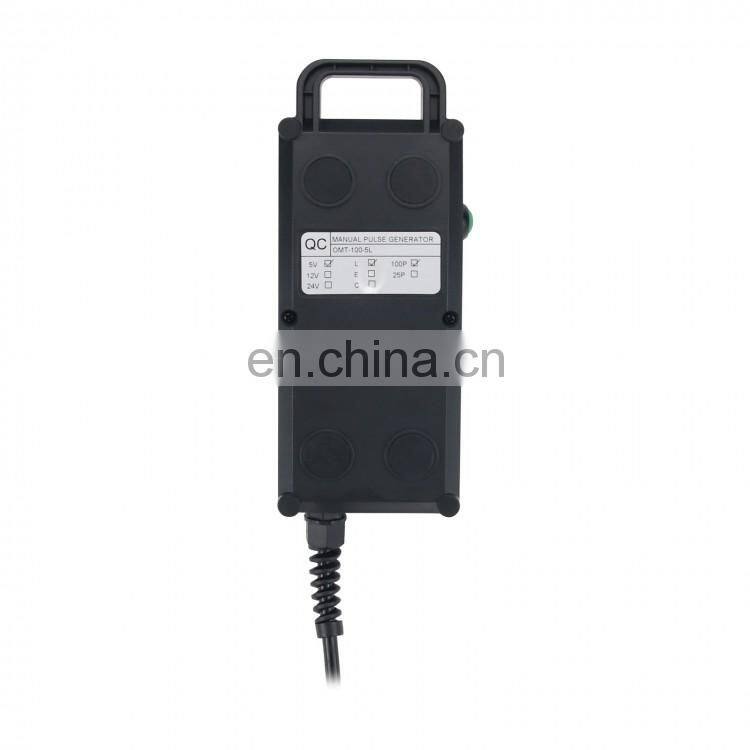

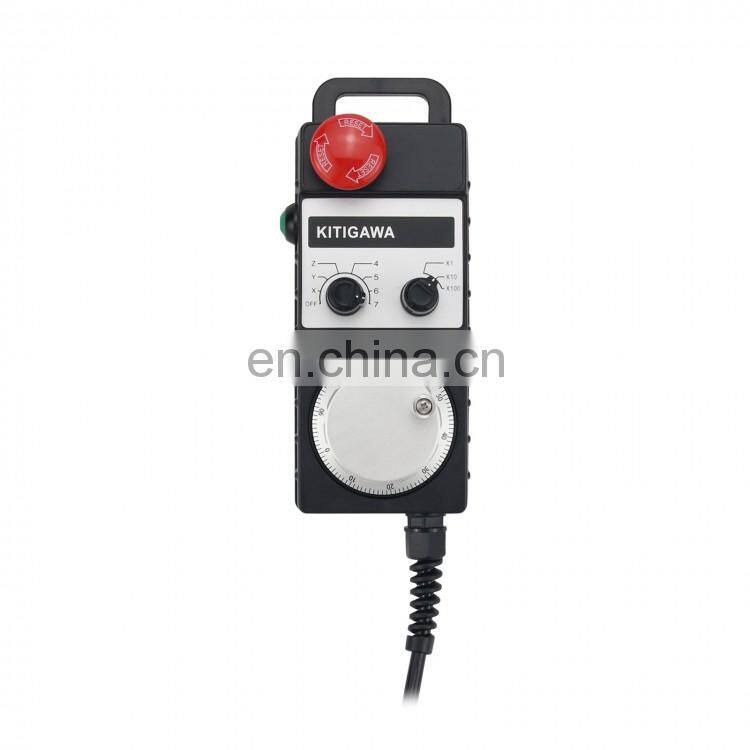

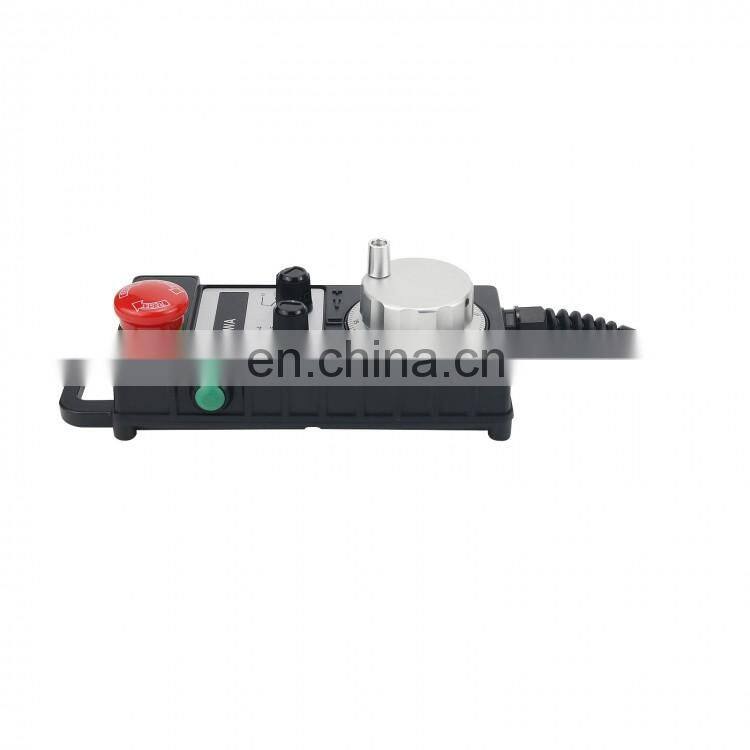

Detail photo
