homemade match sewing or stand allone pc based cnc controller retrofit kit for 3 axis milling machines
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High performance similar as adtech cnc 5 axis CNC controller for milling and lathe center
-
China Accurate 5 Axis Lathe CNC Controller NEW1000TDca origin integrated controller for cnc machine
-
cnc computer numerical control controller 3 axis for granding and cutting 4 axis cnc controller with encoder for bending machine
-
cnc router control panel cnc 4 ejes cnc milling controller motion control system lnc 4 axis for milling maching or retrofit late
-
Stable and easy-operation brand NEWKer 5 axis cnc controller for handle mpg cnc kit used cnc lathe machine router
-
Best price 2 axis complete kit board controller match cnc stepper driver and motor for cnc machine
Product Description
Poster
Product

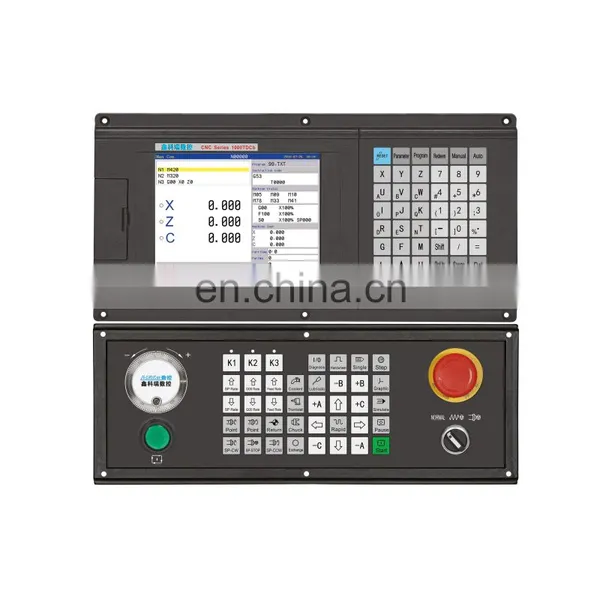

Product detail:High-performance type Economical 3 Axis CNC DSP Console for CNC Lathe Machinery
Subpanel
Parameter details | ||||||
System Function | G code shows | |||||
Number of control axis | 2~8(X,Z,C,A,B,Y,Xs,Ys) | Locate rapidly: | G00 | |||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | |||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | |||
The highest speed: | 60m/min | Thread cut: | G32 | |||
Feed speed: | 0.001~30m/min | Cycle of cutting cyliner or cone: | G90 | |||
Continuous manual: | one axis or multiple axis at the same time | Cycle of cutting end face: | G94 | |||
Line interpolation: | Straight line, arc, screw thread interpolation | cycle of cutting thread | G92 | |||
Cutter compensation: | Length of the compansation、radius nose of tool compensation | Fixed cycle of tapping | G93 | |||
Cutter compensation input: | Try to cut measuring input mode | Cycle of rough cut in excircle | G71 | |||
Spindle function: | gear、Double analog control、Rigid tapping | Cycle of rough cut at end face: | G72 | |||
Handwheel function: | panel、handheld | Cycle of closed cut | G73 | |||
handwheel processing: | The handwheel processing function | Cycle of drill deep hole at end face | G74 | |||
Screen protection: | The screen protection function | Cycle of cutting groove with external diameter | G75 | |||
Tool rest function: | Row tool rest、Electric too post 99 knife | Cycle of cutting compound thread | G76 | |||
Communication function: | RS232、USB interface | Cycle of program | G22,G800 | |||
Compensation function: | Tool compansation、Space compensation、Screw pitch compensation、Radius compensation | Local coordinate system: | G52 | |||
Edit program: | Metric/Imperial、Straight thread、taper thread and so on | Detect the instruction of skip | G31,G311 | |||
Limit position function | soft limit, hard limit | Pole coordinate | G15,G16 | |||
thread function | metric and inch format, straight thread, taper thread and so on | Metrical/Imperial programme: | G20,G21 | |||
Preread function: | Preread 10,000 short straight lines | Set coordinate, offset | G184,G185 | |||
Password protection: | Multilevel password protection | Workpiece coordinate system: | G54~G59 | |||
Input/output: | I/O 56*24 | Tool radius C | G40,G41,G42 | |||
PLC programme: | All open PLC design | Accurate locating/continuous path process: | G60/G64 | |||
Acceleration and deceleration control: | Straight line、Index | Constant linear cutting: | G96/G97 | |||
Number of encoder: | any setting | Feeding mode: | G98,G99 | |||
User macro program: | Have | Backing to start point of program: | G26 | |||
Electrical gear function: | Have | Backing to the fixed point: | G25,G61,G60 | |||
Subpanel | A type with handwheel; B type with band switch; C type with both A and B, E type | Backing to the datum point: | G28 | |||
Application: | Lathe, special machine | Suspend: | G04 | |||
Macro Program: | G65,G66,G67 | |||||
Auxiliary function: | S、M、T | |||||
Function advantages
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
