Plastic Seedling Tray Blister Forming Machine / Seed Tray Blister Making Machine
- T/T Credit Card
You May Like
-
Hottest Sale !!! Farm Power Tiller Cultivator
-
OrangeMech High Quality Drinking RO Water Filter System / Ozone RO Water Purifier / UV RO Water Filter
-
Factory Sale Baby Diapers Baby Diaper Making Machine Price Sanitary Napkin Pads Making Machine Diaper Manufacturing Machine
-
Commercial Water Bath Honey Pasteurization Machine / Batch Pasteurizer
-
Factory Price Professional Factory Cotton Candy Floss Marshmallow Machine Making Production Line
-
Automatic Pastry Making Machine Hamburger Bun Toast Baguette Bread Production Line
Product Description
1 Computer controller:Mitsubishi (Japan)
2 Touch screen:WEINVIEW 7inch
3 Solenoid valve:CKD(Japan)
4 Heating tile:Qite (Taiwan)
5 Hydraulic valve:Yuken(Japan)
6 Temperature adjusting system:27 sets Aoyi Electronic temperature control
7 Servo motor:HAIDE
8 Motor:Yantai
9 Temperature-controlled meter:RKC(Japan)
10 Contactor:CHINT
Performance characteristics:

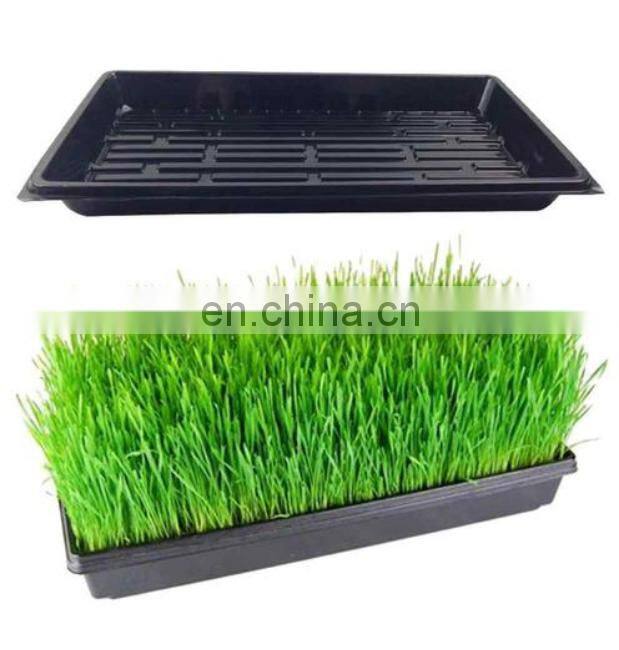

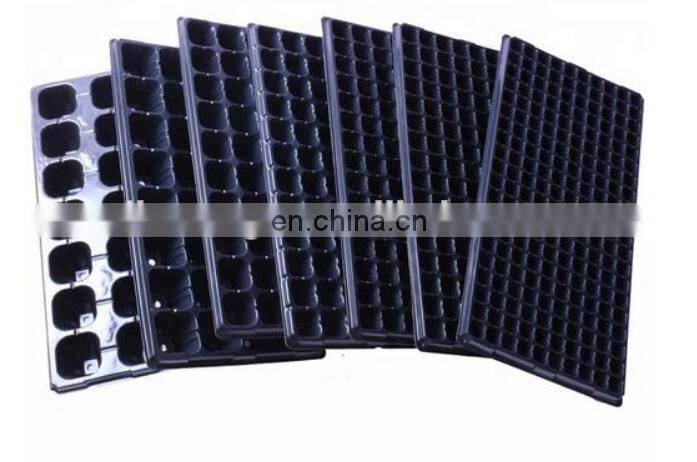

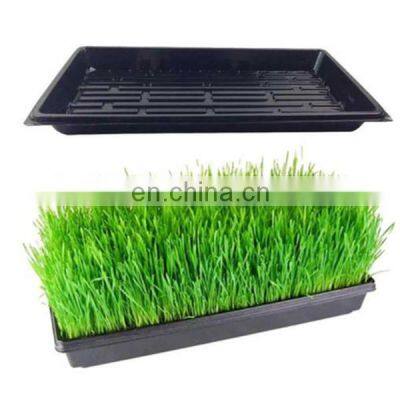

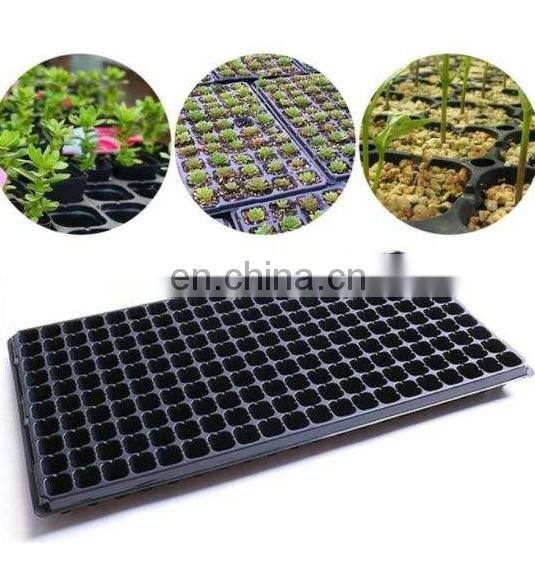

This machine is mainly used for making agricultural seeding trays,all kinds of food and tools packages.1 Feeding---Heating---Pressing---Forming---Cooling---Demould---Punching---Knife-Cut---Counter--Stacking Automatically
2 It is most advanced technology,it adopts PLC Touch screen control,easy to operate.
3 It adopts servo motor feeding sheet design,with high speed,uniform and stable,high accuracy,save sheet
4 Special radiation tile design for seeding tray,every tile’s temperature can be adjusted solely,energy conservation.improving
product quality
5 Upper and lower die all adopt oil cylinder control,the two cylinders can be synchronous and independent,fast and stable
pressing,improve work efficiency
6 High-wearing resistance aluminum alloy guide rail,water cooling for whole guide rail,improve products quality
8 We can change the function according to client’s requests
Model | OR-FS-YP5428 |
Applicable Material | PET,PS,PVC, PE,PP |

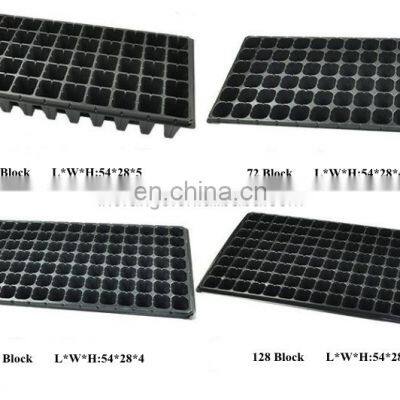

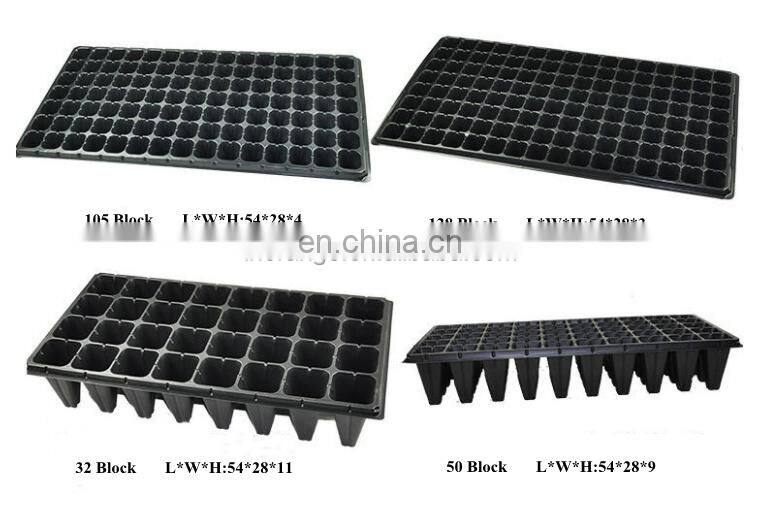

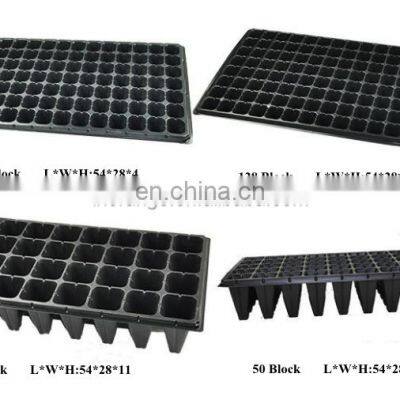

(mm) Dimension | Available for 540x280 standard seeding trayThickness: 0.1-1.2 |
(mm) Feeding length | Infinite adjustment |
(mm) Max. Forming depth | 70 |
Work efficiency | 20-30 |
Total Power | 25kw |
(mm) Outlook dimension | 8000×1000×2000 |
Weight | 2500 |
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
How to contact us?
Email: sales01@orangecoltd.com
Whatsapp: +86-15939582629
