Automatic Cereal Energy Protein Bar Production Line Making Machine Other Food Processing Machinery

Product description:

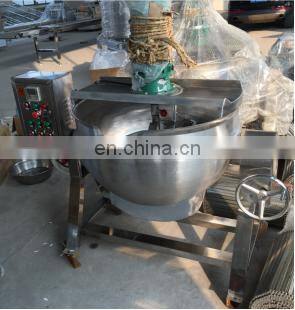

1. Sugar boiler(200L)

Characters:

Has large heating area, high thermal efficiency, even heating, liquid material boiling, time is short, easy to control the heating temperature etc..

Technical parameters:

Voltage:380V

Power:15kw

Volume:200L

Inner diameter of the boil:840mm

Outline dimension:905*990*1470mm

2. Mixer

Power:1.1kw

Voltage:380V/50HZ

Outline dimension:700*500*1200mm

Mix capacity:15KG/time

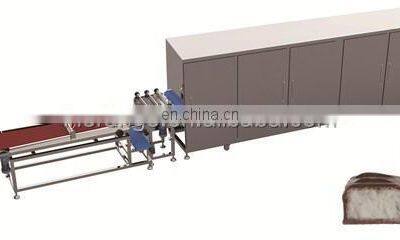

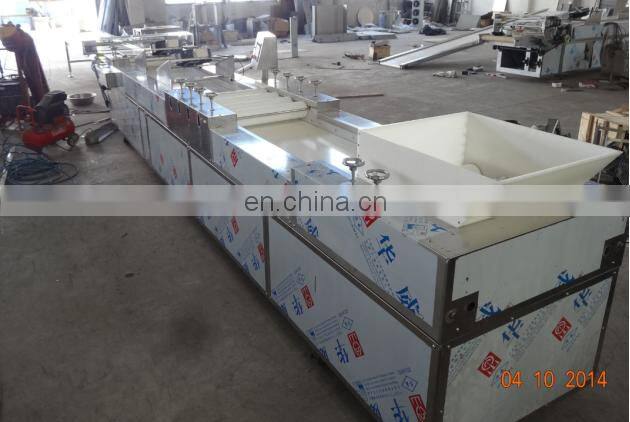

3. Conveyor, forming and cutting machine

This machine are suitable for flatting and cutting the peanut bar.Easy to operation.

Characters:

1.Frequency control,flatting and cutting for one time

With With multiple level structure, pressed flat, uniform thickness

2.With multiple flat structure,pressed flat,uniform thickness

3.Automatic cutting ,Time saving, labor saving, economical and convenient

Technical parameter:

Power:4kw

Voltage:380V/50Hz

Outline dimension:11800*1200*1200mm

Capacity:300kg/h

Automatic cutting ,Time saving, labor saving, economical and convenient

If you need to change another width size, only change the cutter shaft is sufficient.

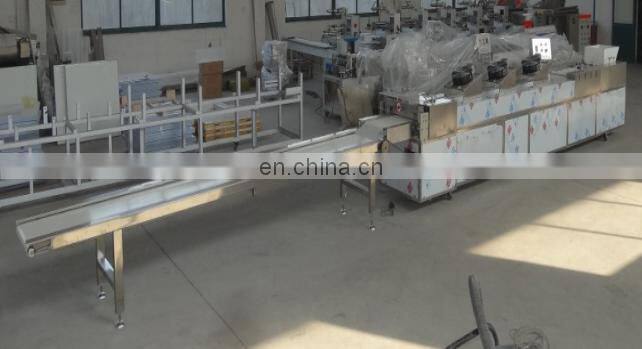

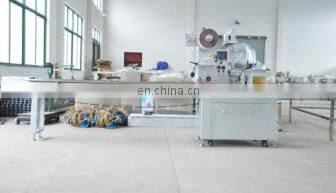

4.package machine

voltage:220V

power:2.5kw

packing speed:50-300pcs/min

Packing length:50-300mm

Packing width:50-310mm

Packing height :5-60mm

size:3800*780*1500mm

Samples for reference:

Packing:

Shipping

1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.

2.Orange provide shipping method:Courier service,Air transport,Sea Transport

3.Can accept order:Full container cargo load,Less container load

4.Delivery term :EXW,FOB,CIF,CNF,Door to Door etc.

We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
