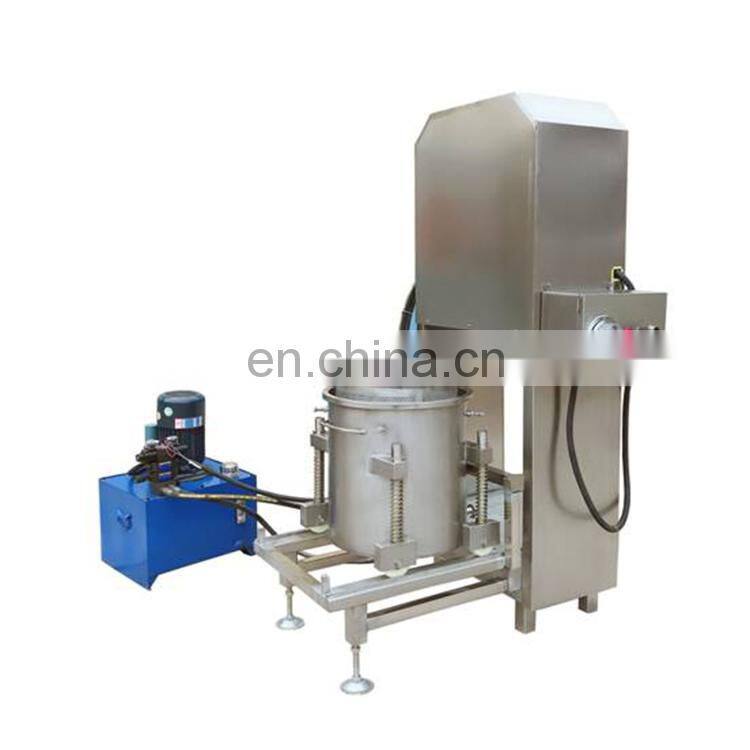

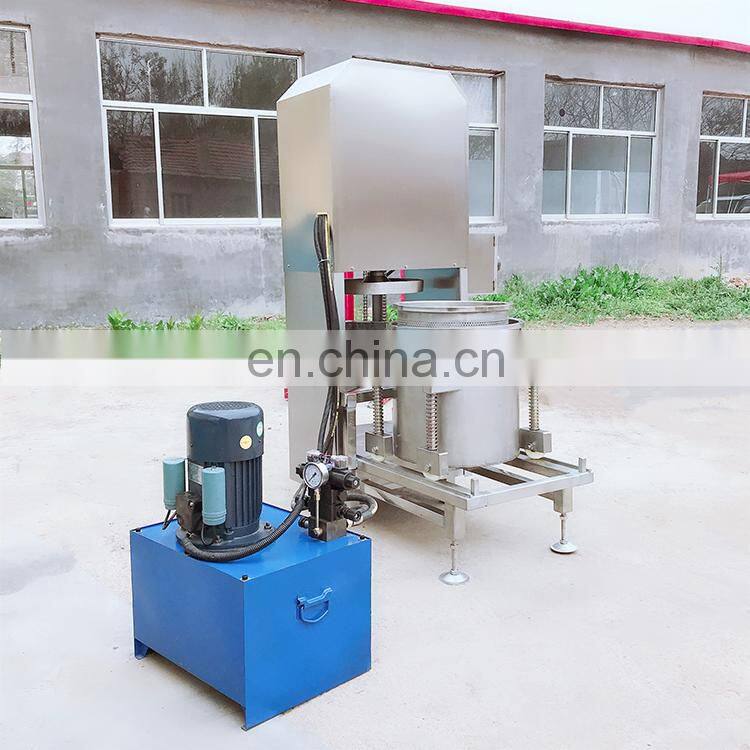

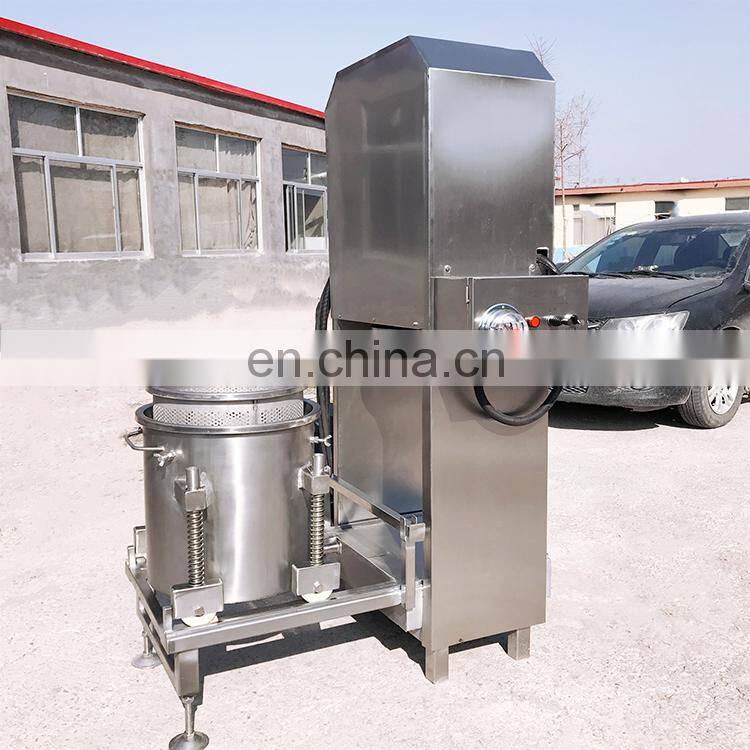

OrangeMech Commercial cold ginger press Machine , ginger Juicer hydraulic press machine , commercial hydraulic cold press juice machine
- 1000 per Month
- T/T Credit Card
- peanut brittle sesame bar muesli bar cereal bar molding machine
- Snack machinery cereal bar cutting machine
- Fully automatic energy protein cereal bar making machine
- Hot sale Peanut Energy Bar / Cereal Bar Making Machine with Square and Cube Shape
- Fully automatic Reliable Cereal Bar Forming Machine Cereal Production
- OrangeMech Hot sale peanut brittle sesame bar muesli bar Protein Bar Making Machine
Product Description
Performance characteristics:

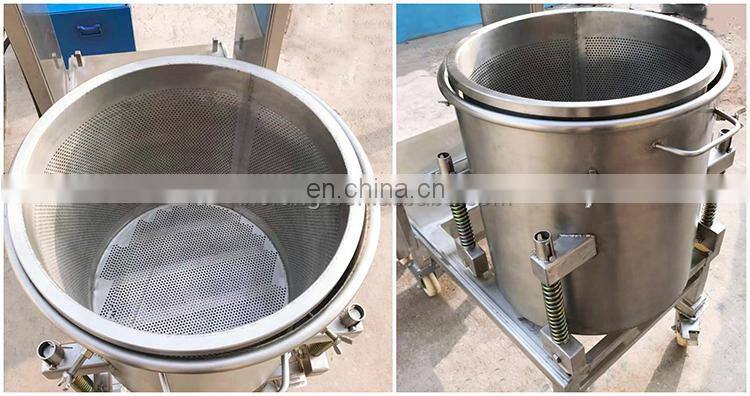

2. The inner barrel of the press has a diameter of 400mm, a height of 500mm and a plate thickness of 4mm. The outer barrel has a
diameter of 460 mm, a height of 500 mm, and a plate thickness of 3 mm. All are made of 304 stainless steel.
3,The outer diameter of the cylinder is 190mm, the inner diameter is 160mm.
The piston rod is 110mm. The stroke is 520mm.
4. There are four pulleys under the press barrel to facilitate pushing the barrel into the push.
5.The press disc diameter 375mm, thickness 20mm 304 stainless steel, durable and not deformed.
6. The press chassis and frame are 100, 80 304 channel steel, durable, never rust.
The 10 cm higher than the bottom of the inner barrel and the outer barrel is also fixed with 304 channel steel.
Model | Size of barrel(mm) | Pressure(T) | Dimension(mm) | Power(KW) | Remarks |
50L | φ400x500 | 30 | 1200x642x1760 | 2.2 | Single barrel |
100L | φ500x500 | 30 | 1300x736x1760 | 2.2 | Single barrel |
100L | φ500x500 | 30 | 2000X736X1760 | 2.2 | Double barrel |
150L | φ550x600 | 30 | 1800x786x2010 | 3 | Single barrel |
150L | φ550x600 | 30 | 3000x786x2010 | 3 | Double barrel |
200L | φ600x700 | 50 | 1850x886x2210 | 4 | Single barrel |
200L | φ600x700 | 50 | 3150x886x2210 | 4 | Double barrel |
300L | φ700x750 | 50 | 1900x942x2310 | 4 | Single barrel |
300L | φ700x750 | 50 | 3250x942x2310 | 4 | Double barrel |
400L | φ800x800 | 50-500 | 2000x1000x2410 | 4-22 | Single barrel |
400L | φ800x800 | 50-500 | 3400x1000x2410 | 4-22 | Double barrel |
500L | φ850x900 | 50-500 | 2200x1042x2620 | 4-22 | Single barrel |
500L | φ850x900 | 50-500 | 3600x1042x2620 | 4-22 | Double barrel |
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
