Product Description
EM413 single phase analog kWh meter watt meter
- Single-phase metering
- complies with EN50470 and EN62053-21
- ccuracy class B/1
- Protection class II
- Direct measurement up to 100A
- Built-in shunt
- Energy consumption LED
- 6 digits electromechanical counter
- Pulse output for remote energy management
- S0 interface
- 4 DIN modules
- 35mm rail mount
Specification:
|
Voltage(v) |
230V |
|
Operational voltage |
±70%Un |
|
- Iref |
10A |
|
-Itr |
1A |
|
-Imax |
100A |
|
-Imin |
0.5A |
|
-Ist |
40mA |
|
Power consumption of current circuits(VA) |
< 0.01 |
|
Power consumption of voltage circuits(W) |
< 1.3W |
|
Display |
Six digit counter red decimal digit |
|
Max. totalising count Min .increment |
99,999.9/0.1 |
|
General data |
|
|
Frequency (Hz) |
50/60 |
|
Environment resistance to heat and fire |
Terminal 960°C Cover 650°C |
|
upper |
ABS+PC |
|
lower |
ABS+PC |
|
Pulse output |
|
|
Pulse width(ms) |
80 |
|
Pulse constant(imp/kWh) |
1600 |
|
LED constant |
1600 |
|
Width (mm) |
76 |
|
Height (mm) |
104.5 |
|
Depth (mm) |
60 |

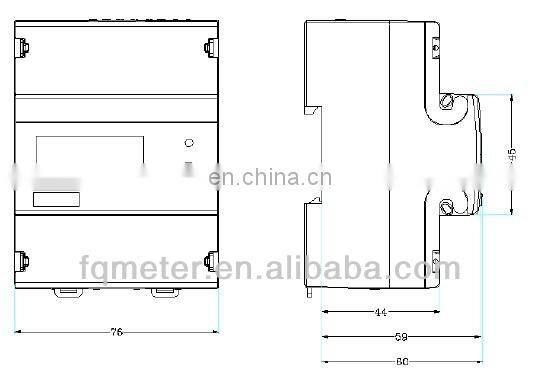

Dimensions:

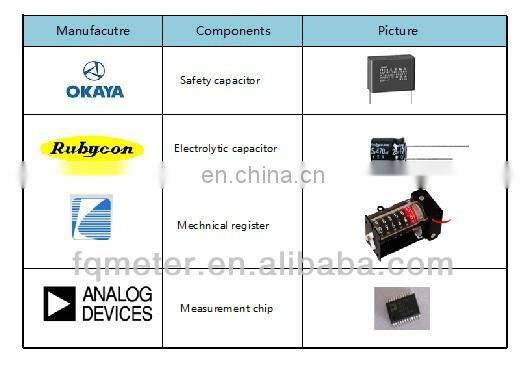

Inner components:
