2 Pulse Output Single Phase Bi-directional Induction Watt Hour Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
2 Pulse Output Led Single Phase Bi-directional Rs485 Power Meter
-
EM115-Mod MID Approved 120/230V 100A Din Rail Submeter Kwh Meter Rs485
-
High Quality Mid Single Phase Active Energy Meter
-
EM115-MOD Mid Single Phase Energy Monitor Meter
-
230V AC 50Hz/120V AC 60Hz EEprom Digital Electric Meter Hack
-
EM115-Mod 120/230V 100A Single Phase Electric Digital Kwh Energy Meter
Product Description
Product Description
2 pulse output single phase bi-directional induction watt hour meter
Main Functions and features:
- Single phase metering
- CT 60A 330mv AC input
- Standard DIN rail Format (DIN43880)
- CI.1(kWh) according to EN62053-21 .
- CI.2(kvarh) according to EN62053-23
- Energy consumption LED
- LCD display , total kWh energy and kvarh readout: 5+1 DGT
- Green backlight display
- Instantaneous variables: V, A, W, var , PF, Hz
- 2 pulse output
- Smart communication port,
- RS485&M-bus can selected
- Self power supply
- Memory back-up (EEprom)
- 18mm wideth 1 modual
Meter specification:
|
Voltage(v) |
120/ 230 |
|
Operational voltage |
(70%-130%)Un |
|
CT |
60A/0.33V |
|
Power consumption of current circuits(VA) |
< 0.01 |
|
Power consumption of voltage circuits(W) |
< 1.3W |
|
General data |
|
|
Frequency (Hz) |
50/60 |
|
Accuracy |
|
|
Current |
±0.5% |
|
Voltage |
±0.5% |
|
Frequency |
±0.1Hz |
|
Active power |
±1% |
|
Reactive power |
±2% |
|
LED |
Red led,1000imp/kWh |
|
Output specification |
|
|
Pulse duration |
≥100ms < 120msec (ON), ≥120ms (OFF) |
|
Insulation |
4000 VRMS output to measuring inputs |
|
Memory back-up |
EEprom |
|
Connections |
|
|
Cable cross-section area |
Screw-type Min 2.5mm2 Max 10mm2 Other terminals: 1.5mm2 |
|
DIN House(W×H×D) |
17.5×90×67.5 |

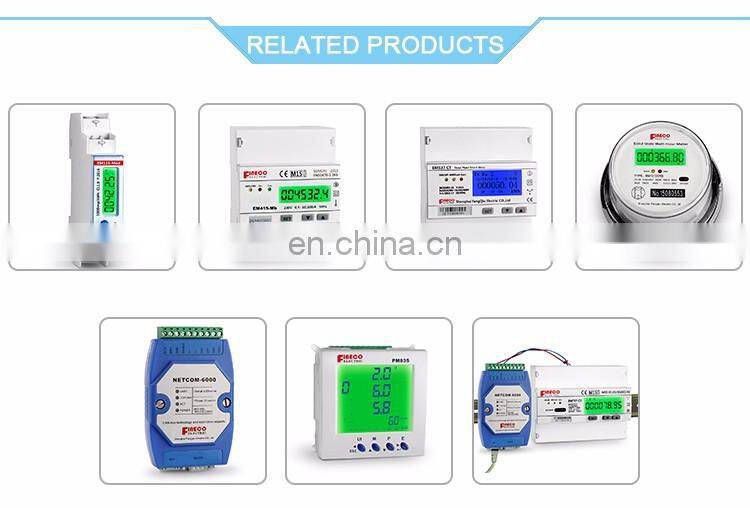

RELATED PRODUCTS
SHOW SCENES
CERTIFICATE
ABOUT US
PackingShipping
CONTACT US

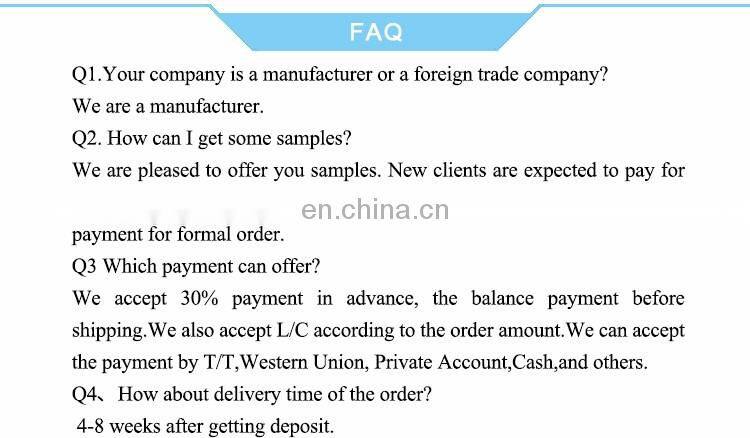

FAQ
