HYY-DC RS485 current voltage wattmeter dc energy meter

Series of DZ81-MS Single-phase Power Meters are used for measuring and monitoring the power distribution system. This series combines the measurement, the analysis and the operation together. People can check the figure of current or voltage by using the keys on the meter, which makes the information become clearer, and the operation become easier.

Function

 • Measuring real-time DC voltage, current, power, import energy, export energy

 • Cumulative energy of each month in the last 12 months independent

 • Load record storage space to ensure that the record of import power, the time of 60 minutes can record no less than 40 days of data capacity

 • 1* RS485, Modbus RTU communication protocol
• 1* programmable energy pulse output
• LCD display

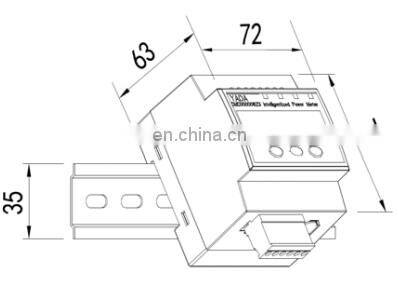

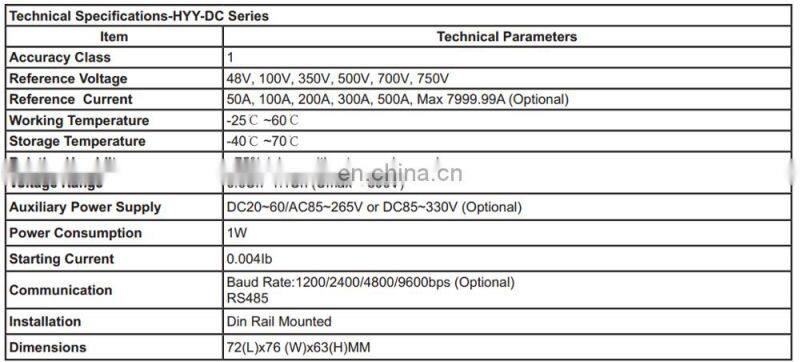

Product Parameters

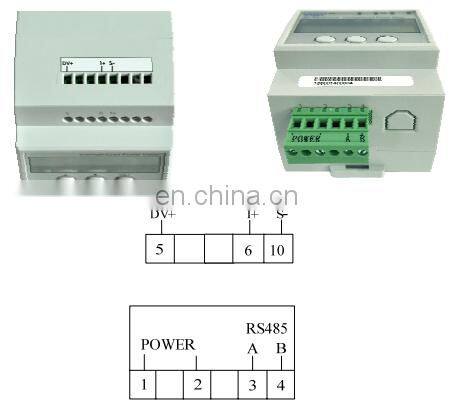

Terminal definition

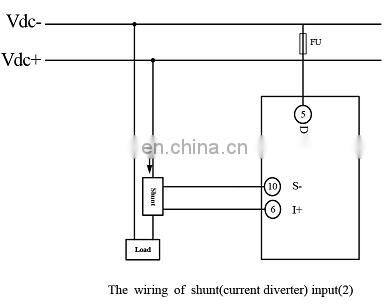

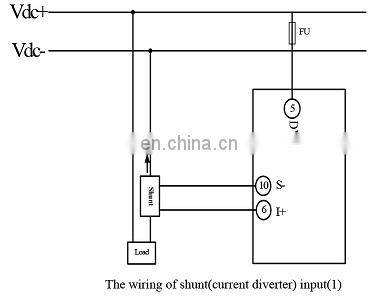

Wiring Diagram
